| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-873-4123 | Frame, Rear | 76045-77255 | |
| 2 | 416-46-11210 | Bumper | 75066-@ | |
| 3 | 01010-81225 | Bolt | 75066-@ | |
| 4 | 01643-31232 | Washer | 75066-@ |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250 6 s/n 75053 up (for north america)
- Frame and its related parts
- Rear frame, (#76045 77255)
Поиск по каталогу

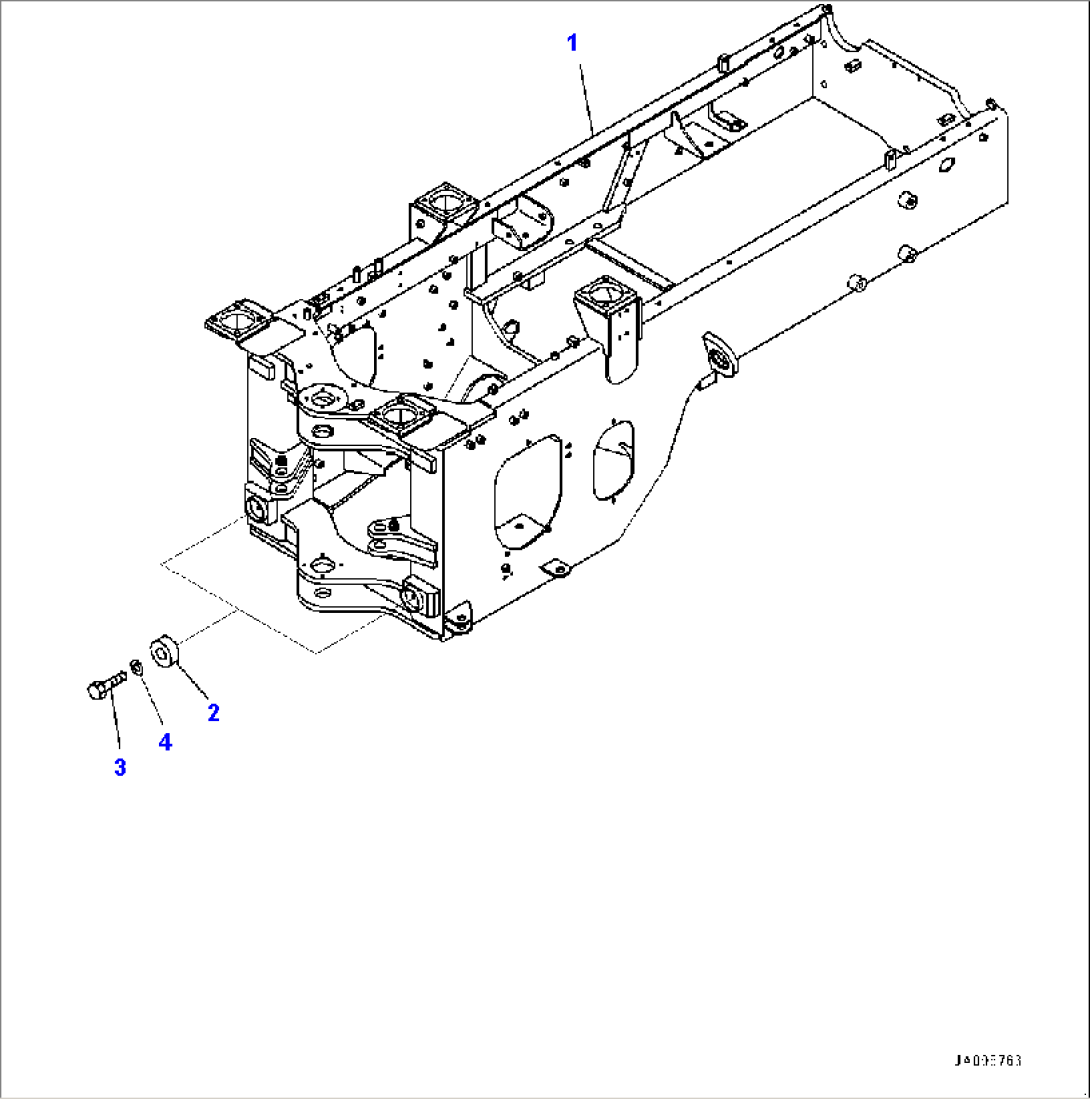

Rear Frame, (#76045-77255)
