| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-971-5132 | Frame | 81019- | |
| 1 | 418-971-5131 | Frame | 80706-81018 | |
| 1 | 418-971-5130 | Frame | 80001-80705 | |
| 2 | 416-46-11210 | Bumper | 80001- | |
| 3 | 01010-81225 | Bolt | 80001- | |
| 4 | 01643-31232 | Washer | 80001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa270 7 s/n 80001 up
- Frame and its related parts
- Rear frame (#80001 )
Поиск по каталогу

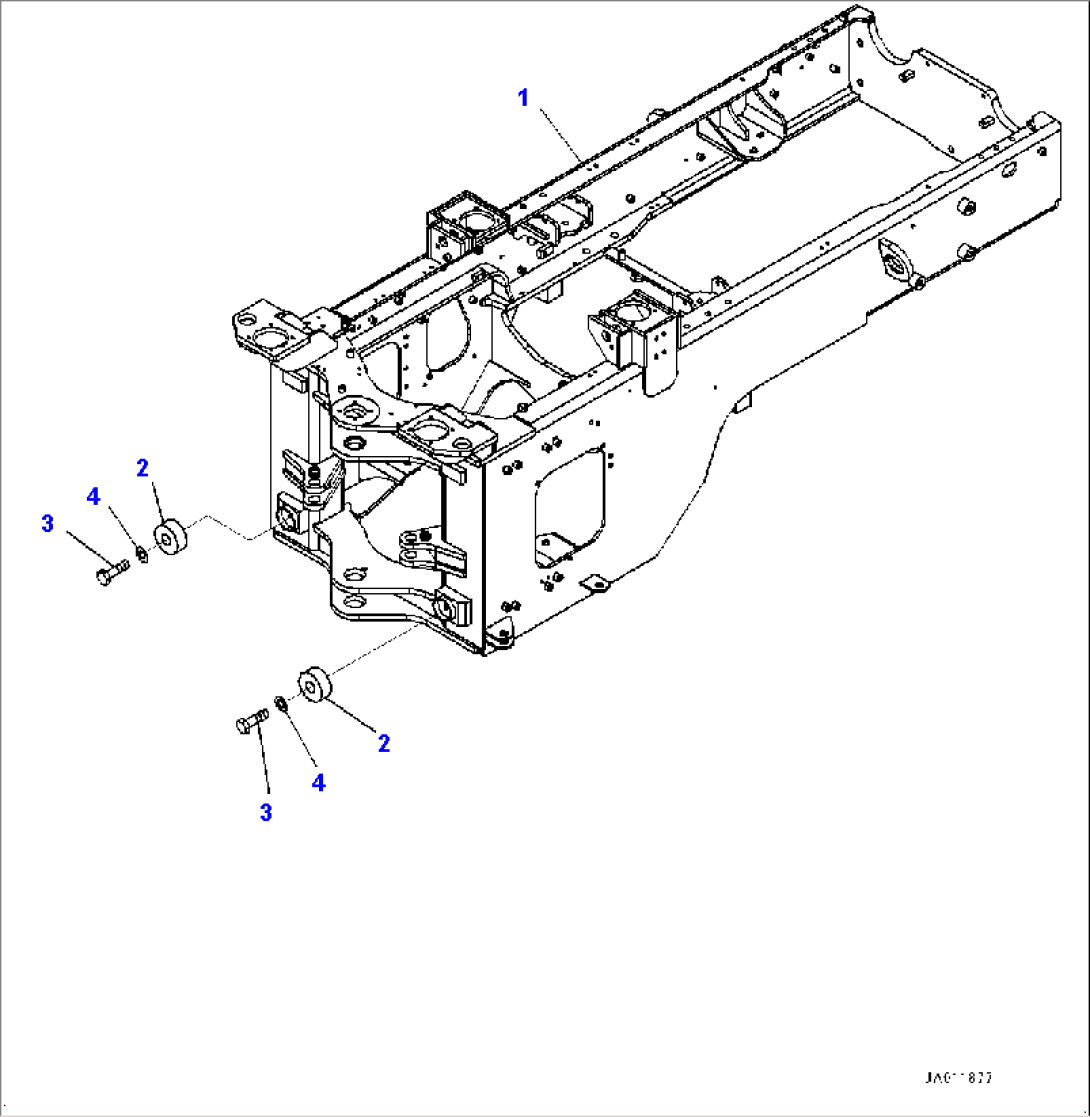

Rear Frame (#80001-)
