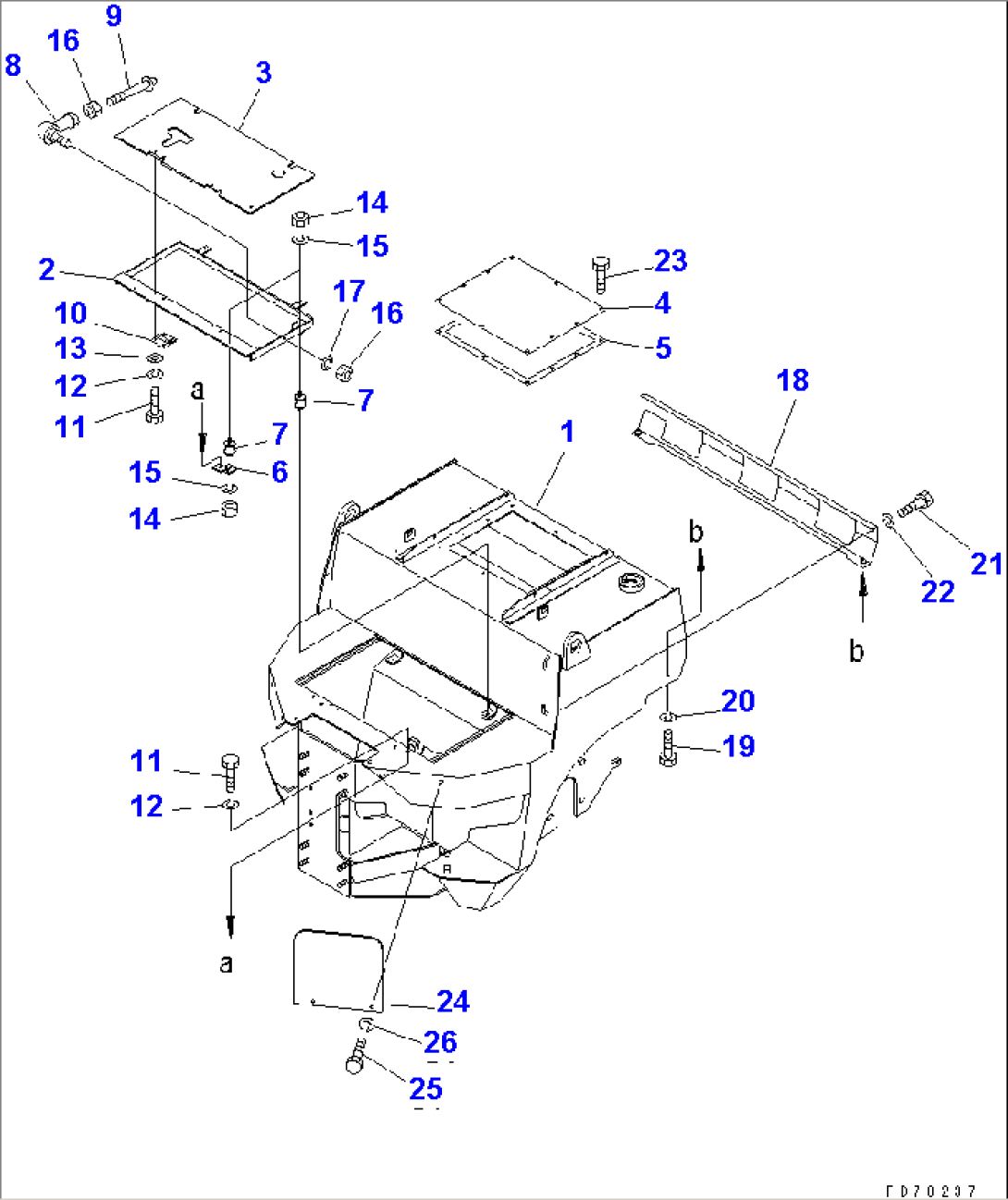

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 266-51-73100 | FRAME | 1001- | |
| 2 | 258-10-23801 | BRACKET | 1001- | |
| 3 | 2691-1-43910 | PLATE | 1001- | |
| 4 | 258-10-14711 | COVER | 1001- | |
| 5 | 258-10-14601 | GASKET | 1001- | |
| 6 | 258-10-23940 | BRACKET | 1001- | |
| 7 | 258-10-13930 | CUSHION | 1001- | |
| 8 | 268-30-16680 | BALL,JOINT | 1001- | |
| 9 | 258-10-23701 | ROD | 1001- | |
| 10 | 257-10-15620 | HINGE | 1001- | |
| 11 | 01010-30816 | BOLT | 1001- | |
| 12 | 01602-20825 | WASHER,SPRING | 1001- | |
| 13 | 01640-20816 | WASHER | 1001- | |
| 14 | 01580-30605 | NUT | 1001- | |
| 15 | 01602-20619 | WASHER,SPRING | 1001- | |
| 16 | 01580-30605 | NUT | 1001- | |
| 17 | 01602-20825 | WASHER,SPRING | 1001- | |
| 18 | 2691-1-44800 | COVER | 1001- | |
| 19 | 01010-50820 | BOLT | 1001- | |
| 20 | 01602-20825 | WASHER,SPRING | 1001- | |
| 21 | 01010-50816 | BOLT | 1001- | |
| 22 | 01602-20825 | WASHER,SPRING | 1001- | |
| 23 | 01010-50816 | BOLT | 1001- | |
| 24 | 2691-1-43950 | COVER | 1001- | |
| 25 | 01010-51025 | BOLT | 1001- | |
| 26 | 01602-21030 | WASHER | 1001- |
