| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-975-4212 | Frame | C10001- | |
| 2 | 416-46-11210 | Bumper | C10001- | |
| 3 | 01010-81225 | Bolt | C10001- | |
| 4 | 01643-31232 | Washer | C10001- | |
| 5 | 417-46-22210 | Bushing | C10001- | |
| 6 | 417-46-22220 | Bushing | C10001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa200 6 s/n c10001 up
- Frame and its related parts
- Rear frame (#c10001 )
Поиск по каталогу

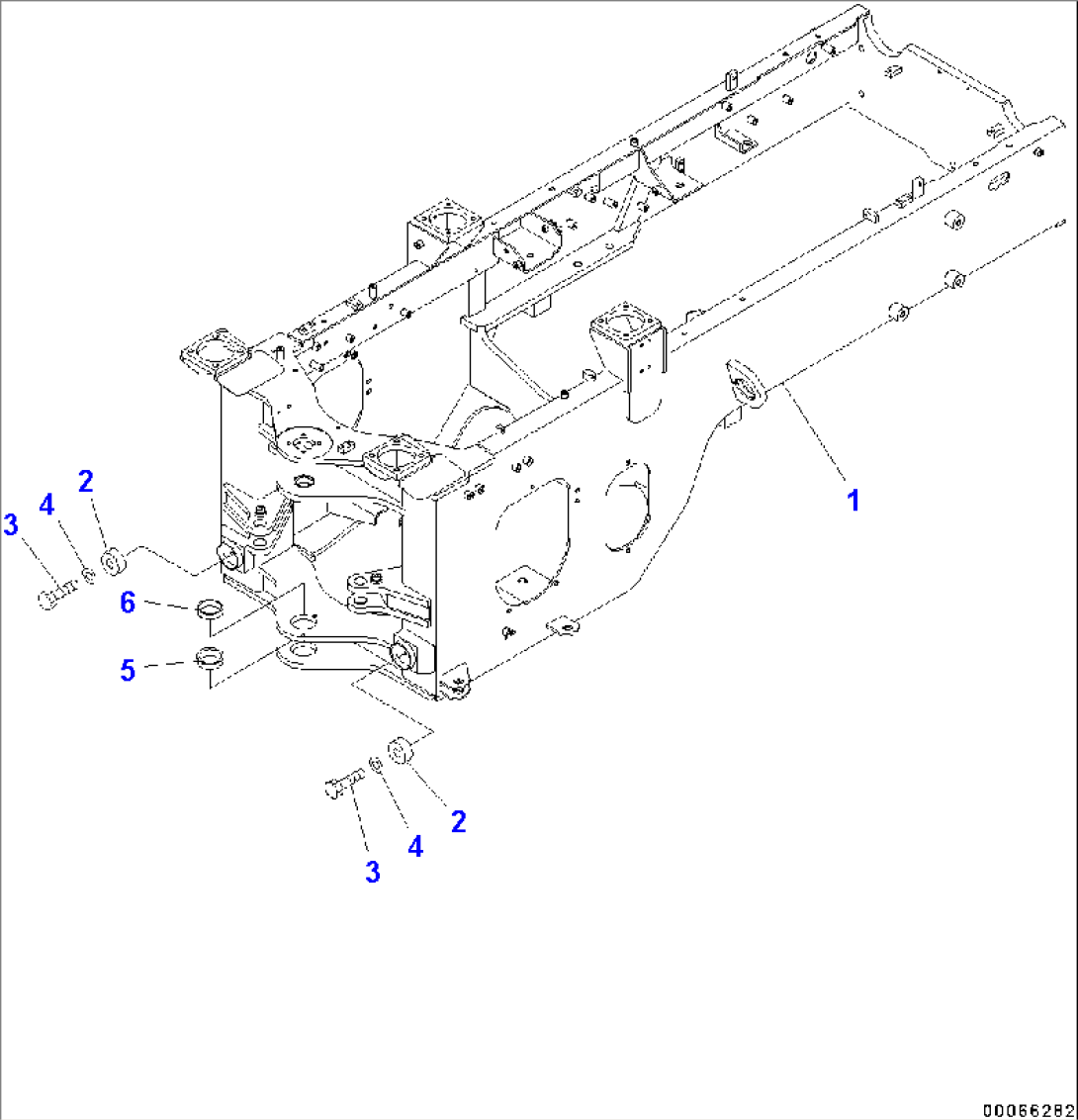

Rear Frame (#C10001-)
