| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-Z90-4710 | FRAME,REAR | 90001- | |
| 2 | 421-46-42160 | GUARD | 85001- | |
| 3 | 01010-81640 | BOLT | 85001- | |
| 4 | 01643-31645 | WASHER | 85001- | |
| 5 | 01016-52080 | BOLT | 85001- | |
| 6 | 01643-32060 | WASHER | 85001- | |
| 7 | 01580-12016 | NUT | 85001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n 85001 90215 (ecot3) (for eu)
- Main/revolving frame and related parts
- Rear frame (eu noise reduction arrangement 2)(#90001 )
Поиск по каталогу

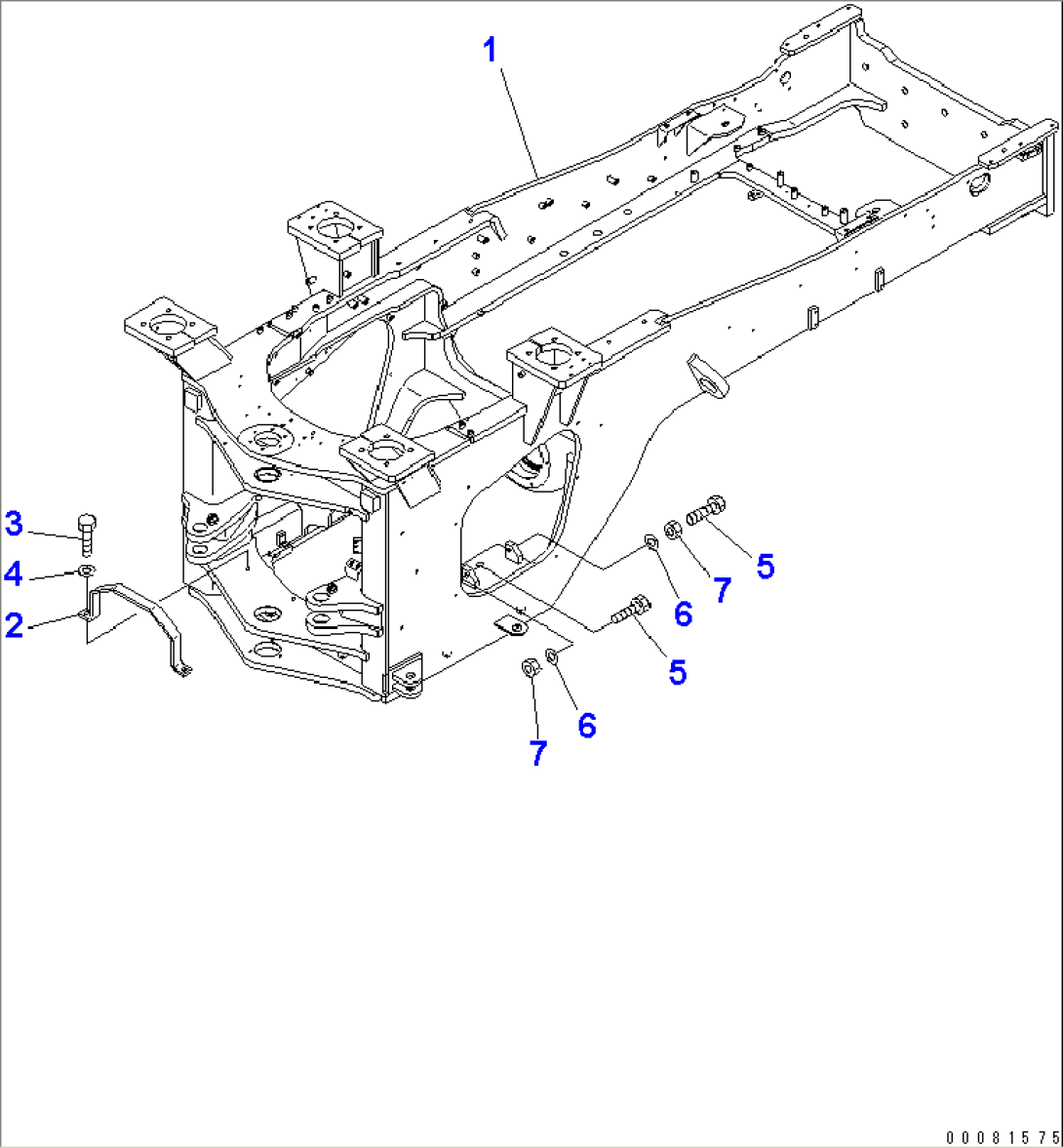

REAR FRAME (EU NOISE REDUCTION ARRANGEMENT 2)(#90001-)
