| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-877-3210 | FRAME,REWORK | 60001-60021 | |
| 2 | 423-46-32160 | GUARD | 60001-60021 | |
| 3 | 01010-81435 | BOLT | 60001-60021 | |
| 4 | 01643-31445 | WASHER | 60001-60021 |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa380 5 s/n 60001 up (overseas version)
- Main/revolving frame and related parts
- Rear frame (for 3 spool valve) (for additional 2 spool valve)(#60001 60021)
Поиск по каталогу

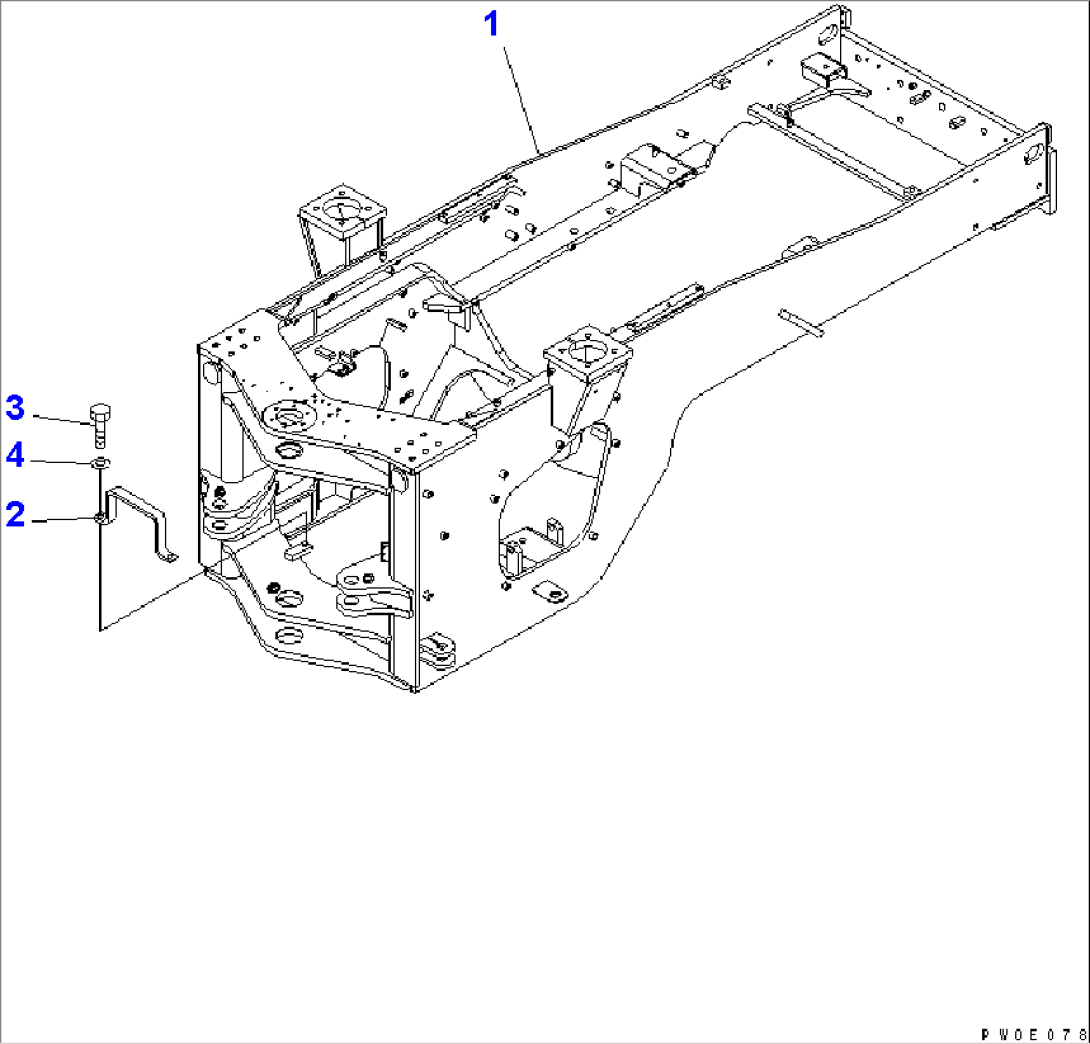

REAR FRAME (FOR 3-SPOOL VALVE) (FOR ADDITIONAL 2-SPOOL VALVE)(#60001-60021)
