| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-975-3210 | FRAME,REAR FRAME | 65001- | |
| 2 | 416-46-11210 | BUMPER | 65001- | |
| 3 | 01010-81225 | BOLT | 65001- | |
| 4 | 01643-31232 | WASHER | 65001- | |
| 5 | 417-46-22210 | BUSHING | 65001- | |
| 6 | 417-46-22220 | BUSHING | 65001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa200 5 sn s/n 65001 up
- Main/revolving frame and related parts
- Rear frame (for additional counter weight)
Поиск по каталогу

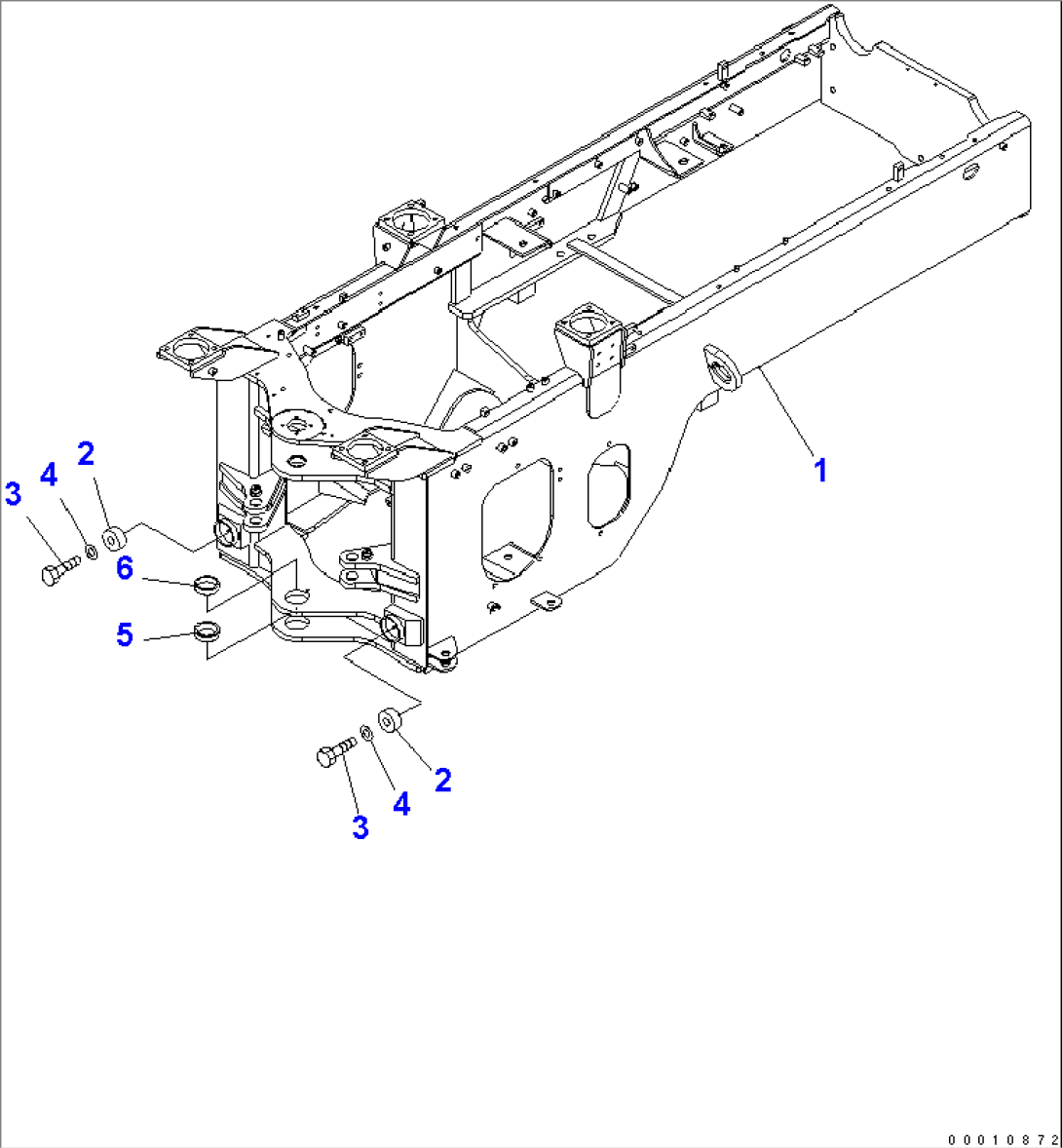

REAR FRAME (FOR ADDITIONAL COUNTER WEIGHT)
