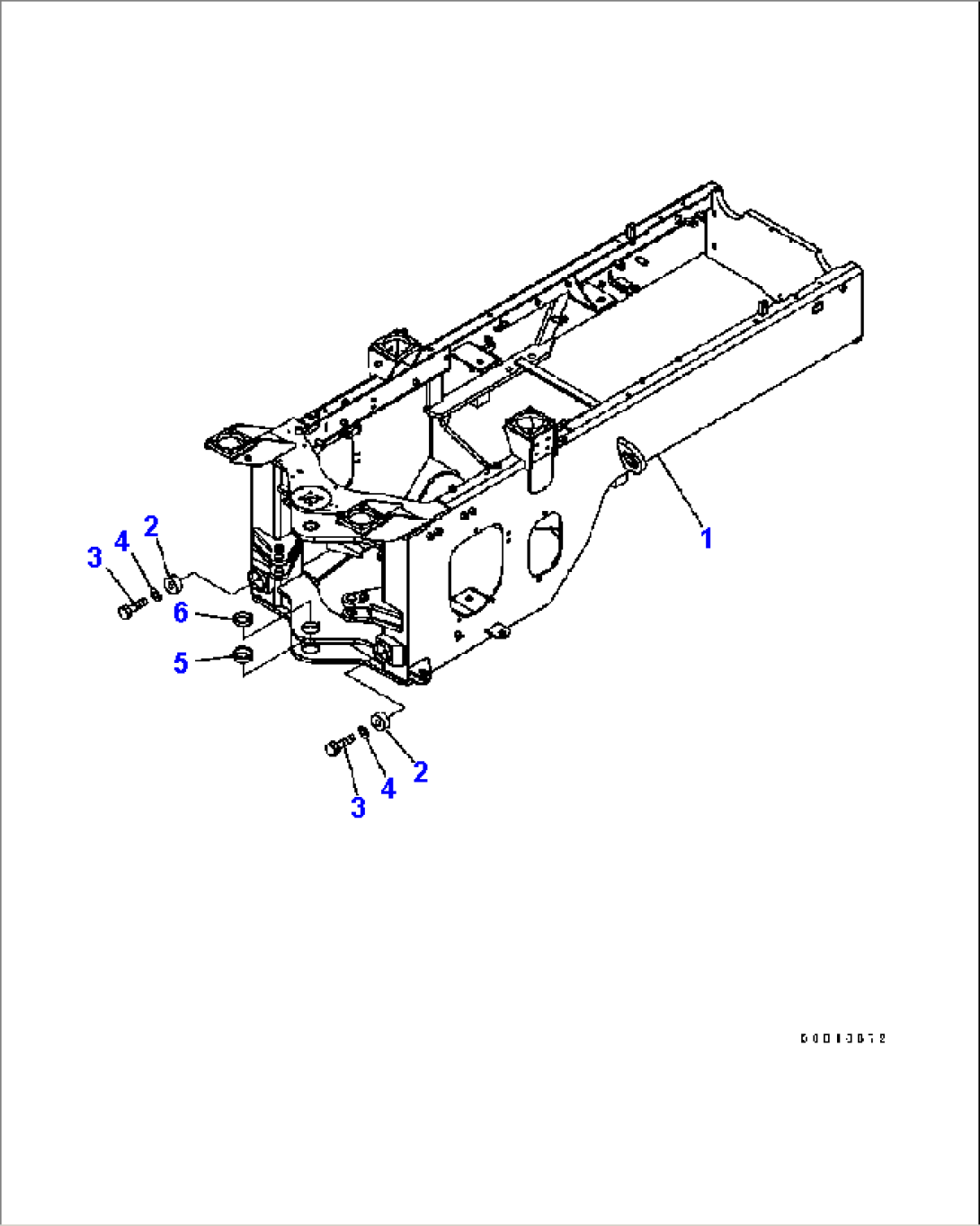

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-975-3212 | FRAME ASS'Y {REAR FRAME} | B10001-B10152 | |
| 2 | 416-46-11210 | BUMPER | B10001-B10152 | |
| 3 | 01010-81225 | BOLT | B10001-B10152 | |
| 4 | 01643-31232 | WASHER | B10001-B10152 | |
| 5 | 417-46-22210 | BUSHING | B10001-B10152 | |
| 6 | 417-46-22220 | BUSHING | B10001-B10152 |
