| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-S95-5192 | FRAME,REAR | 62334- | |
| 1 | \0\423-S95-5191 | FRAME,REAR | 60001-62333 | |
| 2 | 423-S95-5640 | GUARD | 60001- | |
| 3 | 01010-81435 | BOLT | 60001- | |
| 4 | 01643-31445 | WASHER | 60001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa380 5 s/n 60001 up (overseas version)
- Main/revolving frame and related parts
- Rear frame (for auto grease)
Поиск по каталогу

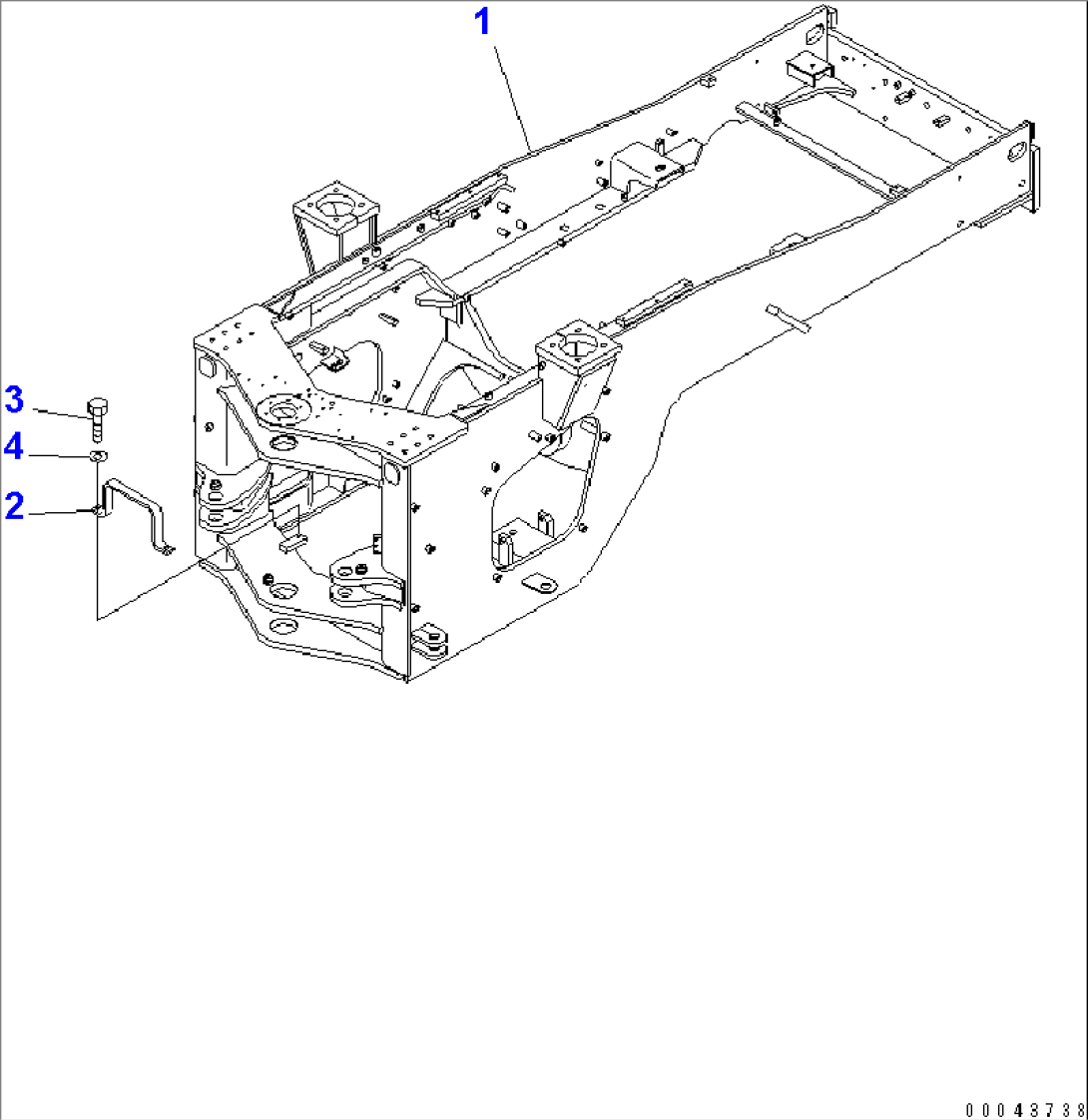

REAR FRAME (FOR AUTO GREASE)
