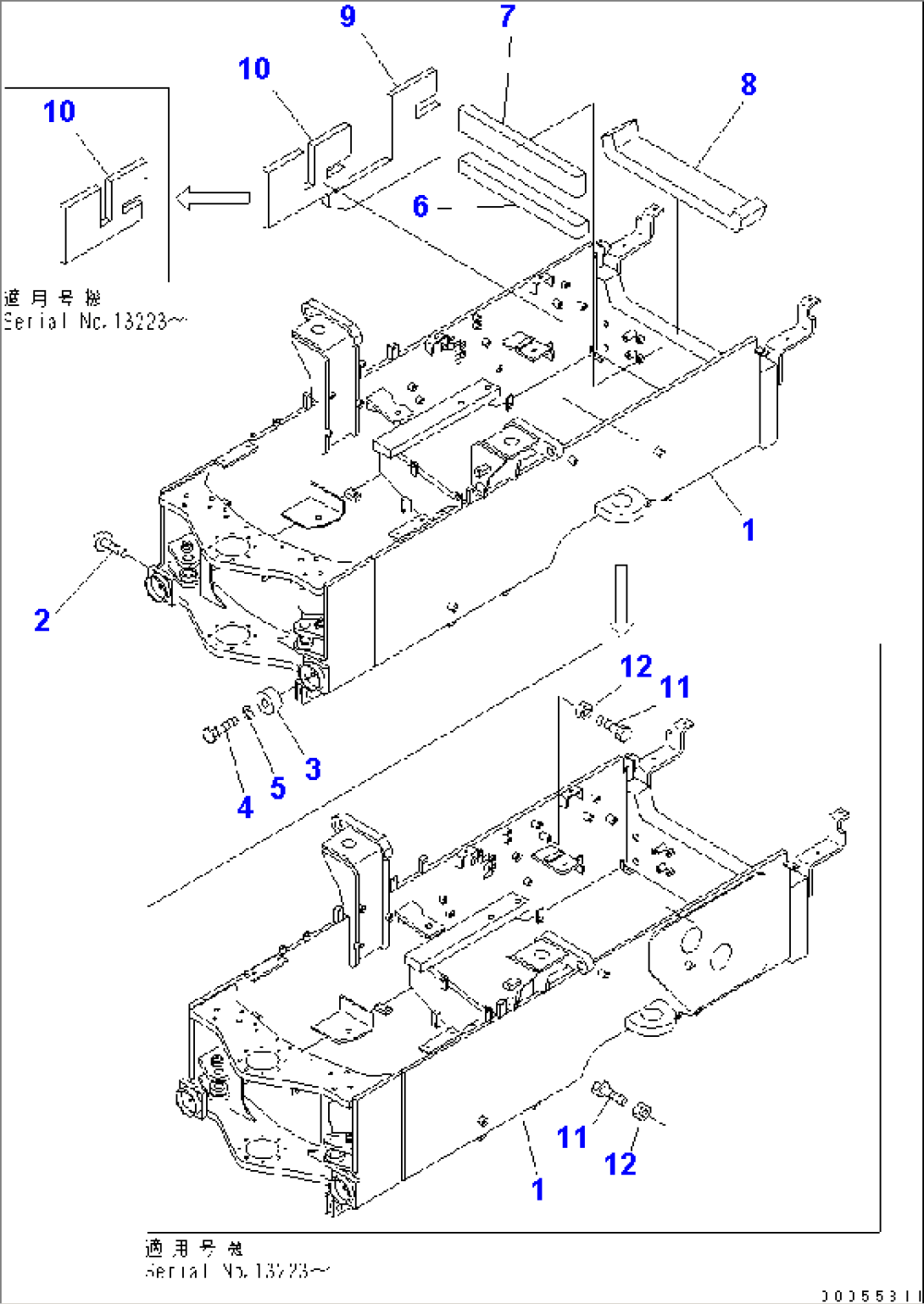

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-Z21-2382 | FRAME,REAR | 13223- | |
| 1 | \0\415-Z21-2381 | FRAME,REAR | 12184-13222 | |
| 1 | 415-Z21-2380 | FRAME,REAR | 12001-12183 | |
| 2 | 01435-01016 | BOLT | 12001- | |
| 3 | 416-46-11210 | BUMPER | 12001- | |
| 4 | 01010-81225 | BOLT | 12001- | |
| 5 | 01643-31232 | WASHER | 12001- | |
| 6 | 415-54-21950 | SHEET | 12001- | |
| 7 | 415-54-31130 | SHEET | 12001- | |
| 8 | 415-54-23350 | SHEET | 12001- | |
| 9 | 415-54-23420 | SHEET | 12001- | |
| 10 | 415-54-23431 | SHEET | 13223- | |
| 10 | \0\415-54-23430 | SHEET | 12001-13222 | |
| 11 | 01016-51240 | BOLT | 13223- | |
| 12 | 01580-11210 | NUT | 13223- |
