| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-46-12104 | FRAME,REAR | 1001-1052 | |
| 2 | 566-46-42810 | BUSHING | 1001-@ | |
| 3 | 07145-00060 | SEAL | 1001-@ | |
| 4 | 07020-00000 | FITTING,GREASE | 1001-@ |
- Главная
- Каталог запчастей
- Самосвалы
- Hm300 1 s/n 1001 up
- Main frame and related parts
- Rear frame (for tail gate)(#1001 1052)
Поиск по каталогу

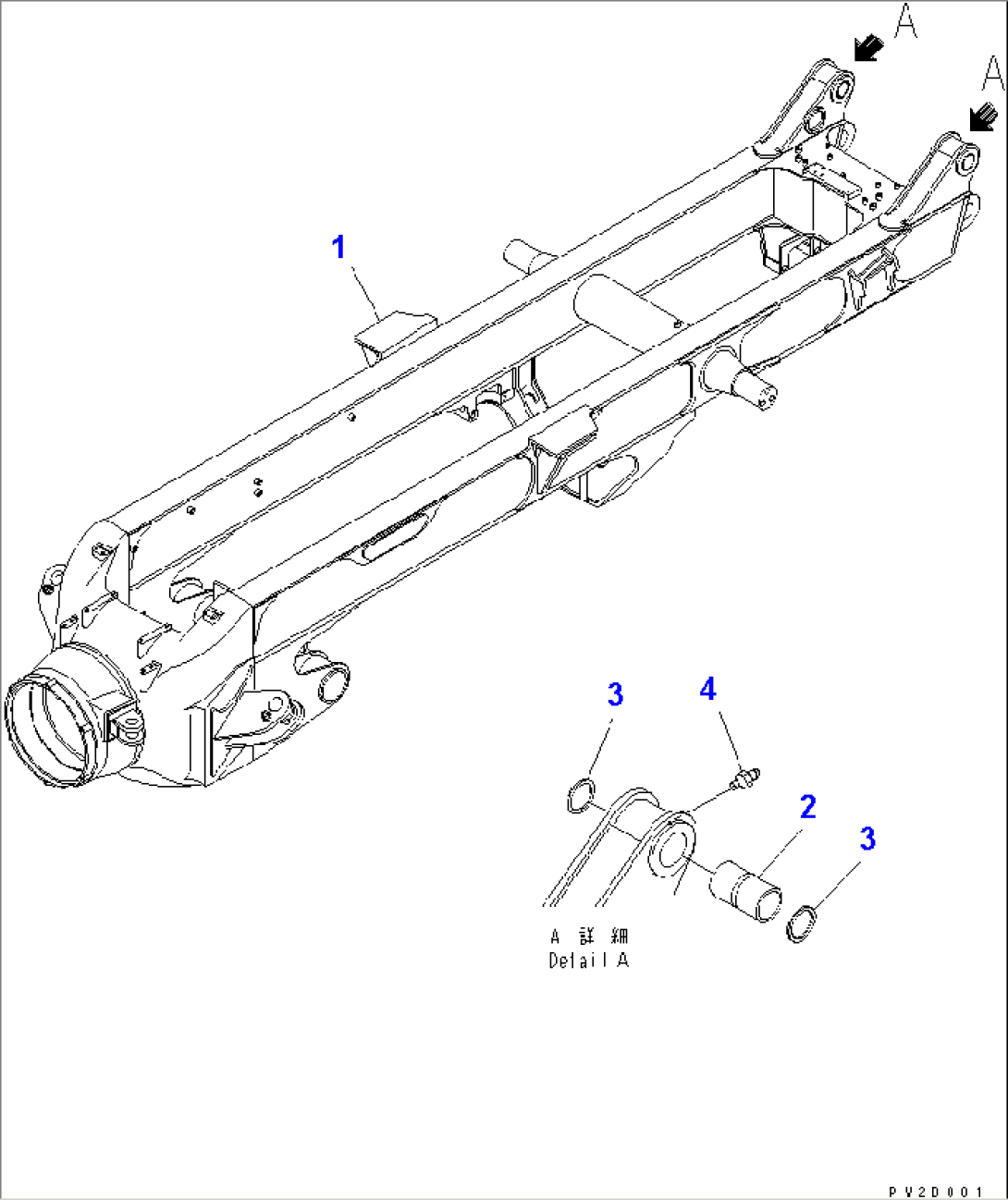

REAR FRAME (FOR TAIL GATE)(#1001-1052)
