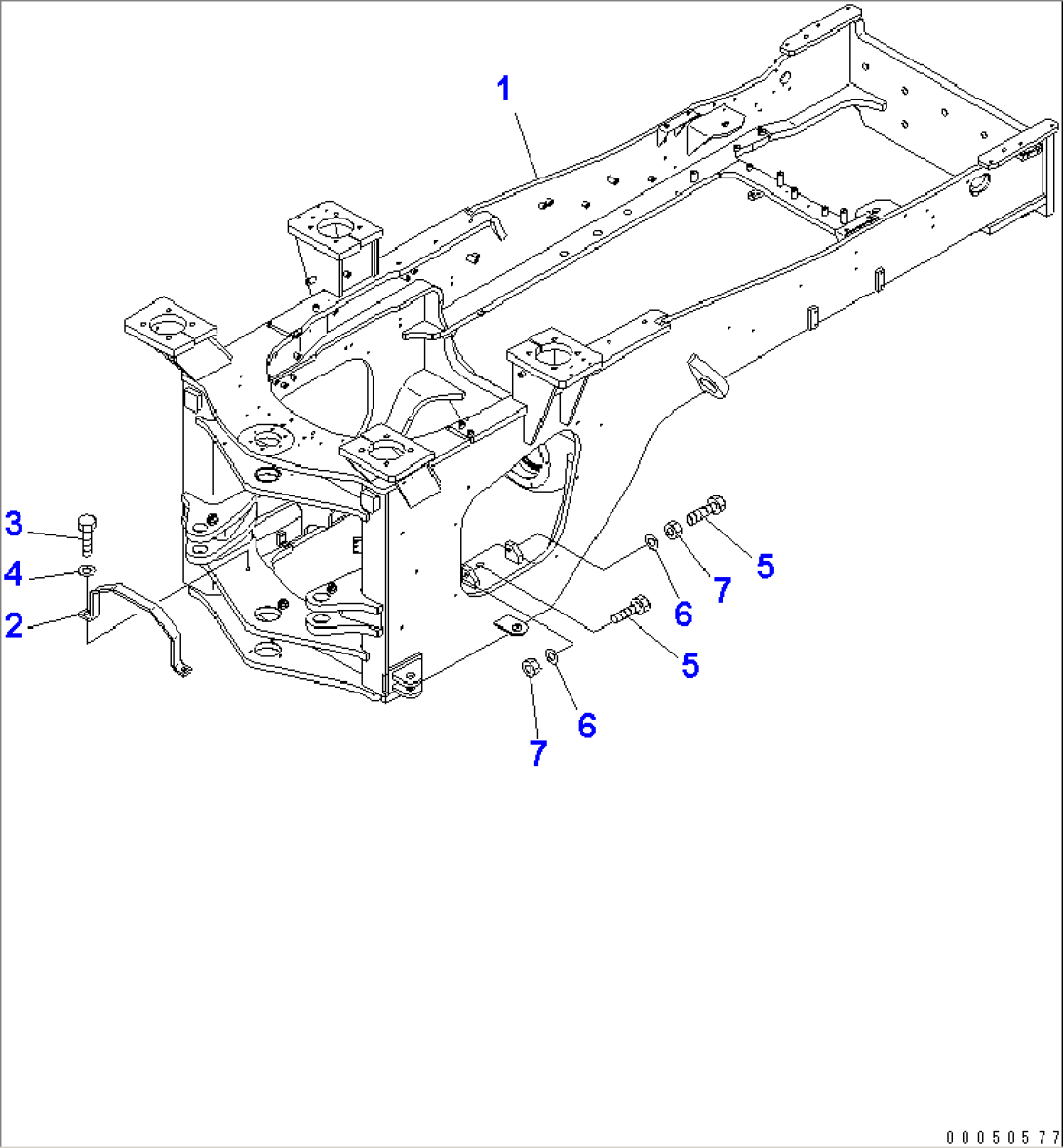

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-46-44421 | FRAME,REAR | 85248-90000 | |
| 1 | 421-46-44420 | FRAME,REAR | 85001-85247 | |
| 2 | 421-46-42160 | GUARD | 85001-90000 | |
| 3 | 01010-81640 | BOLT | 85001-90000 | |
| 4 | 01643-31645 | WASHER | 85001-90000 | |
| 5 | 01016-52080 | BOLT | 85001-90000 | |
| 6 | 01643-32060 | WASHER | 85001-90000 | |
| 7 | 01580-12016 | NUT | 85001-90000 |
