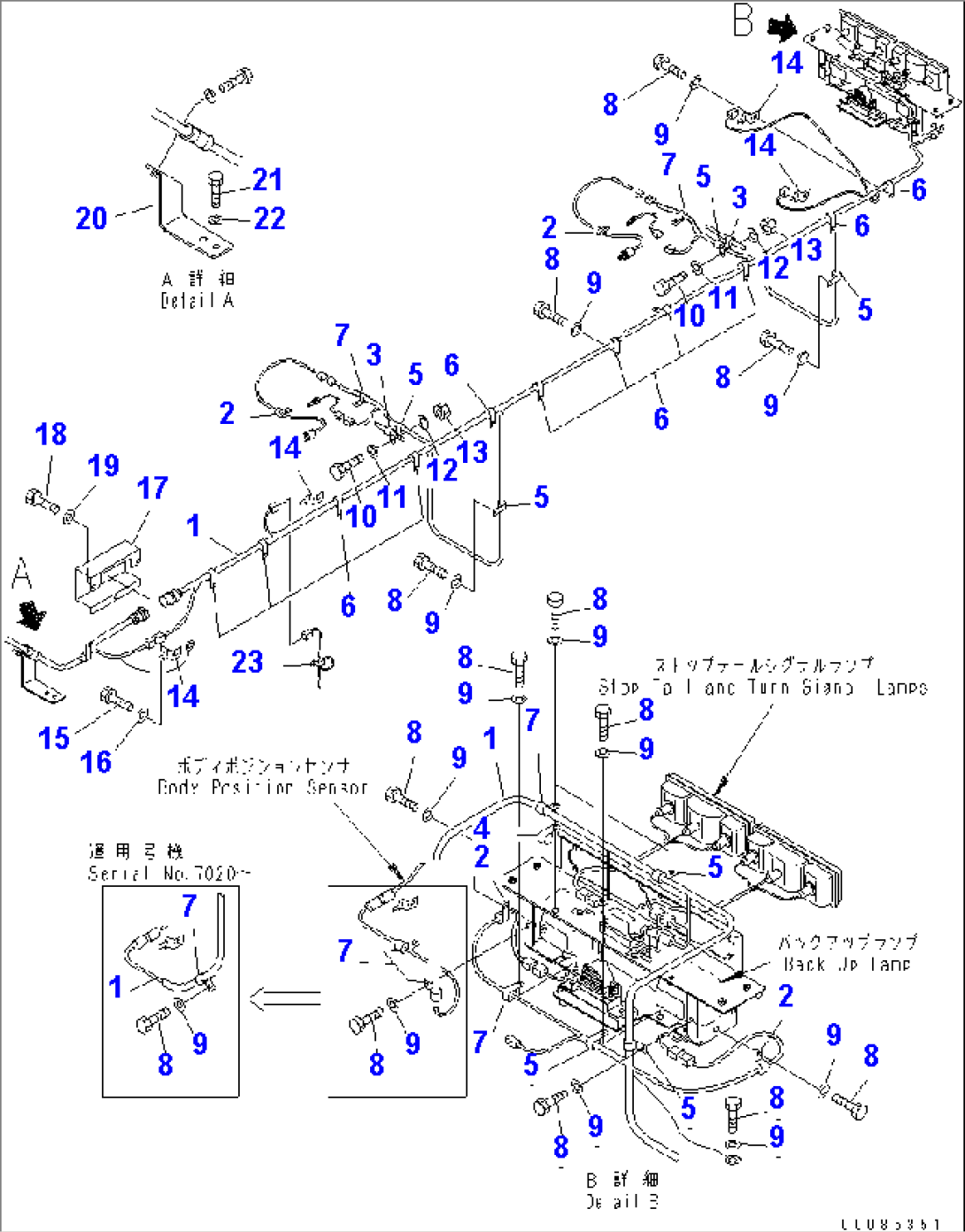

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-06-27221 | WIRING HARNESS | 7012- | |
| 2 | 04434-50610 | CLIP | 7012- | |
| 3 | 04434-51210 | CLIP | 7012- | |
| 4 | 04434-50810 | CLIP | 7012- | |
| 5 | 04434-51410 | CLIP | 7012- | |
| 6 | 04434-51810 | CLIP | 7012- | |
| 7 | 04434-51010 | CLIP | 7020- | |
| 7 | 04434-51010 | CLIP | 7012-7019 | |
| 8 | 01010-81016 | BOLT | 7020- | |
| 8 | 01010-81016 | BOLT | 7012-7019 | |
| 9 | 01643-31032 | WASHER | 7020- | |
| 9 | 01643-31032 | WASHER | 7012-7019 | |
| 10 | 01010-81025 | BOLT | 7001- | |
| 11 | 01643-31032 | WASHER | 7001- | |
| 12 | 01643-31032 | WASHER | 7001- | |
| 13 | 01580-01008 | NUT | 7001- | |
| 14 | 08193-21012 | CLIP | 7012- | |
| 15 | 01010-81016 | BOLT | 7001- | |
| 16 | 01643-31032 | WASHER | 7001- | |
| 17 | 56B-06-25170 | PLATE | 7012- | |
| 18 | 01010-81016 | BOLT | 7001- | |
| 19 | 01643-31032 | WASHER | 7001- | |
| 20 | 56C-88-12140 | BRACKET | 7012- | |
| 21 | 01010-81230 | BOLT | 7012- | |
| 22 | 01643-31232 | WASHER | 7012- | |
| 23 | 08034-20519 | BAND | 7012- |
