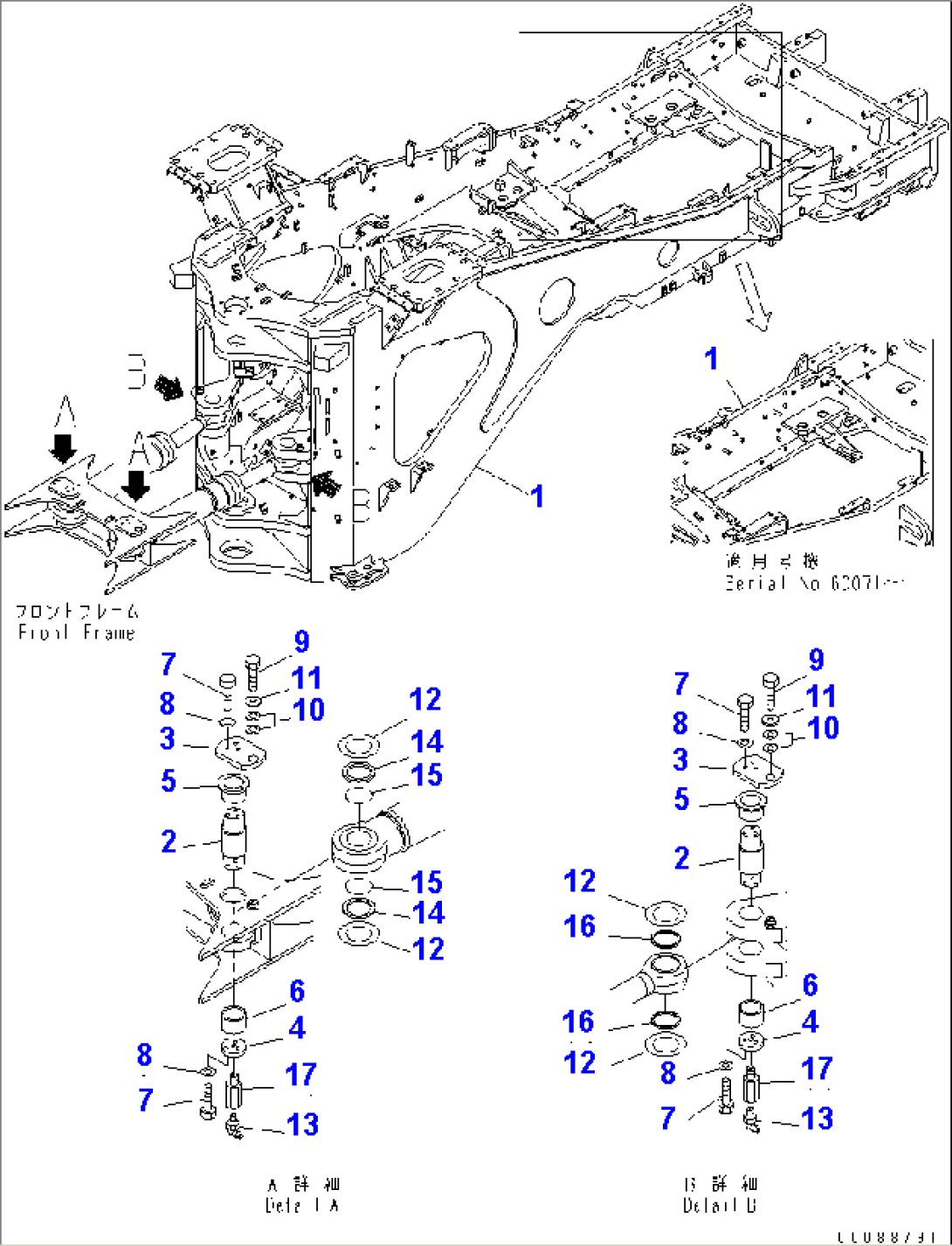

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-Z89-3744 | FRAME,REAR | 60077- | |
| 1 | 427-Z89-3743 | FRAME,REAR | 60071-60076 | |
| 1 | \0\427-Z89-3742 | FRAME,REAR | 60058-60070 | |
| 1 | \0\427-Z89-3741 | FRAME,REAR | 60002-60057 | |
| 2 | 427-46-12410 | SHAFT | 60002- | |
| 3 | 427-46-12420 | PLATE | 60002- | |
| 4 | 427-46-12430 | PLATE | 60002- | |
| 5 | 427-46-12440 | BUSHING | 60002- | |
| 6 | 427-46-12450 | BUSHING | 60002- | |
| 7 | 01010-81475 | BOLT | 60002- | |
| 8 | 01643-31445 | WASHER | 60002- | |
| 9 | 01010-81635 | BOLT | 60002- | |
| 10 | 01643-31645 | WASHER | 60002- | |
| 11 | 421-70-11280 | WASHER | 60002- | |
| 12 | 421-70-11331 | SHIM, 1.0MM | 60002- | |
| 13 | 07020-00900 | FITTING | 60002- | |
| 14 | 427-46-12250 | SPACER | 60002- | |
| 15 | 07000-12110 | O-RING | 60002- | |
| 16 | 421-09-11320 | SEAL | 60002- | |
| 17 | 6141-55-5630 | NIPPLE | 60002- |
