| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-S95-3832 | FRAME,REAR | 50001- | |
| 425-46-22102 | SEAT ASS'Y | 50001- | ||
| 425-46-22113 | FRAME | 50623- | ||
| 425-46-22111 | FRAME | 50001-50622 |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 3 s/n 50001 up
- Main/revolving frame and related parts
- Rear frame (with auto grease)
Поиск по каталогу

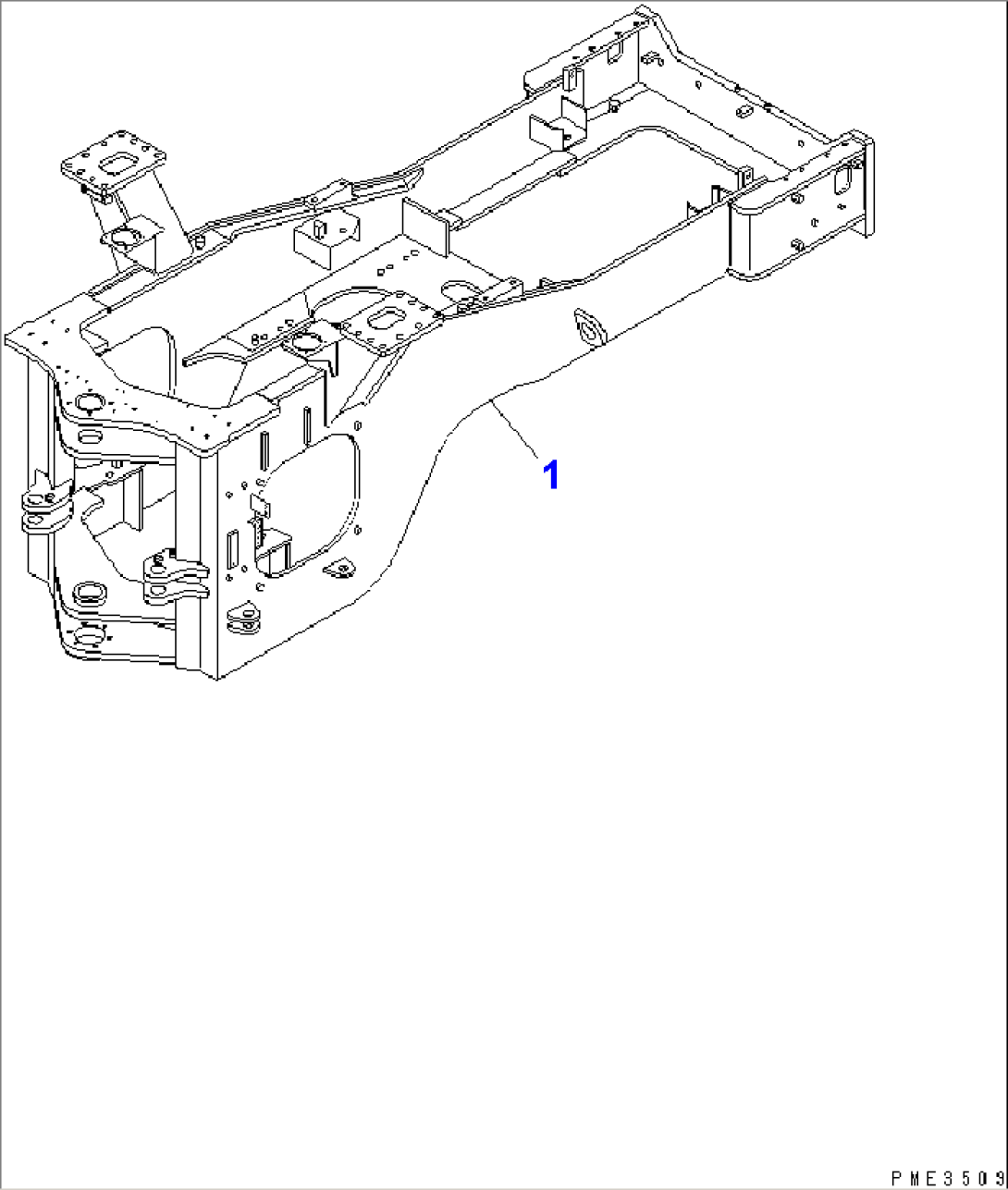

REAR FRAME (WITH AUTO GREASE)
