| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-98-22010 | SEAT | 2630- | |
| 2 | 566-46-42810 | BUSHING | 2630- | |
| 3 | 07145-00060 | SEAL | 2630- | |
| 4 | 07020-00000 | FITTING | 2630- | |
| 5 | 56B-98-12230 | PIN | 2630- | |
| 6 | 425-46-13130 | PIN | 2630- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm400 2 s/n 2001 2632 (ecot3) (for eu)
- Main frame and related parts
- Rear frame (with pull hook) (sand protection)(#2630 )
Поиск по каталогу

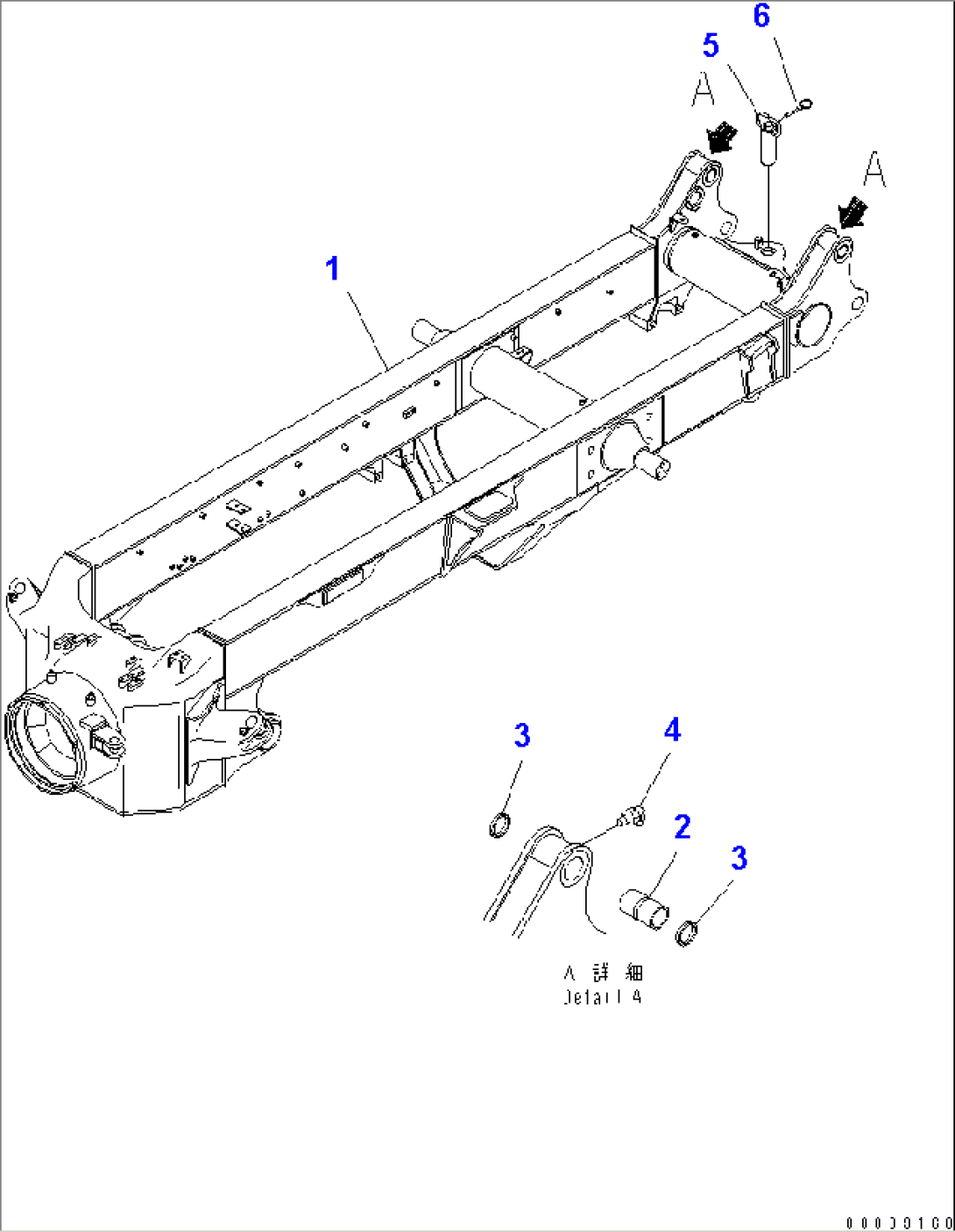

REAR FRAME (WITH PULL HOOK) (SAND PROTECTION)(#2630-)
