| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-98-12140 | FRAME SUB ASS'Y,REAR | 1001- | |
| 2 | 566-46-42810 | BUSHING | 1001- | |
| 3 | 07145-00060 | SEAL | 1001- | |
| 4 | 07020-00900 | FITTING,GREASE | 1001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm400 1 s/n 1001 up
- Main frame and related parts
- Rear frame (with tire stopper)
Поиск по каталогу

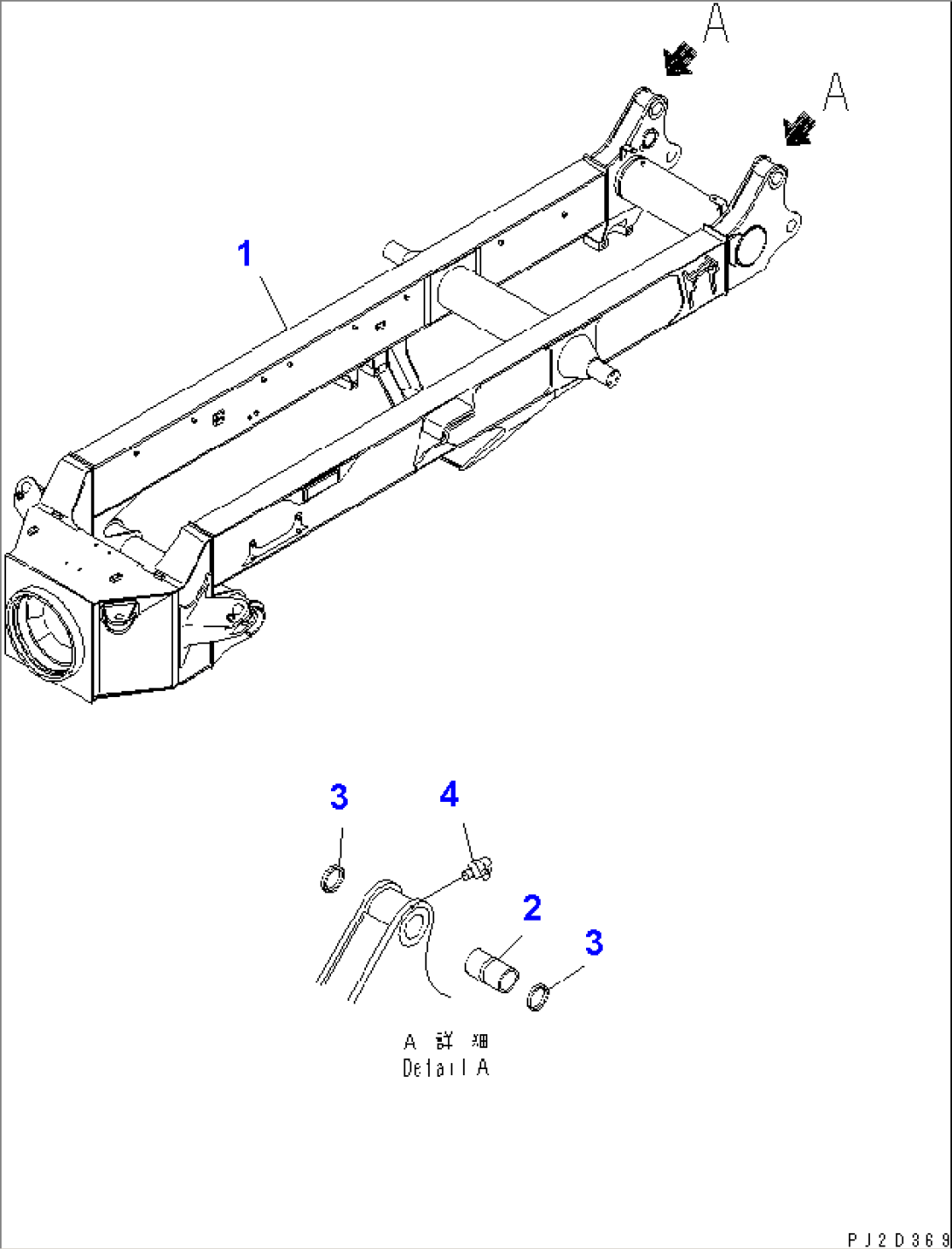

REAR FRAME (WITH TIRE STOPPER)
