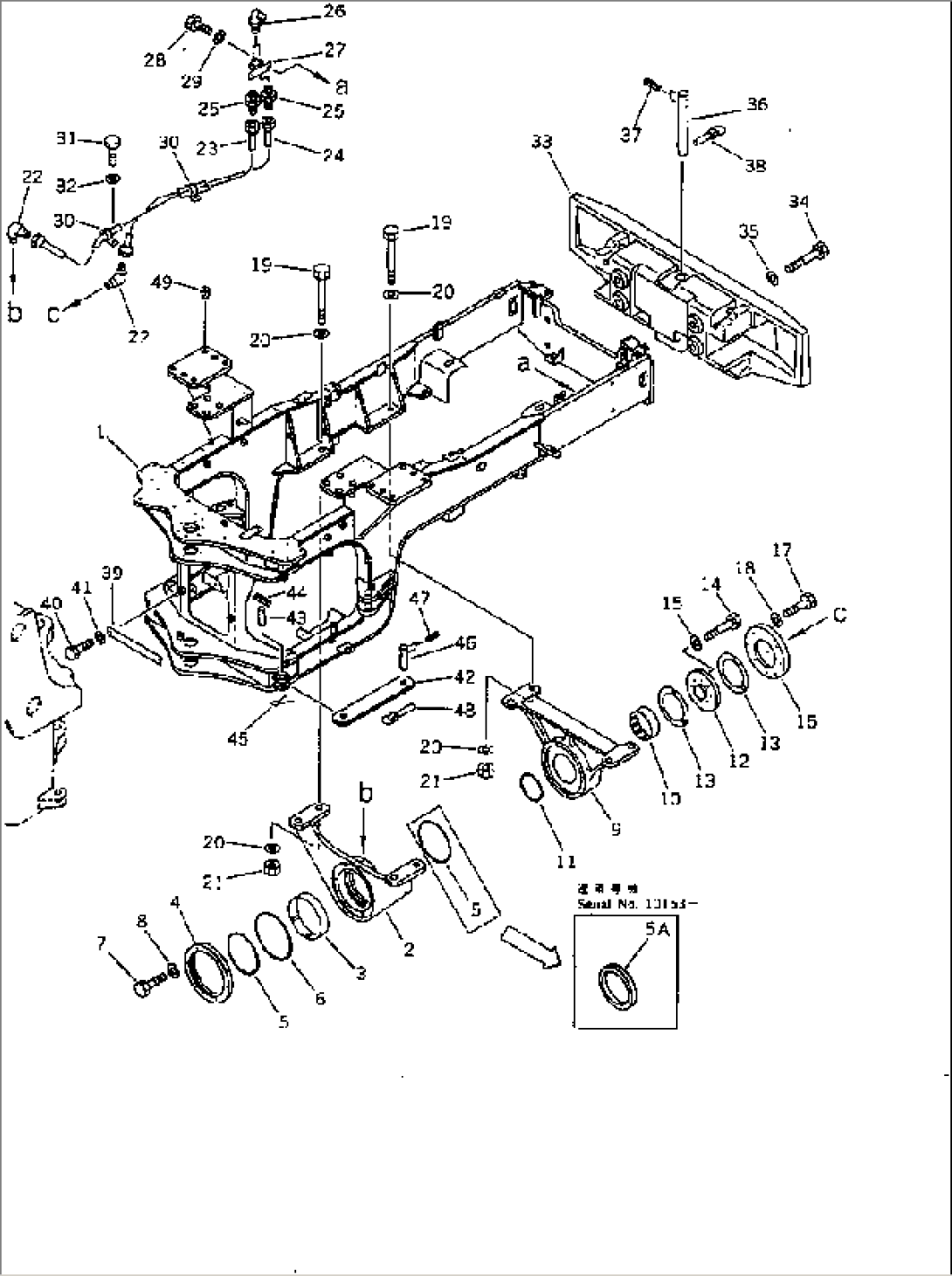

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-46-12610 | FRAME, REAR | 10001-19999 | |
| 1 | 424-971-1110 | FRAME,REAR (WITH UNDER GUARD) | 10001-19999 | |
| 2 | 424-46-12143 | SUPPORT,FRONT | 10040-19999 | |
| 2 | 424-46-12142 | SUPPORT,FRONT | 10001-10039 | |
| 3 | 424-46-12162 | BUSHING,FRONT | 10001-@ | |
| 4 | 424-46-12310 | RETAINER | 10001-@ | |
| 5 | 421-46-15112 | PACKING | 10422-19999 | |
| 5 | \0\421-46-15111 | PACKING | 10153-10421 | |
| 5 | \0\07000-06275 | O-RING | 10001-10152 | |
| 5A | 421-46-15121 | PACKING | 10422-19999 | |
| 5A | \0\421-46-15120 | PACKING | 10153-10421 | |
| 6 | 07000-05305 | O-RING | 10001-@ | |
| 7 | 01010-51235 | BOLT | 10001-@ | |
| 8 | 01643-31232 | WASHER | 10001-@ | |
| 9 | 424-46-12153 | SUPPORT,REAR | 10001-19999 | |
| 10 | 424-46-12172 | BUSHING,REAR | 10001-@ | |
| 11 | 421-46-15132 | PACKING | 10422-19999 | |
| 11 | \0\421-46-15131 | PACKING | 10153-10421 | |
| 11 | \0\07000-06170 | O-RING | 10001-10152 | |
| 12 | 424-46-12221 | PLATE,THRUST | 10001-@ | |
| 13 | 424-46-12181 | WASHER,THRUST | 10001-@ | |
| 14 | 01010-31670 | BOLT | 10001-@ | |
| 15 | 01643-31645 | WASHER | 10001-@ | |
| 16 | 424-46-12191 | COVER | 10001-@ | |
| 17 | 01010-31660 | BOLT | 10001-@ | |
| 18 | 01643-31645 | WASHER | 10001-@ | |
| 19 | 01011-62710 | BOLT | 10001-19999 | |
| 20 | 01643-32780 | WASHER | 10001-19999 | |
| 21 | 01580-02722 | NUT | 10279-19999 | |
| 21 | \1\424-09-12430 | NUT | 10001-10278 | |
| 22 | 07217-50712 | ELBOW | 10001-19999 | |
| 23 | 424-46-12253 | TUBE | 10001-19999 | |
| 24 | 424-46-12261 | TUBE | 10001-19999 | |
| 25 | 07214-50710 | CONNECTOR | 10001-19999 | |
| 26 | 07020-00900 | FITTING,GREASE | 10001-19999 | |
| 27 | 424-46-12330 | BLOCK | 10001-19999 | |
| 28 | 01010-51020 | BOLT | 10001-19999 | |
| 29 | 01643-31032 | WASHER | 10001-19999 | |
| 30 | 421-46-12980 | CLIP | 10001-19999 | |
| 31 | 01010-51020 | BOLT | 10001-19999 | |
| 32 | 01643-31032 | WASHER | 10001-19999 | |
| 33 | 424-46-13310 | WEIGHT,COUNTER | 10001-19999 | |
| 34 | 01011-32430 | BOLT | 10001-19999 | |
| 35 | 01643-32460 | WASHER | 10001-19999 | |
| 36 | 424-46-13221 | PIN | 10001-@ | |
| 37 | 04025-01000 | PIN,SPRING | 10001-@ | |
| 38 | 426-46-12280 | PIN,LINCH | 10001-@ | |
| 39 | 423-46-12170 | PLATE | 10001-19999 | |
| 40 | 01010-51030 | BOLT | 10001-19999 | |
| 41 | 01643-31032 | WASHER | 10001-19999 | |
| 42 | 424-46-12131 | BAR,LOCK | 10001-19999 | |
| 43 | 421-46-12721 | PIN | 10001-@ | |
| 44 | 04025-01065 | PIN,SPRING | 10001-@ | |
| 45 | 04025-01065 | PIN,COTTER | 10105-19999 | |
| 45 | \1\04050-10060 | PIN,COTTER | 10001-10104 | |
| 46 | 421-46-12731 | PIN | 10001-19999 | |
| 47 | 04025-01065 | PIN,SPRING | 10001-@ | |
| 48 | 421-46-12740 | PIN,LINCH | 10001-@ | |
| 49 | 07049-02430 | PLUG,(NOT USED WITH ROPS CANOPY) | 10001-19999 |
