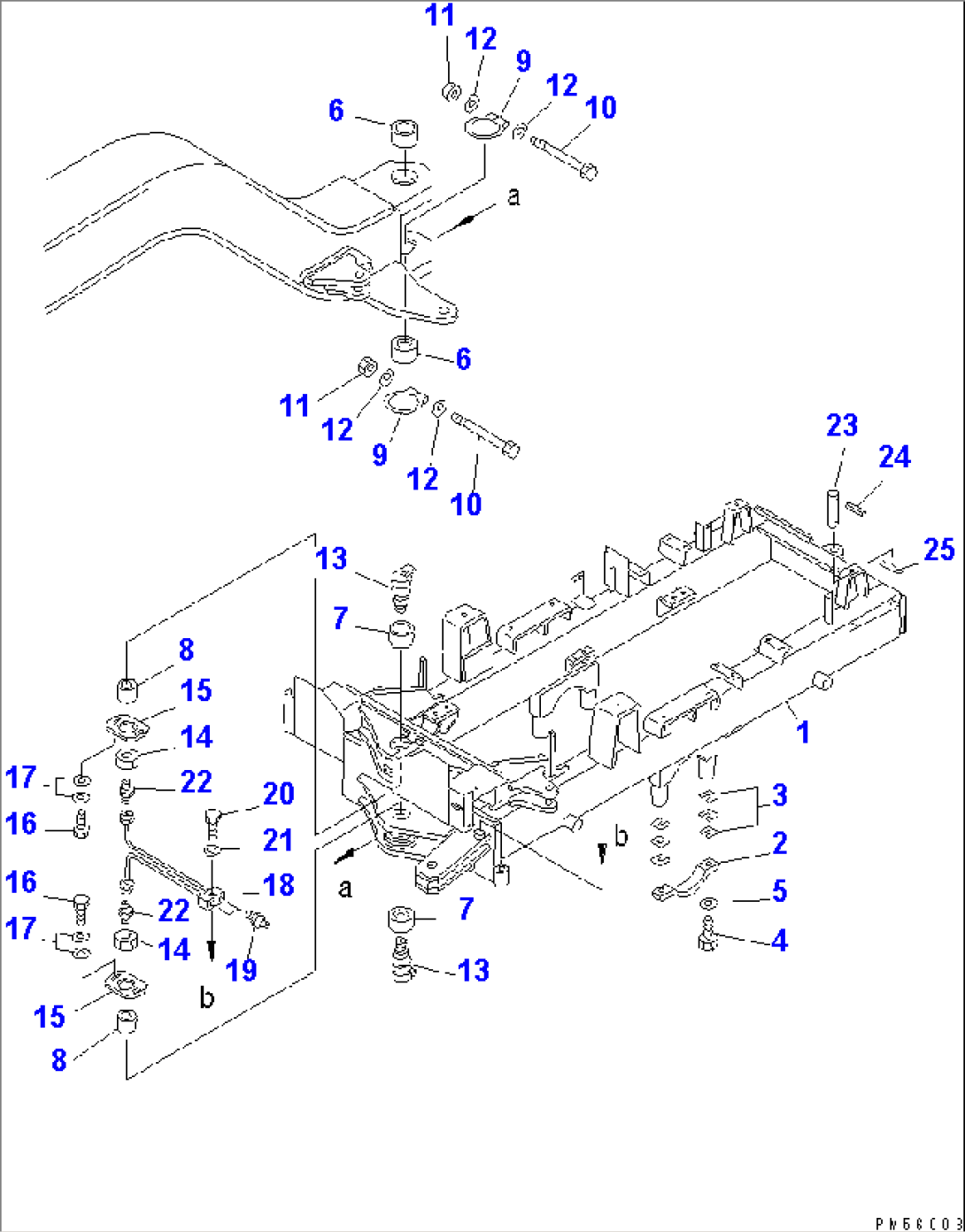

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23D-46-12010 | FRAME,REAR | 4001-4500 | |
| 2 | 23A-46-12320 | CAP | 4001-@ | |
| 3 | 23A-46-00110 | SHIM ASS'Y | 4001-@ | |
| \6\ | SHIM¤ 0.1MM | 4001-@ | ||
| \6\ | SHIM¤ 0.2MM | 4001-@ | ||
| \6\ | SHIM¤ 0.5MM | 4001-@ | ||
| 4 | 01011-52765 | BOLT | 4001-@ | |
| 5 | 01643-32780 | WASHER | 4001-@ | |
| 6 | 232-46-53211 | BUSHING | 4028-@ | |
| 232-46-53210 | BUSHING | 4001-4027 | ||
| 7 | 236-46-13381 | BUSHING | 4028-@ | |
| 236-46-13380 | BUSHING | 4001-4027 | ||
| 8 | 236-46-13390 | BUSHING | 4001-@ | |
| 9 | 236-46-13610 | O-RING | 4001-@ | |
| 10 | 235-46-11710 | BOLT | 4001-@ | |
| 11 | 01598-00608 | NUT | 4001-@ | |
| 12 | 01640-20610 | WASHER | 4001-@ | |
| 13 | 23A-46-11371 | PIN | 4028-@ | |
| 23A-46-11370 | PIN | 4001-4027 | ||
| 14 | 236-46-13410 | NUT | 4001-@ | |
| 15 | 23A-46-11380 | PLATE | 4001-@ | |
| 16 | 01010-51630 | BOLT | 4001-@ | |
| 17 | 01643-31645 | WASHER | 4001-@ | |
| 18 | 23A-46-11480 | TUBE | 4001-@ | |
| 19 | 07020-00000 | FITTING,GREASE | 4001-@ | |
| 20 | 01010-51235 | BOLT | 4001-@ | |
| 21 | 01643-31232 | WASHER | 4001-@ | |
| 22 | 07213-50610 | CONNECTOR | 4001-@ | |
| 23 | 232-46-11711 | PIN | 4001-@ | |
| 24 | 04025-01065 | PIN,SPRING | 4001-@ | |
| 25 | 232-46-11920 | PIN,SNAP | 4001-@ |
