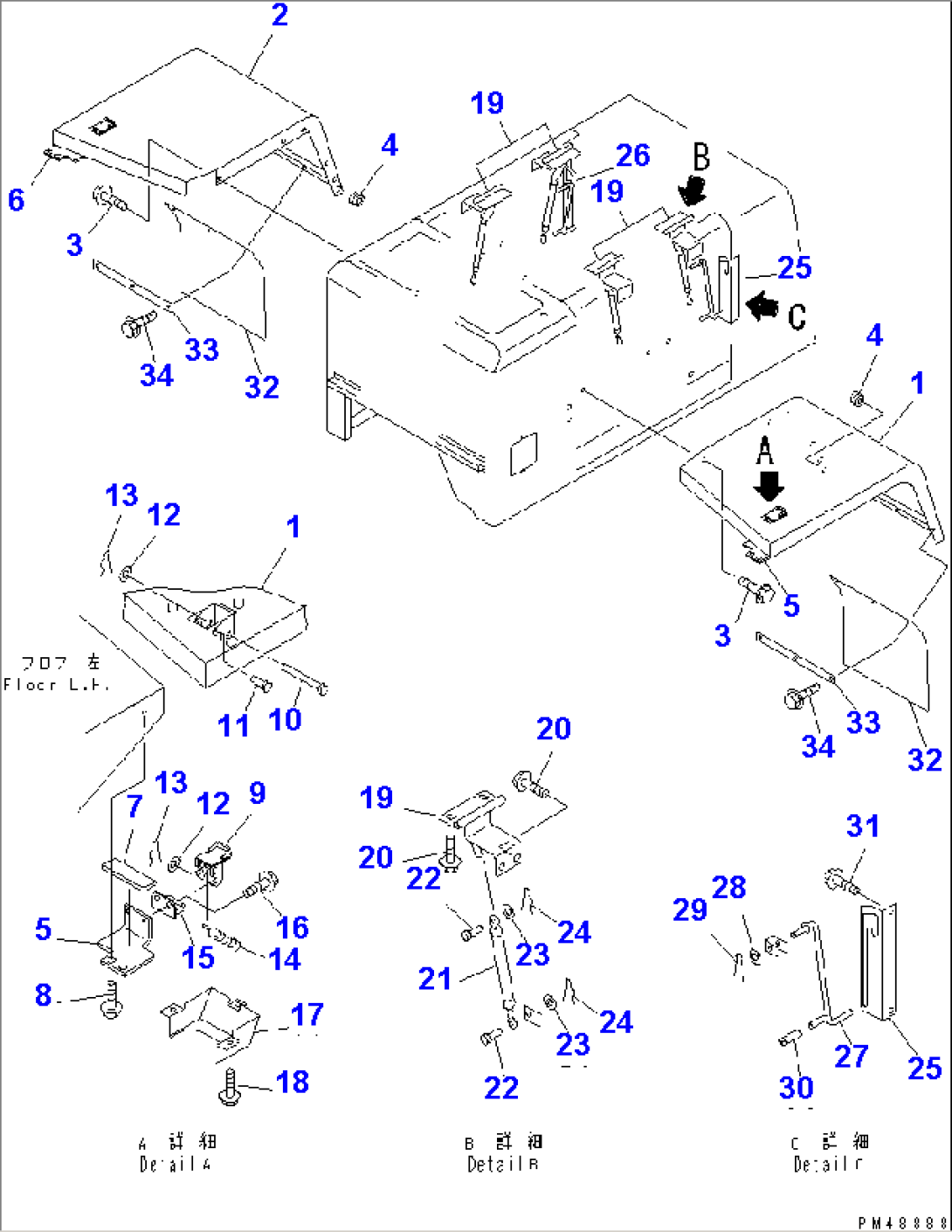

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-54-24760 | FENDER,L.H. | .- | |
| 2 | 418-54-24770 | FENDER,R.H. | .- | |
| 3 | 01435-01225 | BOLT | 60001- | |
| 4 | 09415-01008 | CAP | 60001- | |
| 5 | 418-54-24780 | BRACKET,L.H. | .- | |
| 6 | 418-54-24790 | BRACKET,R.H. | .- | |
| 7 | 418-54-24730 | SHEET | 60001- | |
| 8 | 01435-01225 | BOLT | 60001- | |
| 9 | 417-54-24630 | LATCH | .- | |
| 10 | 415-54-11630 | PIN | .- | |
| 11 | 04205-10622 | PIN | .- | |
| 12 | 01641-20608 | WASHER | .- | |
| 13 | 04052-10633 | PIN,SNAP | .- | |
| 14 | 417-54-24610 | SPRING | .- | |
| 15 | 417-54-24620 | STRIKER | .- | |
| 16 | 01435-01016 | BOLT | .- | |
| 17 | 417-54-24640 | COVER | .- | |
| 18 | 01435-01016 | BOLT | .- | |
| 19 | (417-54-24420) | HINGE | 60001- | |
| 20 | (01435-01220) | BOLT | 60001- | |
| 21 | 417-54-24280 | GAS SPRING ASS'Y | 60001- | |
| 22 | (04205-10832) | PIN | 60001- | |
| 23 | (01641-20812) | WASHER | 60001- | |
| 24 | (04052-10833) | PIN,SNAP | 60001- | |
| 25 | 418-54-24740 | PLATE,L.H. | 60001- | |
| 26 | 418-54-24750 | PLATE,R.H. | 60001- | |
| 27 | 418-54-21330 | ROD | 60001- | |
| 28 | 01641-21423 | WASHER | 60001- | |
| 29 | 04050-13022 | PIN,COTTER | 60001- | |
| 30 | 418-54-21340 | HOSE | 60001- | |
| 31 | 01435-01020 | BOLT | 60001- | |
| 32 | 418-54-24560 | SHEET | 60001- | |
| 33 | 418-54-24570 | PLATE | 60001- | |
| 34 | 01435-01220 | BOLT | 60001- |
