| Item | Part No. | Part Name | Qty | Serial No. |
| 11Y-54-23100 | BRACKET ASS'Y | 5501- | ||
| 1 | 11Y-54-23511 | BRACKET | 5501- | |
| 2 | 11Y-54-21830 | SHEET | 5501- | |
| 3 | 01010-81670 | BOLT | 5501- | |
| 4 | 01643-31645 | WASHER | 5501- | |
| 5 | 04025-01024 | PIN,SPRING | 5501- | |
| 6 | 11Y-54-24230 | PLATE | 5501- |
- Главная
- Каталог запчастей
- Бульдозеры
- D37px 21a m s/n 5501 up
- Guard
- Rear guard (front bracket)
Поиск по каталогу

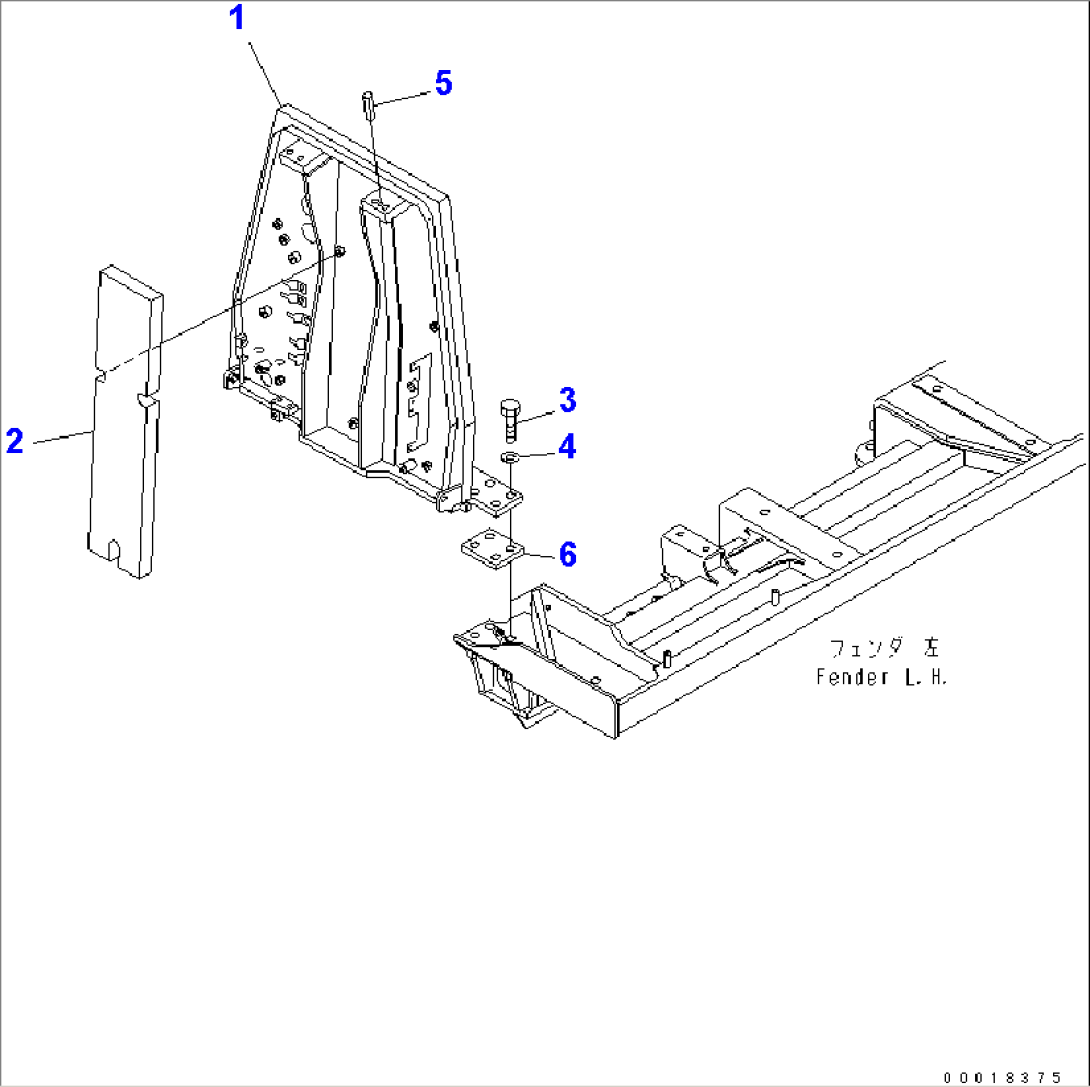

REAR GUARD (FRONT BRACKET)
