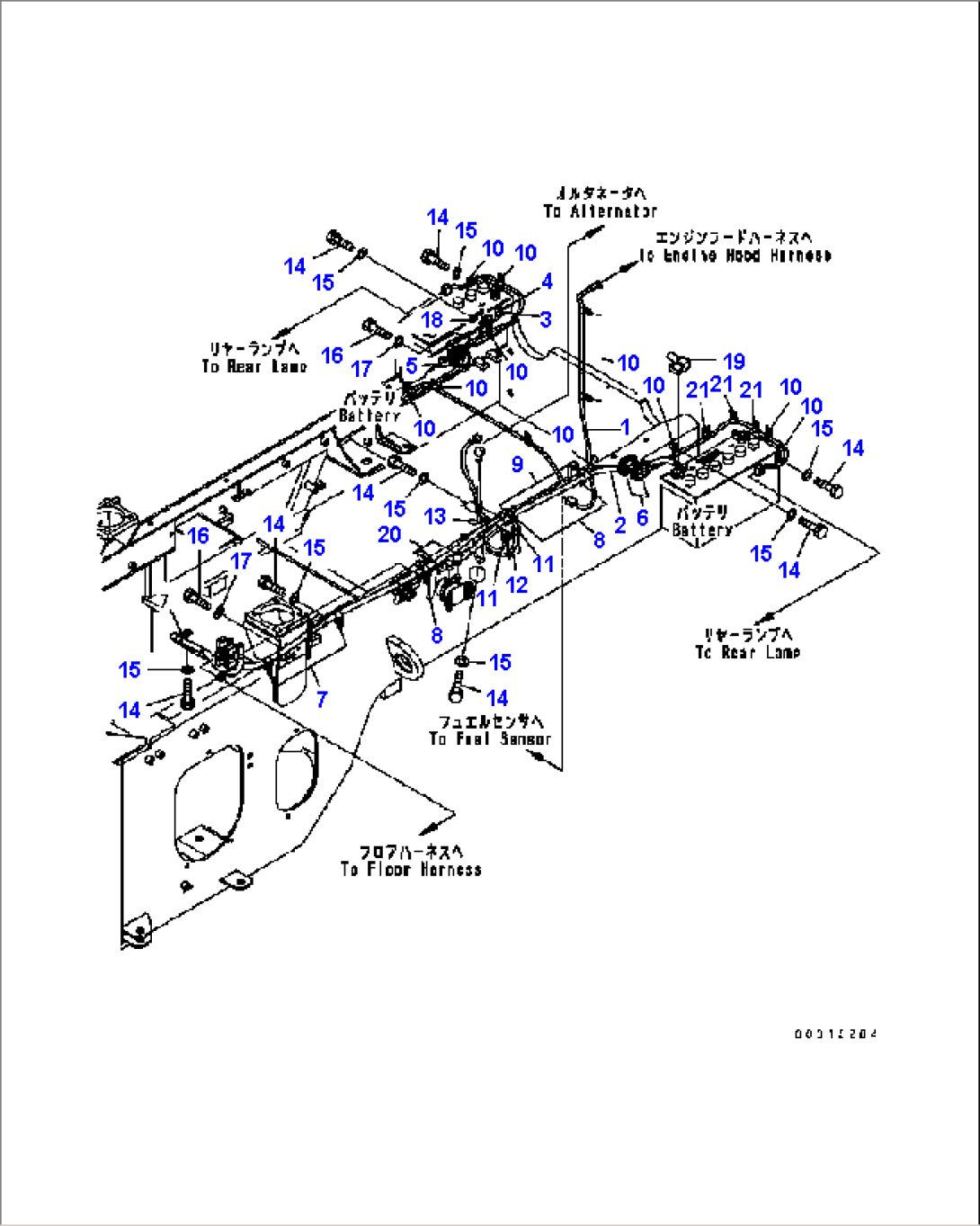

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-06-32347 | WIRING HARNESS | B10001- | |
| 2 | 418-06-B1130 | CABLE | B10001- | |
| 3 | 08192-22100 | CONNECTOR | B10001- | |
| 4 | 08191-00770 | PLUG | B10001- | |
| 5 | 08037-03620 | GROMMET | B10001- | |
| 6 | 426-09-11230 | GROMMET | B10001- | |
| 7 | 04434-52312 | CLIP | B10001- | |
| 8 | 04434-51912 | CLIP | B10001- | |
| 9 | 04434-51712 | CLIP | B10001- | |
| 10 | 04434-51012 | CLIP | B10001- | |
| 11 | 04434-51712 | CLIP | B10001- | |
| 12 | 07095-20211 | CUSHION | B10001- | |
| 13 | 04434-51012 | CLIP | B10001- | |
| 14 | 01010-81020 | BOLT | B10001- | |
| 15 | 01643-31032 | WASHER | B10001- | |
| 16 | 01010-81016 | BOLT | B10001- | |
| 17 | 01643-31032 | WASHER | B10001- | |
| 18 | 08193-21012 | CLIP | B10001- | |
| 19 | 14X-06-12280 | COVER | B10001- | |
| 20 | 08038-06031 | CAP | B10001- | |
| 21 | 421-54-15520 | CLIP | B12304- |
