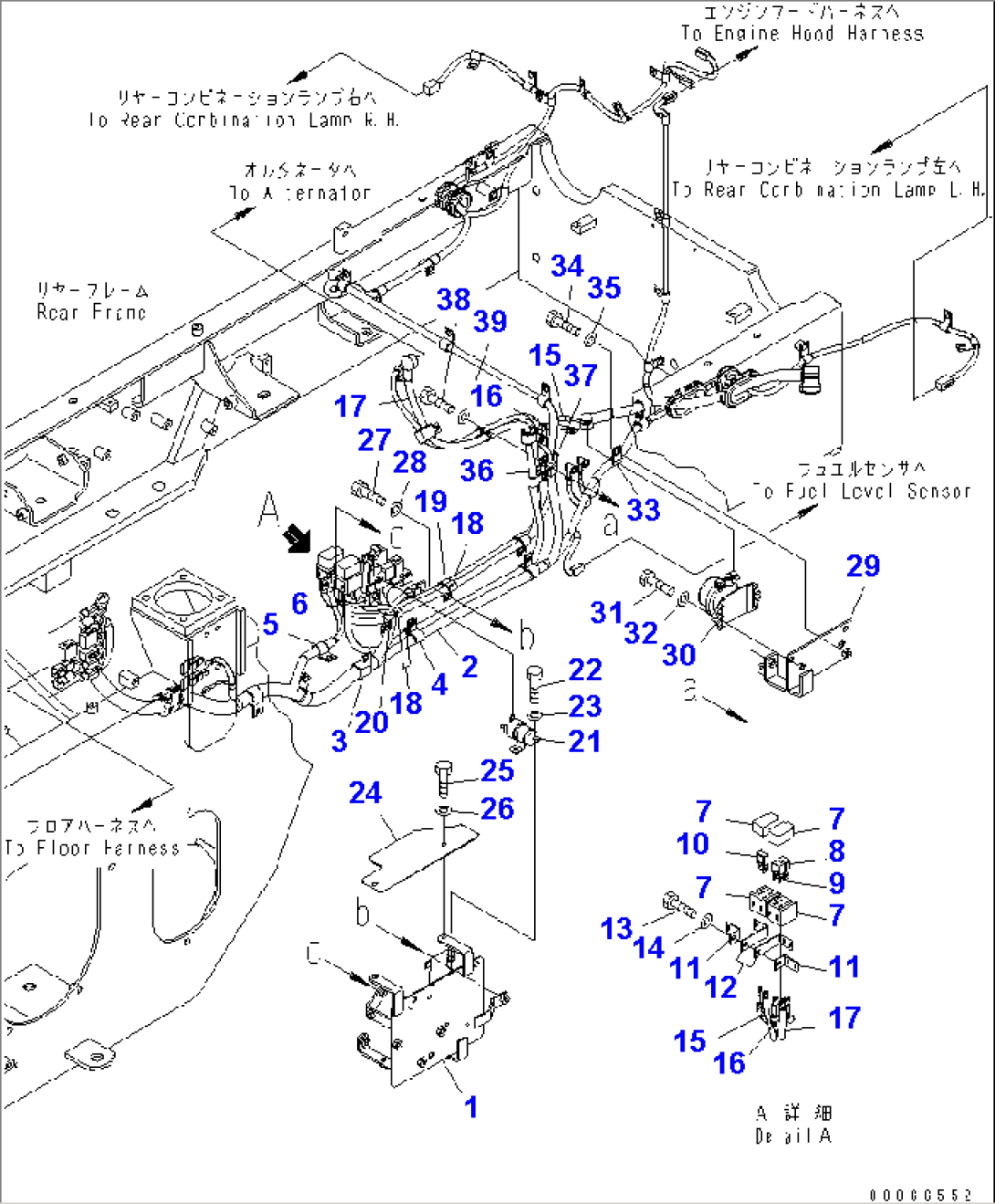

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-42410 | BRACKET | 70001- | |
| 2 | 417-06-42341 | WIRING HARNESS | 70009- | |
| 2 | 417-06-42340 | WIRING HARNESS | 70001-70008 | |
| 2 | 21J-06-13661 | DIODE | 70001- | |
| 3 | 04434-52712 | CLIP | 70001- | |
| 4 | 04434-51912 | CLIP | 70001- | |
| 5 | 04434-51712 | CLIP | 70001- | |
| 6 | 04434-51012 | CLIP | 70001- | |
| 7 | 421-06-22880 | HOLDER | 70001- | |
| 7 | 421-06-22990 | BOLT | 70001- | |
| 8 | 421-06-22830 | FUSE, 120A | 70001- | |
| 9 | 421-06-22820 | FUSE, 80A | 70001- | |
| 10 | 417-06-22610 | FUSE, 50A | 70001- | |
| 11 | 421-06-22910 | BRACKET | 70001- | |
| 12 | 421-06-22920 | BRACKET | 70001- | |
| 13 | 01010-80820 | BOLT | 70001- | |
| 14 | 01643-30823 | WASHER | 70001- | |
| 15 | 417-06-42750 | CABLE | 70001- | |
| 16 | 417-06-42760 | CABLE | 70001- | |
| 17 | 417-06-42740 | CABLE | 70001- | |
| 18 | 04434-51412 | CLIP | 70001- | |
| 19 | 04434-51012 | CLIP | 70001- | |
| 20 | 418-06-42770 | CABLE | 70001- | |
| 21 | 600-815-2170 | SWITCH,HEATER | 70001- | |
| 22 | 01010-80616 | BOLT | 70001- | |
| 23 | 01643-30623 | WASHER | 70001- | |
| 24 | 417-06-41620 | PLATE | 70001- | |
| 25 | 01010-80816 | BOLT | 70001- | |
| 26 | 01643-30823 | WASHER | 70001- | |
| 27 | 01010-81020 | BOLT | 70001- | |
| 28 | 01643-31032 | WASHER | 70001- | |
| 29 | 417-06-42450 | BRACKET | 70001- | |
| 30 | 08088-30000 | SWITCH | 70001- | |
| 31 | 01010-80830 | BOLT | 70001- | |
| 32 | 01643-30823 | WASHER | 70001- | |
| 33 | 04434-51412 | CLIP | 70001- | |
| 34 | 01010-81020 | BOLT | 70001- | |
| 35 | 01643-31032 | WASHER | 70001- | |
| 36 | 04434-51412 | CLIP | 70001- | |
| 37 | 04434-51012 | CLIP | 70001- | |
| 38 | 01010-81025 | BOLT | 70001- | |
| 39 | 01643-31032 | WASHER | 70001- |
