| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-06-32362 | BRACKET | 60001- | |
| 2 | 01010-81020 | BOLT | 60001- | |
| 3 | 01643-31032 | WASHER | 60001- | |
| 4 | 6245-81-9410 | PLATE | 60001- | |
| 5 | 600-815-9470 | SWITCH | 60001- | |
| 6 | 01010-80816 | BOLT | 60001- | |
| 7 | 01643-30823 | WASHER | 60001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 6r s/n 60001 60009
- Electrical sytem
- Rear harness (additional fuse and fuel timer switch)(#60001 )
Поиск по каталогу

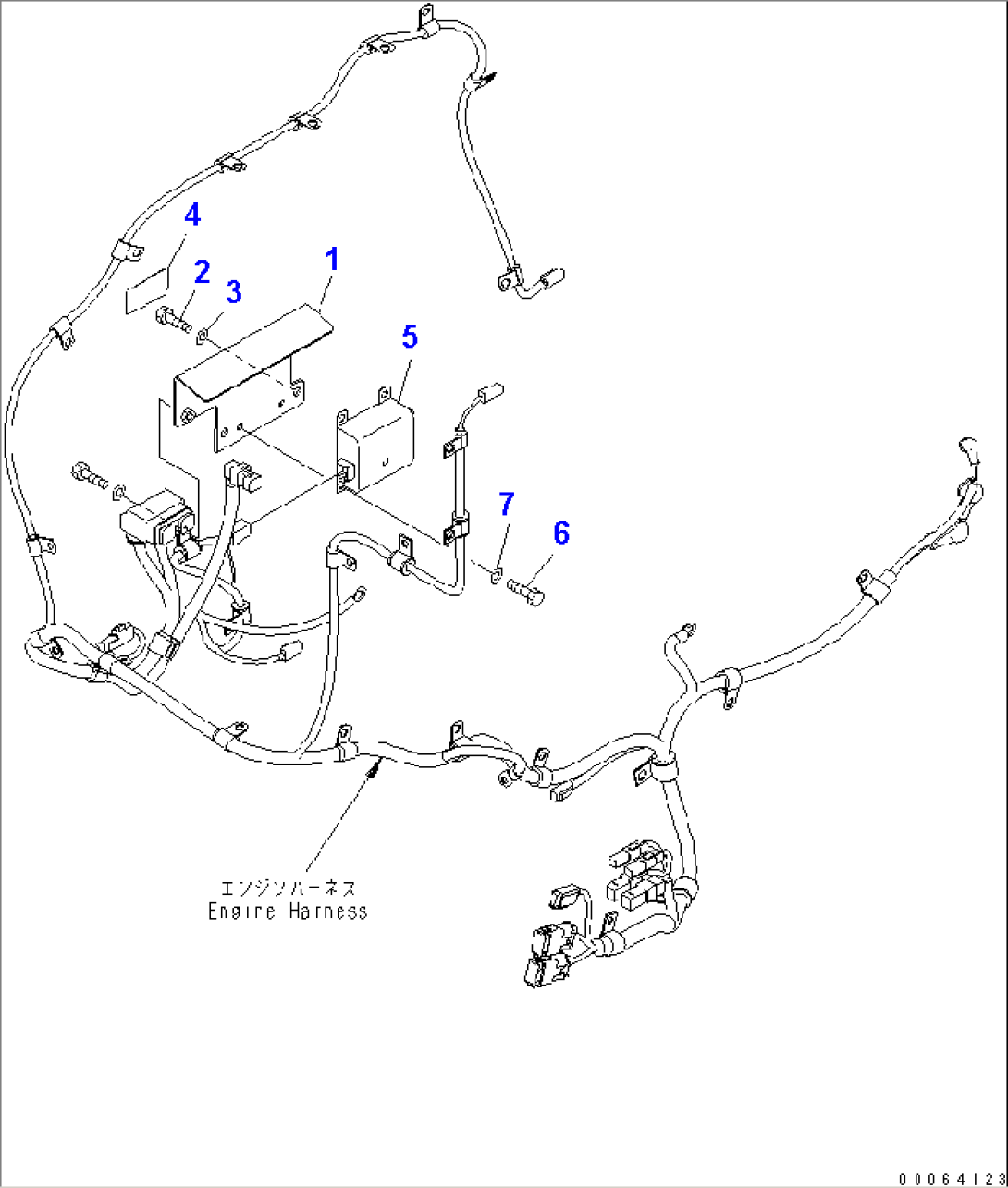

REAR HARNESS (ADDITIONAL FUSE AND FUEL TIMER SWITCH)(#60001-)
