| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-Z89-3670 | CABLE | 60002- | |
| 2 | 04434-52310 | CLIP | 60002- | |
| 3 | 01010-81020 | BOLT | 60002- | |
| 4 | 01643-31032 | WASHER | 60002- | |
| 5 | 560-43-15220 | WASHER | 60002- | |
| 6 | 01010-81030 | BOLT | 60002- | |
| 7 | 01643-31032 | WASHER | 60002- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa900 3e0 s/n 60001 60077 (tier2) (for north america)
- Electrical sytem
- Rear harness (battery isolator) (mining spec.)(#60002 )
Поиск по каталогу

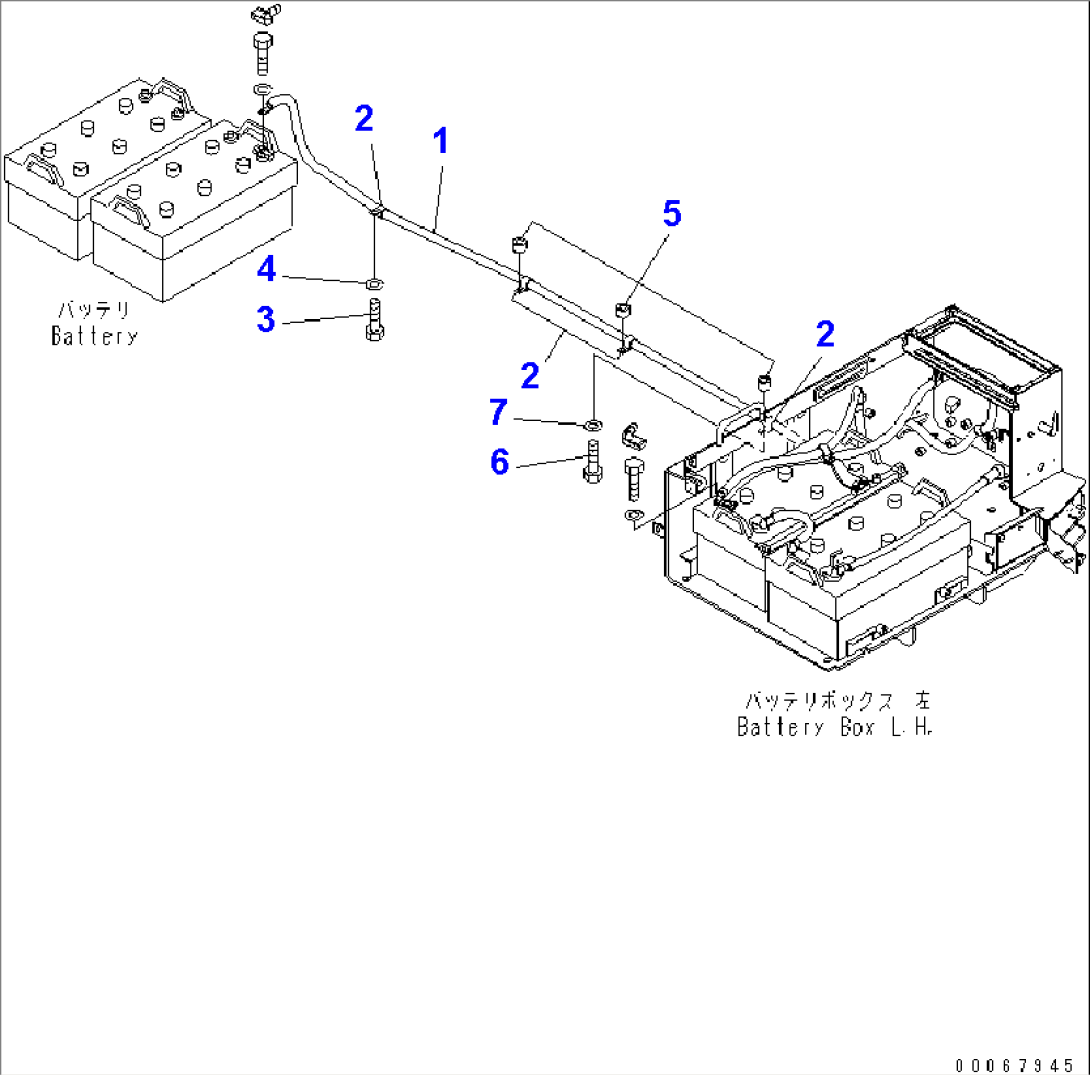

REAR HARNESS (BATTERY ISOLATOR) (MINING SPEC.)(#60002-)
