| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-06-22191 | WIRING HARNESS | 52001- | |
| 2 | 418-01-21120 | PLATE | 52001- | |
| 3 | 01435-00616 | BOLT | 52001- | |
| 4 | 01643-30823 | WASHER | 52001- | |
| 5 | 08053-01510 | CLIP | 52001- | |
| 6 | 04434-51410 | CLIP | 52001- | |
| 7 | 01435-01016 | BOLT | 52001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa800l 3 s/n 52001 up
- Electrical sytem
- Rear harness (component box line)
Поиск по каталогу

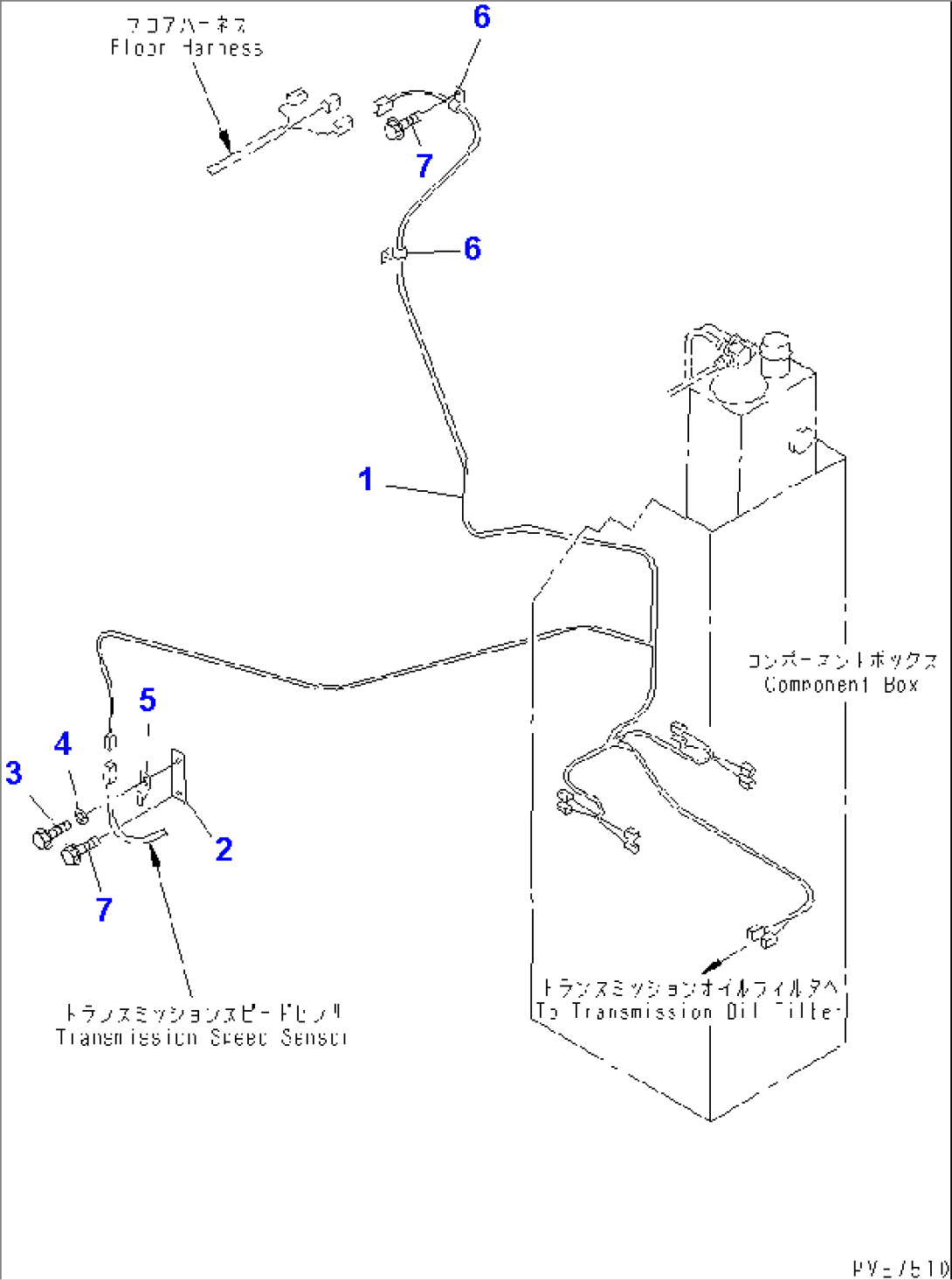

REAR HARNESS (COMPONENT BOX LINE)
