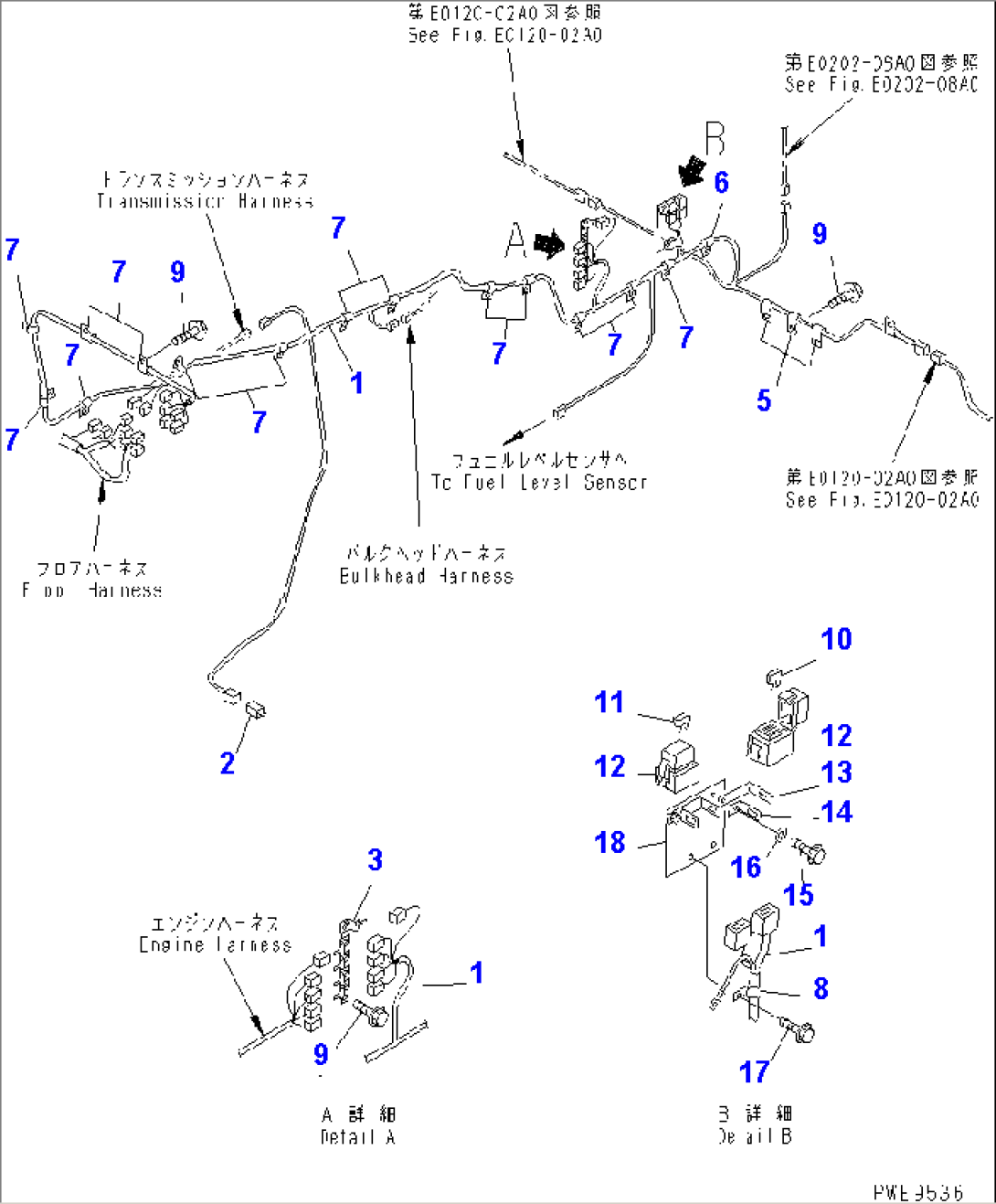

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-06-22420 | WIRING HARNESS | 50001- | |
| 08020-10000 | DIODE | 50001- | ||
| 08034-00414 | BAND | 50001- | ||
| 2 | 421-06-22750 | CONNECTOR | 50001- | |
| 3 | 427-06-22440 | PLATE | 50001- | |
| 5 | 04434-51010 | CLIP | 50001- | |
| 6 | 04434-51910 | CLIP | 50001- | |
| 7 | 04434-53412 | CLIP | 50001- | |
| 8 | 08052-12411 | CLIP | 50001- | |
| 9 | 01435-01016 | BOLT | 50001- | |
| 10 | 421-06-22830 | FUSE¤ 120A | 50001- | |
| 11 | 421-06-22840 | FUSE¤ 30A | 50001- | |
| 12 | 421-06-22880 | HOLDER | 50001- | |
| 13 | 421-06-22910 | BRACKET | 50001- | |
| 14 | 421-06-22920 | BRACKET | 50001- | |
| 15 | 01435-00816 | BOLT | 50001- | |
| 16 | 01643-30823 | WASHER | 50001- | |
| 17 | 01435-01020 | BOLT | 50001- | |
| 18 | 427-06-22720 | PLATE | 50001- |
