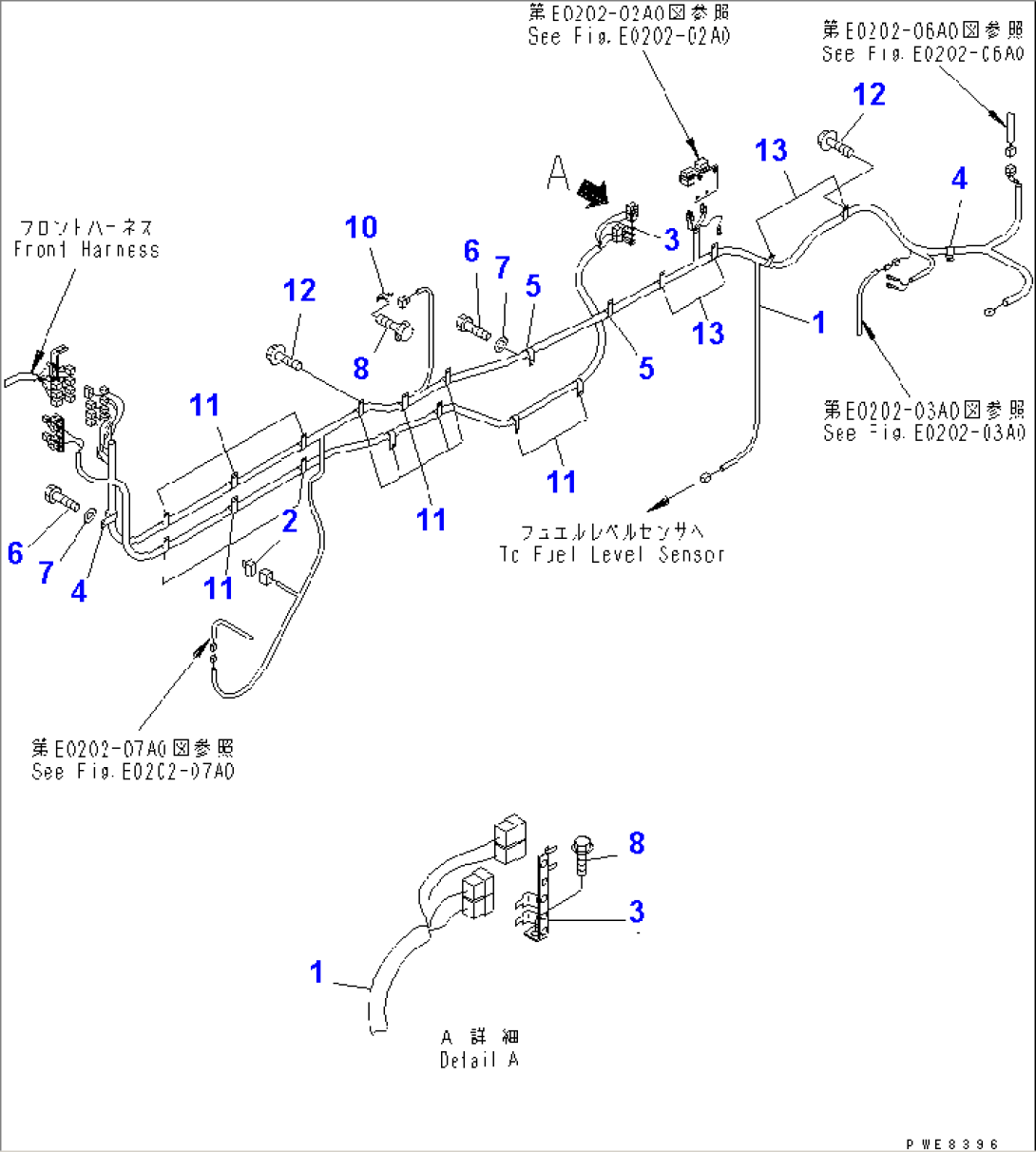

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-06-22121 | WIRING HARNESS | 50001-51000 | |
| 1 | 08020-10000 | DIODE | 50001-@ | |
| 2 | 421-06-22750 | CONNECTOR | 50001-@ | |
| 3 | 428-06-22230 | PLATE | 50001-51000 | |
| 4 | 08036-03014 | CLIP | 50001-51000 | |
| 5 | 08036-02514 | CLIP | 50001-51000 | |
| 6 | 01010-81020 | BOLT | 50001-51000 | |
| 7 | 01643-31032 | WASHER | 50001-51000 | |
| 8 | 01435-01016 | BOLT | 50001-51000 | |
| 10 | 08053-00912 | CLIP | 50001-51000 | |
| 11 | 04434-52512 | CLIP | 50001-51000 | |
| 12 | 01435-01016 | BOLT | 50001-51000 | |
| 13 | 04434-52110 | CLIP | 50001-51000 |
