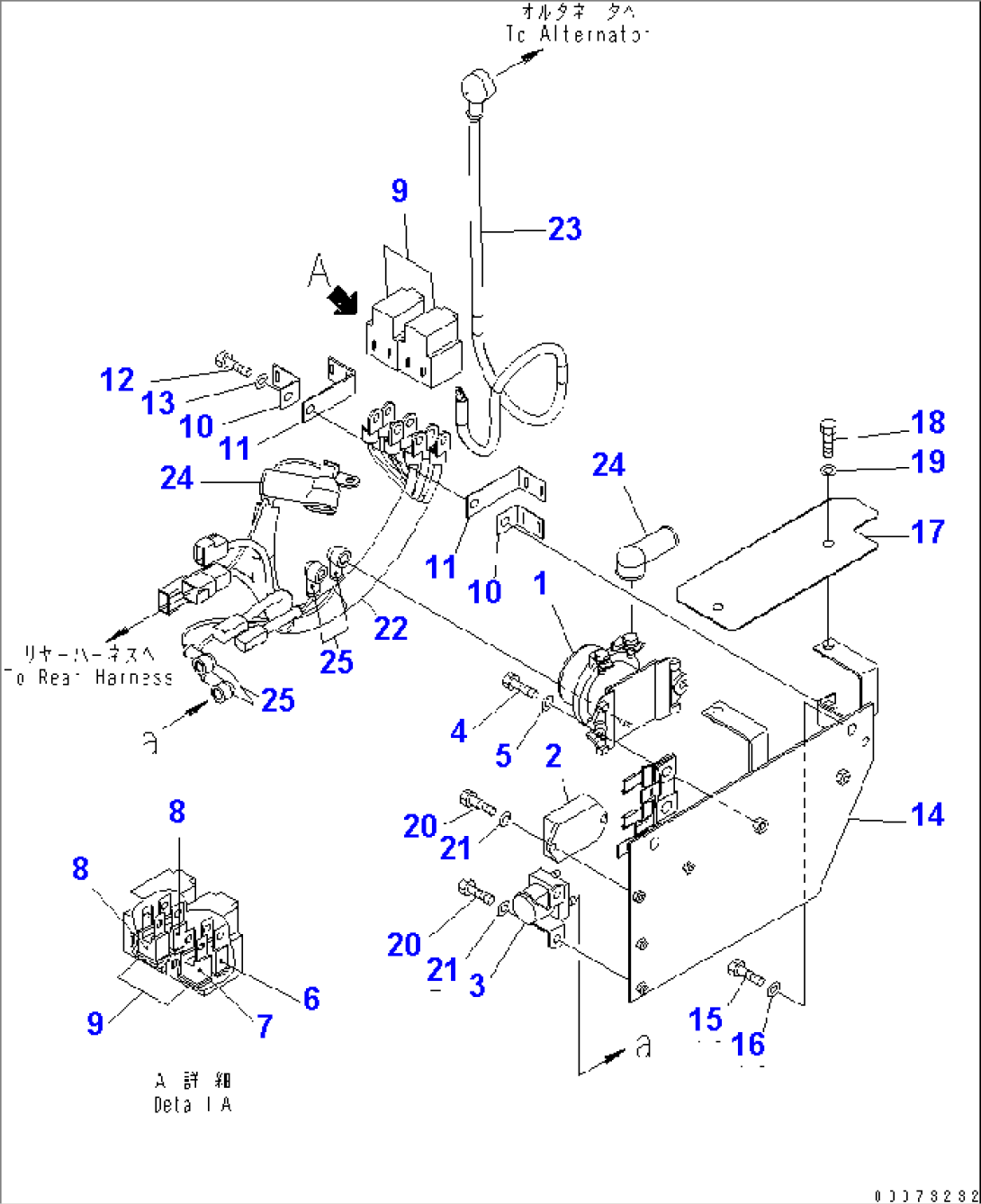

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08088-30000 | SWITCH | A89001- | |
| 2 | 600-815-9270 | TIMER | A89001- | |
| 3 | 600-815-7870 | RELAY | A89001- | |
| 4 | 01010-80830 | BOLT | A89001- | |
| 5 | 01643-30823 | WASHER | A89001- | |
| 6 | 421-06-22830 | FUSE, 120A | A89001- | |
| 7 | 421-06-22820 | FUSE, 80A | A89001- | |
| 8 | 421-06-22840 | FUSE, 30A | A89001- | |
| 9 | 421-06-22880 | HOLDER | A89001- | |
| 10 | 421-06-22910 | BRACKET | A89001- | |
| 11 | 421-06-22920 | BRACKET | A89001- | |
| 12 | 01010-80820 | BOLT | A89001- | |
| 13 | 01643-30823 | WASHER | A89001- | |
| 14 | 418-06-32414 | BRACKET | A89001- | |
| 15 | 01010-81020 | BOLT | A89001- | |
| 16 | 01643-31032 | WASHER | A89001- | |
| 17 | 418-06-31591 | COVER | A89001- | |
| 18 | 01010-80816 | BOLT | A89001- | |
| 19 | 01643-30823 | WASHER | A89001- | |
| 20 | 01010-80616 | BOLT | A89001- | |
| 21 | 01643-30623 | WASHER | A89001- | |
| 22 | 419-06-32332 | WIRING HARNESS | A89001- | |
| 23 | 418-06-32261 | WIRE | A89001- | |
| 24 | 08038-06031 | CAP | A89001- | |
| 25 | 08038-00519 | CAP | A89001- |
