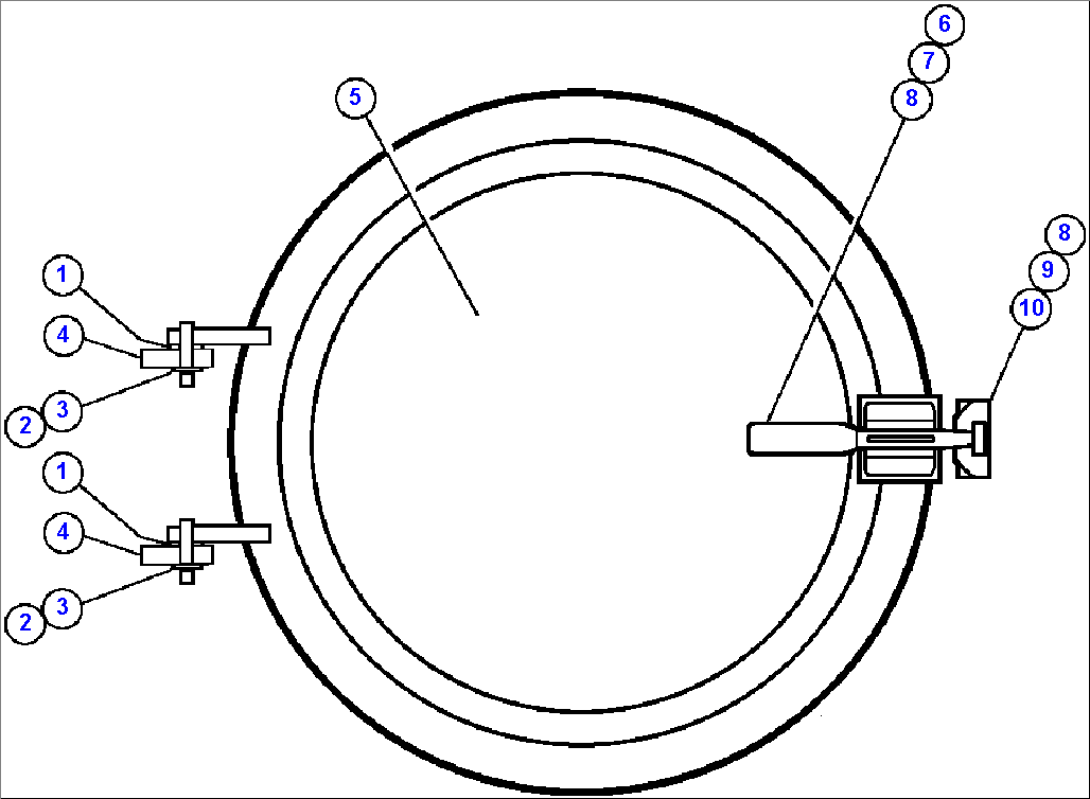

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VC4899 | FLAT WASHER - 1/2" (COPPER) | ||
| 2 | WA0360 | FLAT WASHER - 1/2" | ||
| 3 | C2303 | PIN, COTTER | ||
| 4 | TY9376 | EAR, MOUNTING - TOP | ||
| 4 | TY9377 | EAR, MOUNTING - BOTTOM | ||
| 5 | TS0737 | HATCH | ||
| 6 | PB1006 | LATCH & KEEPER SET | ||
| 7 | TD1548 | CAPSCREW - 1/4" - 20NC X 5/8" | ||
| 8 | VF6144 | FLAT WASHER - 1/4" | ||
| 9 | TD1809 | CAPSCREW - 1/4" - 20NC X 3/4" | ||
| 10 | TK7738 | SHIM | ||
| NS|12 | NOTE: NS = NOT SHOWN | |||
| NS|13 | TY1549 | SEAL, HATCH |
