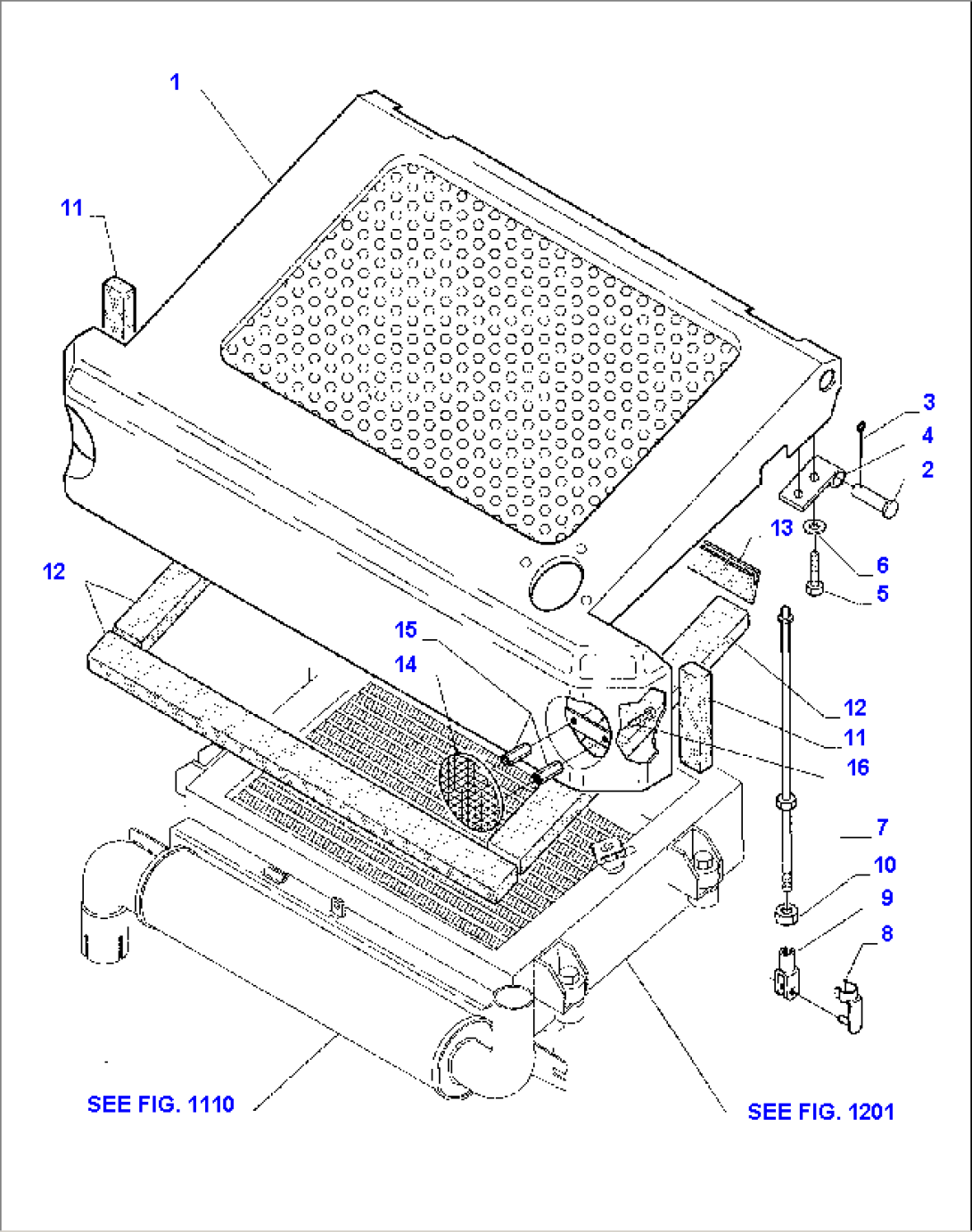

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 338805057 | HOOD, REAR | F10001- | |
| 2 | 334405613 | PIN | F10001- | |
| 3 | 802610055 | PIN, COTTER | F10001- | |
| 4 | 334405054 | HINGE | F10001- | |
| 5 | 801014065 | BOLT | F10001- | |
| 6 | 802170001 | SPRING WASHER | F10001- | |
| 7 | 338805067 | PUSHROD | F10001- | |
| 8 | 802725017 | PIN | F10001- | |
| 9 | 802720017 | FORK | F10001- | |
| 10 | 801703208 | NUT | F10001- | |
| 11 | 855711071 | GASKET | F10001- | |
| 12 | 855710073 | GASKET | F10001- | |
| 13 | 855710068 | GASKET | F10001- | |
| 14 | 885131023 | REFLEX REFLECTOR | F10001- | |
| 15 | 338814601 | SPACER | F10001- | |
| 16 | 801014023 | BOLT | F10001- | |
| SEE FIG. 1110 | ||||
| SEE FIG. 1201 |
