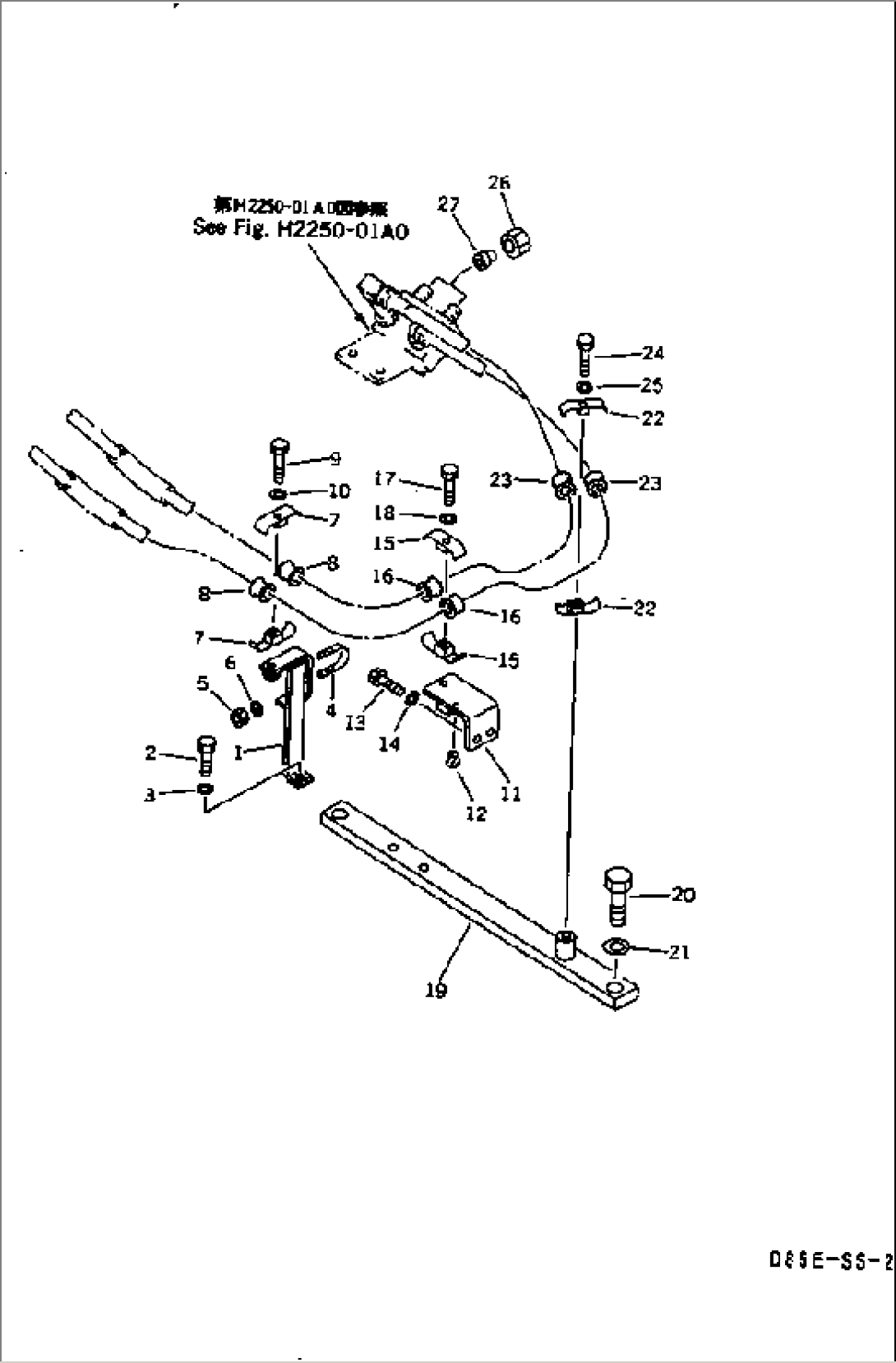

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-78-11171 | BRACKET | 3034-4000 | |
| 2 | 01010-81245 | BOLT | 3034-4000 | |
| 3 | 01643-31232 | WASHER | 3034-4000 | |
| 4 | 07283-22236 | CLIP | 3034-4000 | |
| 5 | 01599-01011 | NUT | 3034-4000 | |
| 6 | 01643-31032 | WASHER | 3034-4000 | |
| 7 | 07094-20620 | CLAMP | 3034- | |
| 8 | 07095-00628 | CUSHION | 3034- | |
| 9 | 01010-81270 | BOLT | 3034- | |
| 10 | 01643-31232 | WASHER | 3034- | |
| 11 | 14X-78-11160 | BRACKET | 3034- | |
| 12 | 07049-01215 | PLUG | 3034- | |
| 13 | 01010-81225 | BOLT | 3034- | |
| 14 | 01643-31232 | WASHER | 3034- | |
| 15 | 07094-20620 | CLAMP | 3034- | |
| 16 | 07095-00628 | CUSHION | 3034- | |
| 17 | 01010-81270 | BOLT | 3034- | |
| 18 | 01643-31232 | WASHER | 3034- | |
| 19 | 14X-78-11210 | PLATE | 3034- | |
| 20 | 01010-82485 | BOLT | 3034- | |
| 21 | 01643-32460 | WASHER | 3034- | |
| 22 | 07094-20620 | CLAMP | 3034- | |
| 23 | 07095-00628 | CUSHION | 3034- | |
| 24 | 01010-81270 | BOLT | 3034- | |
| 25 | 01643-31232 | WASHER | 3034- | |
| 26 | 07221-20628 | NUT,(FOR SHIPPING) | 3034- | |
| 27 | 07222-00616 | PLUG,(FOR SHIPPING) | 3034- |
