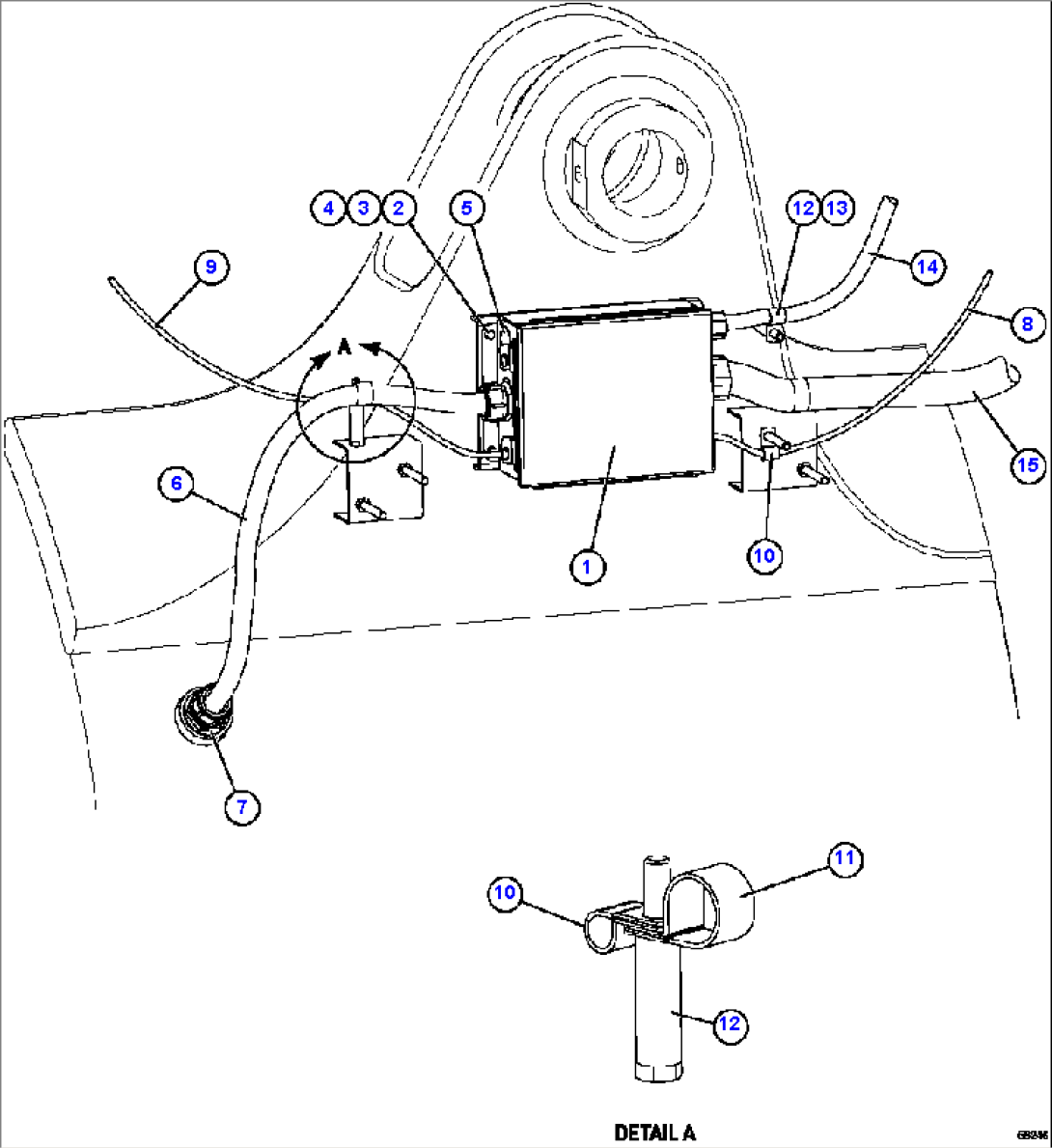

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XC2982 | JUNCTION BOX ASSEMBLY - REAR (SEE INDEX) | ||
| 2 | MM0582 | CAPSCREW - M6 X 1.00 X 20 | ||
| 3 | MM0469 | LOCKWASHER - M6 | ||
| 4 | MM0459 | FLAT WASHER - M6 | ||
| 5 | TV3555 | PLUG, BUTTON | ||
| 6 | XB7013 | HARNESS, BLOWER PRESSURE SWITCH | ||
| 7 | TC8757 | BUSHING, PIPE - 2" X 1" | ||
| 8 | 58D-06-80101 | HARNESS, PLM SENSOR - RH | ||
| 9 | 58D-06-80201 | HARNESS, PLM SENSOR - LH | ||
| 10 | WB3097 | CLAMP, CUSHIONED - 1/2" | ||
| 11 | WB3093 | CLAMP, CUSHIONED - 1" | ||
| 12 | EK9883 | SPACER | ||
| 13 | WB3922 | CLAMP, CUSHIONED - 11/16" | ||
| 14 | XB7012 | HARNESS, AXLE HOUSING | ||
| 15 | 58D-06-10091 | HARNESS, RIGHT REAR FRAMERAIL |
