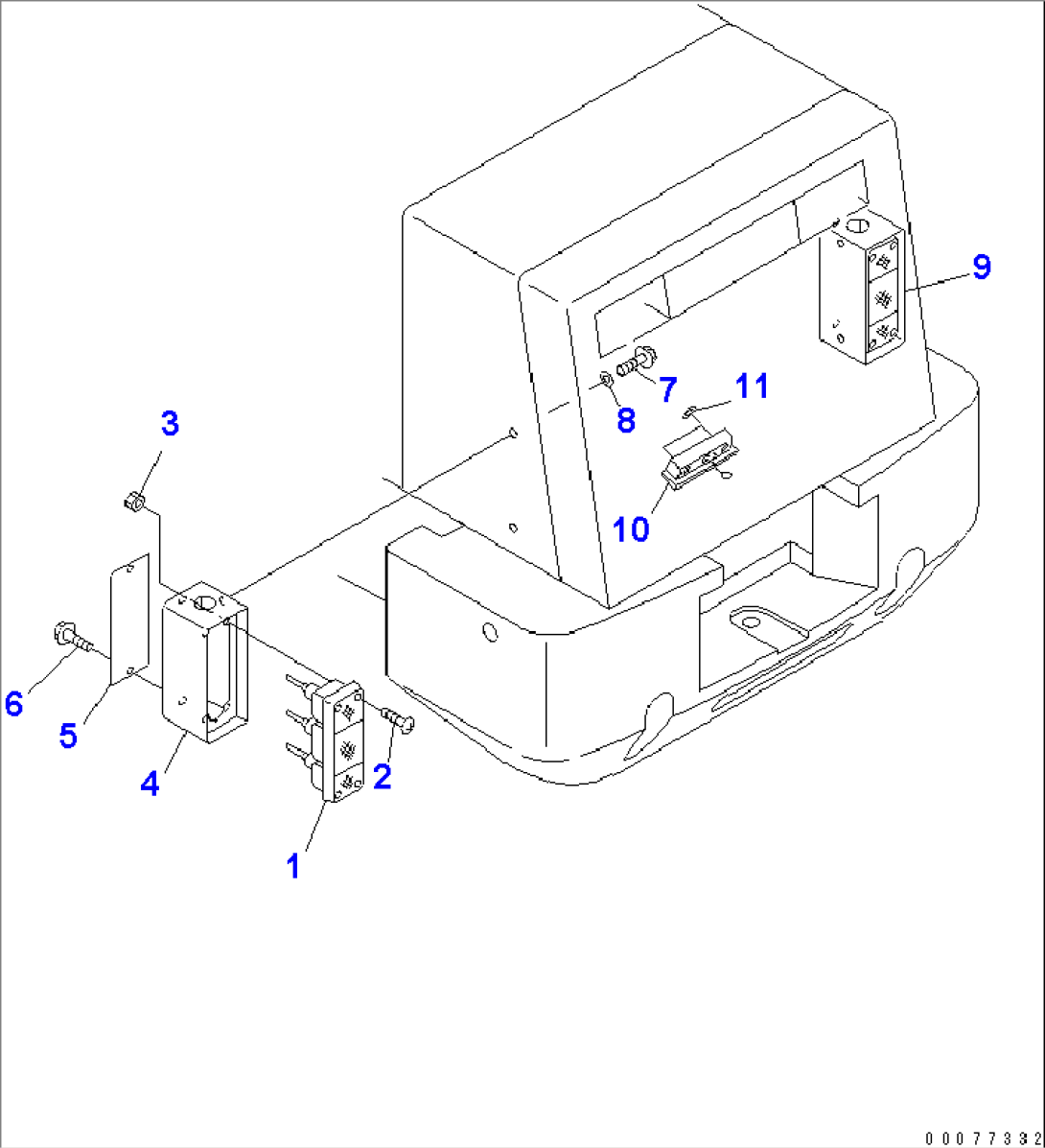

| Item | Part No. | Part Name | Qty | Serial No. |
| 421-06-23210 | LAMP ASS'Y,TAIL AND STOP LAMP | A88001- | ||
| 1 | 421-06-23220 | LENS | A88001- | |
| 08104-12420 | BULB, 25/10W | A88001- | ||
| 08105-12420 | BULB, 25W | A88001- | ||
| 2 | 01220-40535 | SCREW | A88001- | |
| 3 | 42A-06-13160 | NUT | A88001- | |
| 4 | 416-06-21170 | BRACKET,L.H. | A88001- | |
| 5 | 417-06-23350 | PLATE,COVER | A88001- | |
| 6 | 01435-01016 | BOLT | A88001- | |
| 7 | 01435-00816 | BOLT | A88001- | |
| 8 | 01643-30823 | WASHER | A88001- | |
| 9 | 416-06-21180 | BRACKET,R.H. | A88001- | |
| 10 | 08137-62400 | LAMP,LICENSE | A88001- | |
| 08110-12410 | BULB, 12W | A88001- | ||
| 11 | 01640-20610 | WASHER | A88001- |
