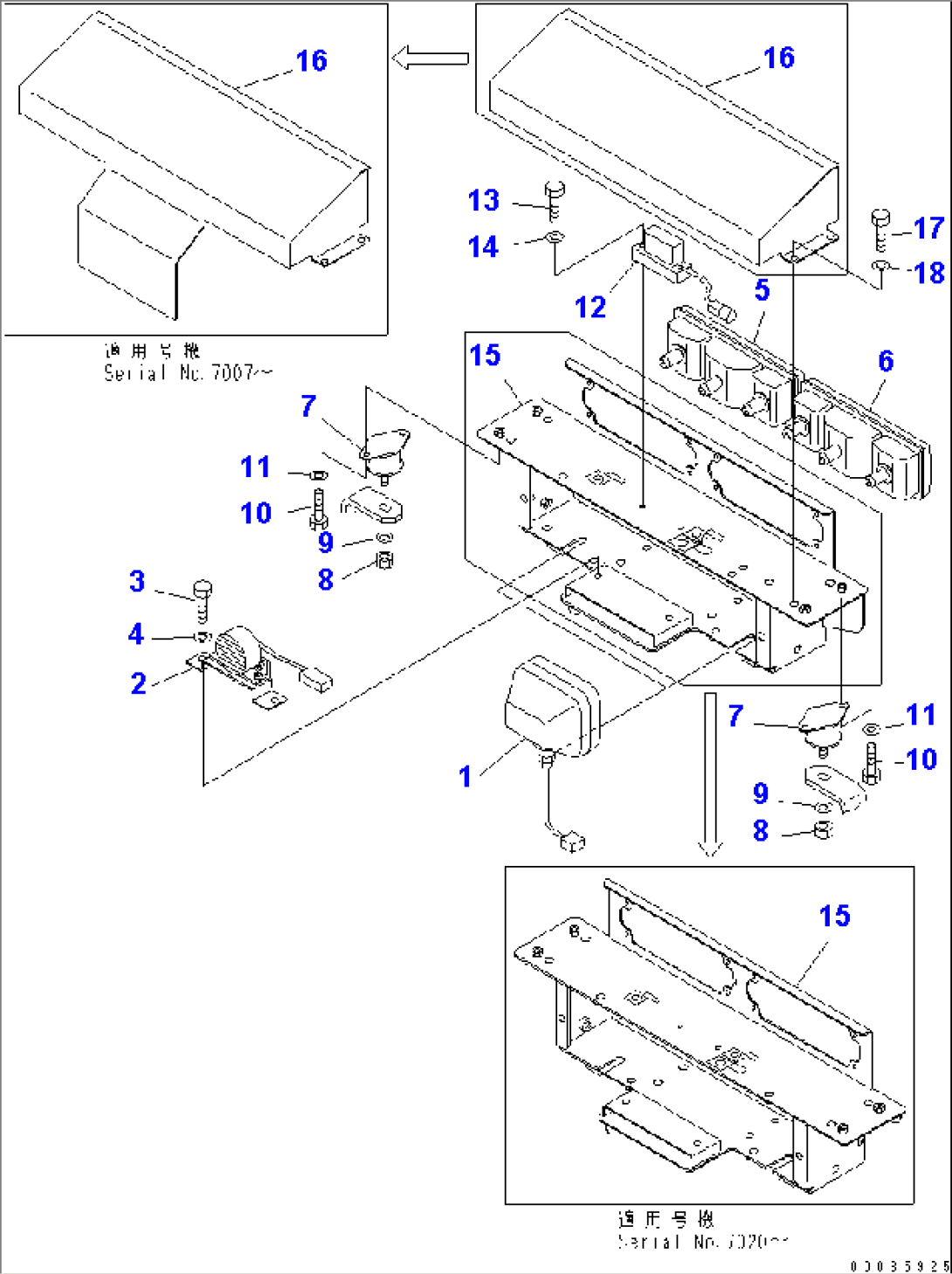

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-23350 | LAMP ASS'Y | 7001- | |
| 1 | 421-06-23320 | LENS | 7001- | |
| 1 | 421-06-23330 | BULB, 70W | 7001- | |
| 2 | 22B-06-21930 | BACK UP ALARM | 7001- | |
| 3 | 01010-80820 | BOLT | 7001- | |
| 4 | 01643-30823 | WASHER | 7001- | |
| 5 | 417-06-23320 | LAMP ASS'Y | 7001- | |
| 5 | 417-06-23340 | LENS | 7001- | |
| 5 | 08104-12420 | BULB, 25/10W | 7001- | |
| 5 | 08105-12420 | BULB, 25W | 7001- | |
| 6 | 417-06-23310 | LAMP ASS'Y | 7001- | |
| 6 | 417-06-23330 | LENS | 7001- | |
| 6 | 08104-12420 | BULB, 25/10W | 7001- | |
| 6 | 08105-12420 | BULB, 25W | 7001- | |
| 7 | 565-03-11270 | CUSHION | 7001- | |
| 8 | 01580-11008 | NUT | 7001- | |
| 9 | 01643-31032 | WASHER | 7001- | |
| 10 | 01010-80816 | BOLT | 7001- | |
| 11 | 01643-30823 | WASHER | 7001- | |
| 12 | 7861-93-5380 | SENSOR | 7001- | |
| 13 | 01010-80630 | BOLT | 7001- | |
| 14 | 01643-30623 | WASHER | 7001- | |
| 15 | 56B-06-27310 | BRACKET | 7020- | |
| 15 | 56B-06-25310 | BRACKET | 7001-7019 | |
| 16 | 56B-06-15180 | BRACKET | 7007- | |
| 16 | 56B-06-25280 | BRACKET | 7001-7006 | |
| 17 | 01010-80816 | BOLT | 7001- | |
| 18 | 01643-30823 | WASHER | 7001- |
