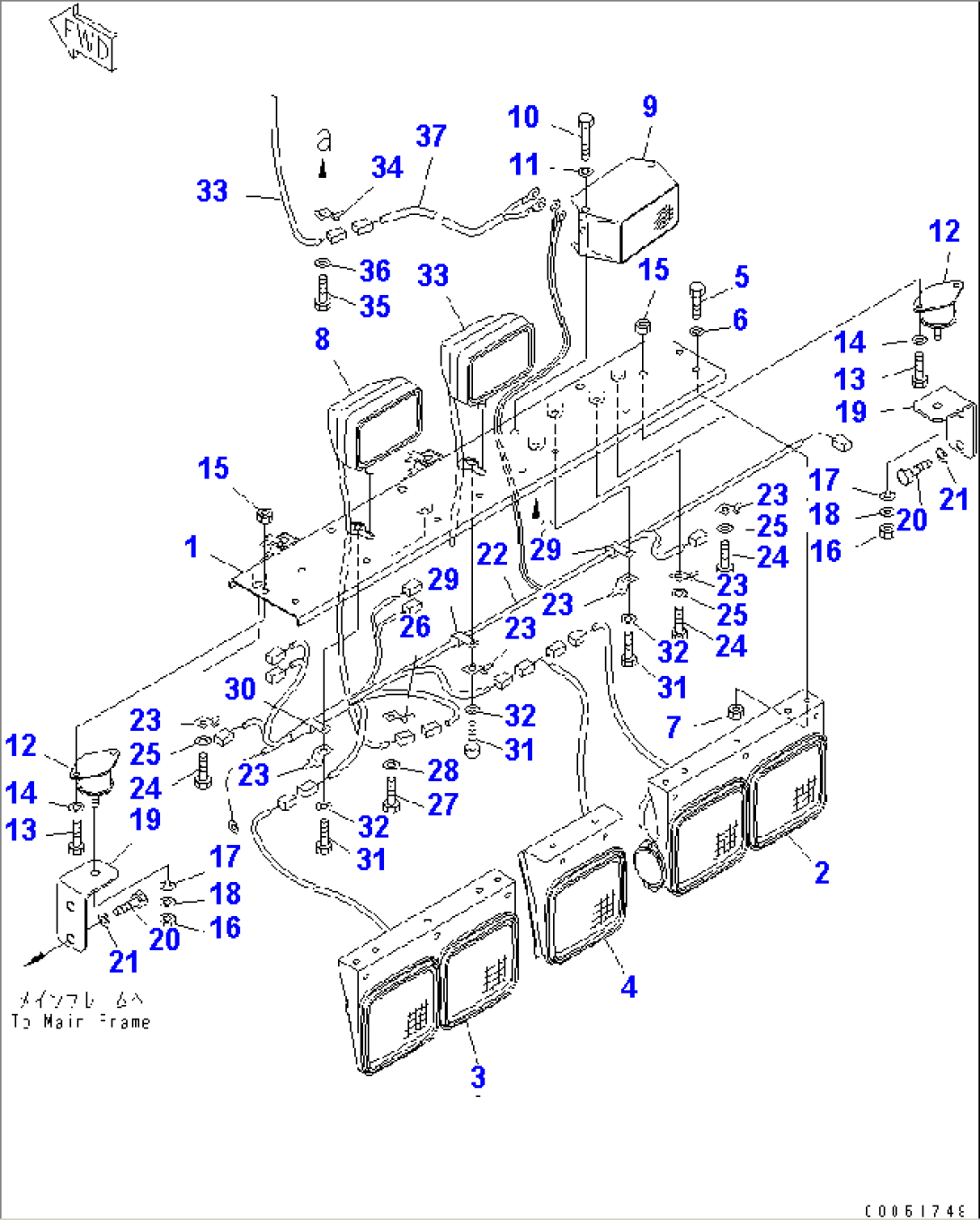

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-06-84601 | REAR LAMP ASS'Y | 11001- | ||
| 1 | 566-06-84610 | BRACKET | 11001- | |
| 2 | 56B-06-15620 | LAMP ASS'Y,COMBINATION | 11001- | |
| 2 | 566-06-14340 | LENS,RED | 11001- | |
| 2 | 566-06-14350 | LENS,YELLOW | 11001- | |
| 2 | 7821-92-1340 | CONNECTOR | 11001- | |
| 2 | 7821-92-1440 | HOLDER | 11001- | |
| 2 | 7821-92-1010 | TERMINAL | 11001- | |
| 2 | 7821-92-1110 | GROMMET | 11001- | |
| 2 | 7821-92-1130 | PLUG | 11001- | |
| 2 | 01220-30416 | SCREW | 11001- | |
| 2 | 08102-02403 | BULB, 3W | 11001- | |
| 2 | 08104-12420 | BULB, 25/10W | 11001- | |
| 2 | 08105-12420 | BULB, 25W | 11001- | |
| 3 | 56B-06-15630 | LAMP ASS'Y,COMBINATION | 11001- | |
| 3 | 566-06-14340 | LENS,RED | 11001- | |
| 3 | 566-06-14350 | LENS,YELLOW | 11001- | |
| 3 | 7821-92-1340 | CONNECTOR | 11001- | |
| 3 | 7821-92-1440 | HOLDER | 11001- | |
| 3 | 7821-92-1010 | TERMINAL | 11001- | |
| 3 | 7821-92-1130 | PLUG | 11001- | |
| 3 | 01220-30416 | SCREW | 11001- | |
| 3 | 08105-12420 | BULB, 25W | 11001- | |
| 3 | 7821-92-1130 | PLUG | 11001- | |
| 3 | 08102-02403 | BULB, 3W | 11001- | |
| 3 | 08104-12420 | BULB, 25/10W | 11001- | |
| 4 | 566-06-6D330 | LAMP | 11001- | |
| 4 | 566-06-14360 | LENS | 11001- | |
| 4 | 01220-30416 | SCREW | 11001- | |
| 4 | 08104-12420 | BULB, 25/10W | 11001- | |
| 4 | 08192-26810 | CONNECTOR | 11001- | |
| 4 | 08192-26910 | CONNECTOR | 11001- | |
| 5 | 01010-80825 | BOLT | 11001- | |
| 6 | 01643-30823 | WASHER | 11001- | |
| 7 | 01580-10806 | NUT | 11001- | |
| 8 | 421-06-23350 | LAMP ASS'Y | 11001- | |
| 8 | 421-06-23320 | LENS | 11001- | |
| 8 | 421-06-23330 | BULB, 70W | 11001- | |
| 9 | 08164-B0000 | BACK UP ALARM | 11001- | |
| 10 | 01010-81095 | BOLT | 11001- | |
| 11 | 01643-31032 | WASHER | 11001- | |
| 12 | 565-03-11270 | CUSHION | 11001- | |
| 13 | 01010-80820 | BOLT | 11001- | |
| 14 | 01643-30823 | WASHER | 11001- | |
| 15 | 01580-10806 | NUT | 11001- | |
| 16 | 01580-11008 | NUT | 11001- | |
| 17 | 01602-21030 | WASHER | 11001- | |
| 18 | 01643-31032 | WASHER | 11001- | |
| 19 | 566-06-84340 | BRACKET | 11001- | |
| 20 | 01010-81220 | BOLT | 11001- | |
| 21 | 01643-31232 | WASHER | 11001- | |
| 22 | 566-06-84121 | WIRING HARNESS | 11001- | |
| 23 | 08193-21012 | CLIP | 11001- | |
| 24 | 01010-81020 | BOLT | 11001- | |
| 25 | 01643-31032 | WASHER | 11001- | |
| 26 | 08053-01512 | CLIP | 11001- | |
| 27 | 01010-81020 | BOLT | 11001- | |
| 28 | 01643-31032 | WASHER | 11001- | |
| 29 | 04434-51010 | CLIP | 11001- | |
| 30 | 04434-51510 | CLIP | 11001- | |
| 31 | 01010-81020 | BOLT | 11001- | |
| 32 | 01643-31032 | WASHER | 11001- | |
| 33 | 421-06-23350 | LAMP ASS'Y | 11001- | |
| 33 | 421-06-23320 | LENS | 11001- | |
| 33 | 421-06-23330 | BULB, 70W | 11001- | |
| 34 | 08053-01512 | CLIP | 11001- | |
| 35 | 01010-81020 | BOLT | 11001- | |
| 36 | 01643-31032 | WASHER | 11001- | |
| 37 | 566-86-81430 | WIRING HARNESS | 11001- |
