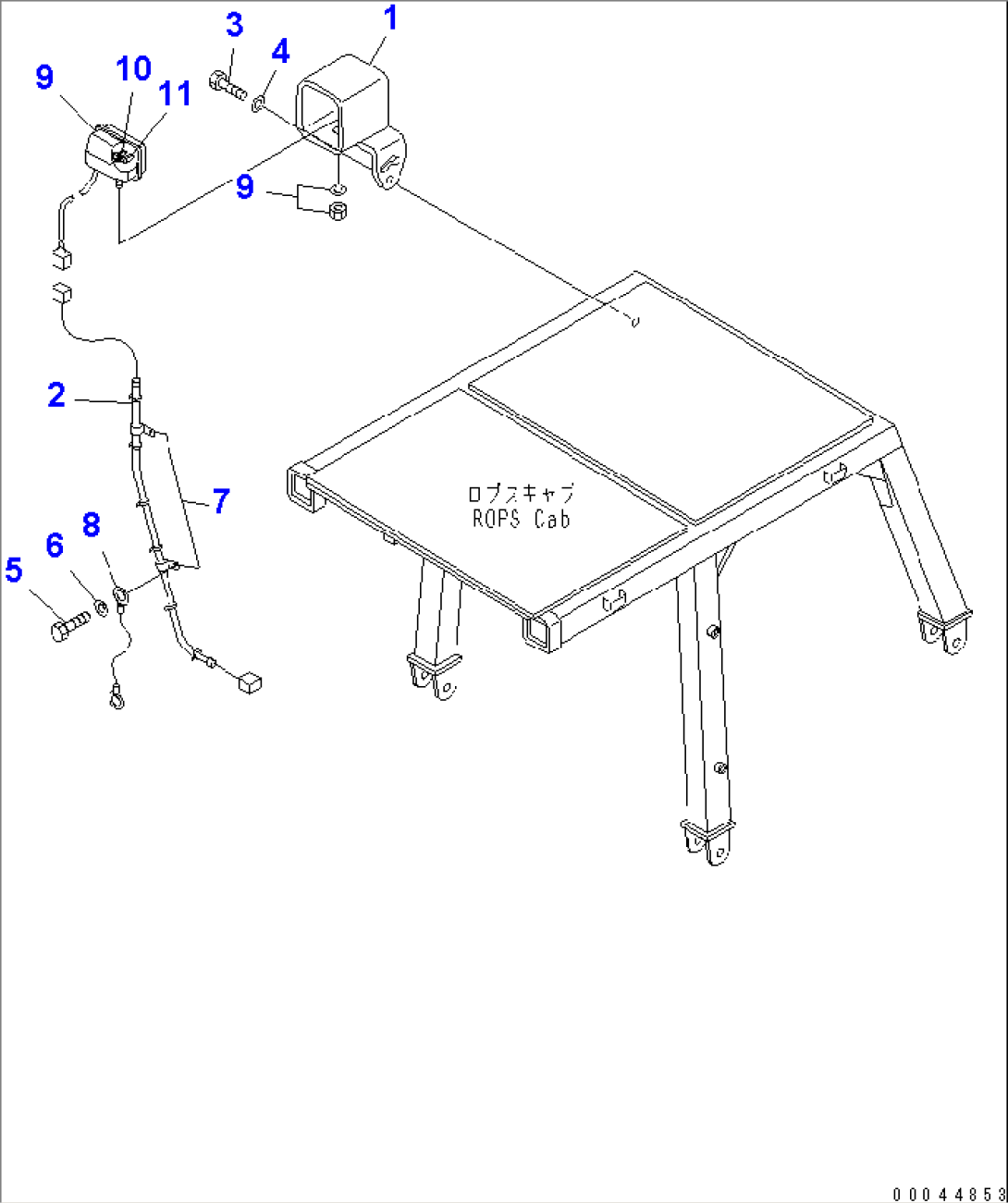

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-06-42520 | COVER | 36537- | |
| 2 | 154-06-42350 | WIRE ASS'Y | 36537- | |
| 3 | 01010-81235 | BOLT | 36537- | |
| 4 | 01643-31232 | WASHER | 36537- | |
| 5 | 01010-81016 | BOLT | 36537- | |
| 6 | 01643-31032 | WASHER | 36537- | |
| 7 | 08035-01510 | CLIP | 36537- | |
| 8 | 195-978-2280 | WIRE | 36537- | |
| 9 | 17A-06-17941 | LAMP ASS'Y | 37890- | |
| 9 | \0\17A-06-17940 | LAMP ASS'Y | 36537-37889 | |
| 10 | 17A-06-17970 | BULB, 70W | 36537- | |
| 11 | 17A-06-17980 | SLEEVE | 36537- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85a 21b s/n 36537 up (custom s6d125e 2)
- Electrical system
- Rear lamp (with rops)
