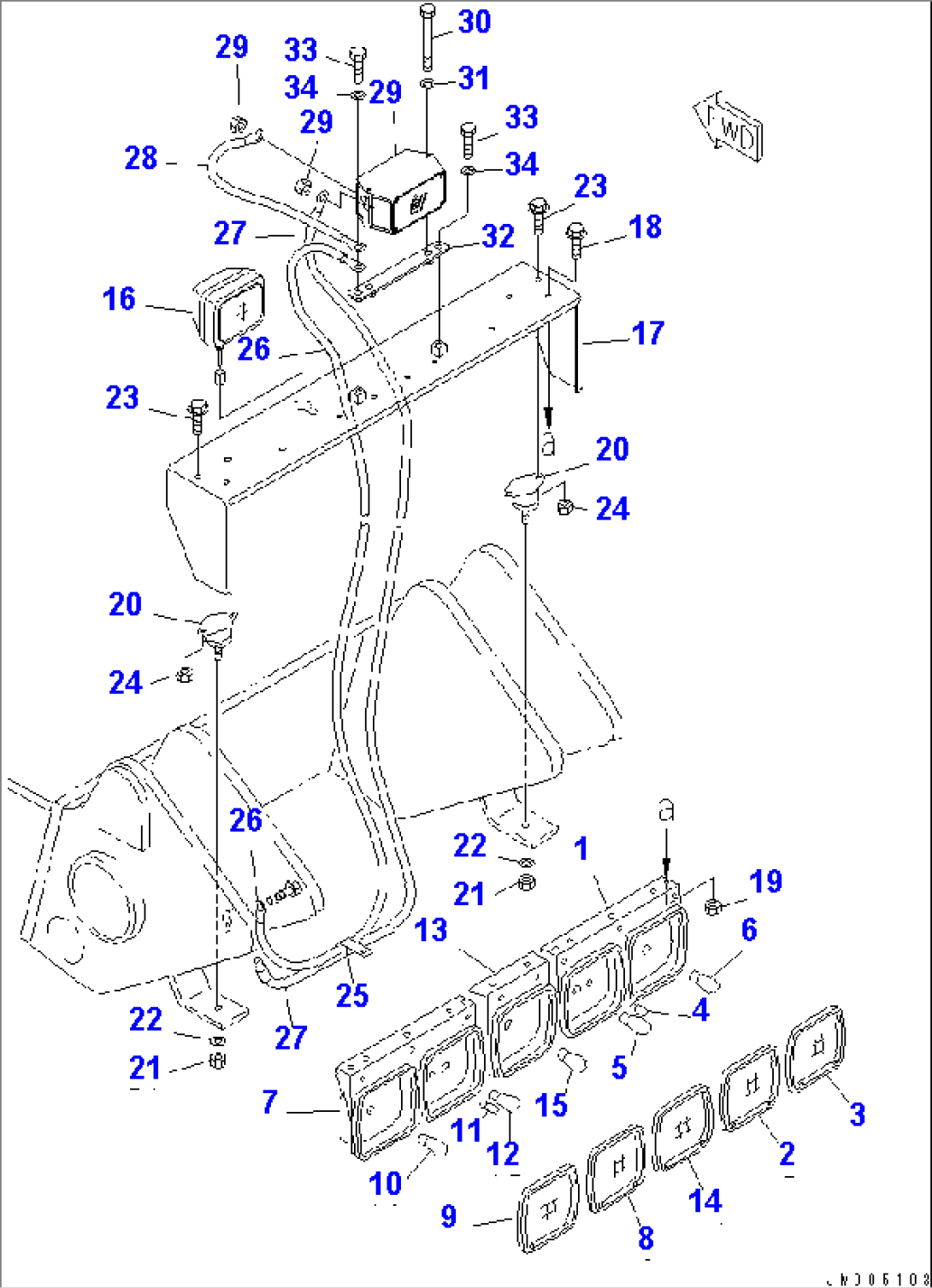

| Item | Part No. | Part Name | Qty | Serial No. |
| 567-06-71902 | REAR LAMP ASS'Y | 1601- | ||
| 1 | 566-06-14311 | LAMP ASS'Y,R.H. | 1001- | |
| 2 | 566-06-14340 | LENS | 1001- | |
| 3 | 566-06-14350 | LENS | 1001- | |
| 4 | 08102-02403 | BULB, 3W | 1001- | |
| 5 | 08104-12420 | BULB, 25/10W | 1001- | |
| 6 | 08105-12420 | BULB, 25W | 1001- | |
| 7 | 566-06-14321 | LAMP ASS'Y,L.H. | 1001- | |
| 8 | 566-06-14340 | LENS | 1001- | |
| 9 | 566-06-14350 | LENS | 1001- | |
| 10 | 08105-12420 | BULB, 25W | 1001- | |
| 11 | 08102-02403 | BULB, 3W | 1001- | |
| 12 | 08104-12420 | BULB, 25/10W | 1001- | |
| 13 | 566-06-14331 | LAMP | 1001- | |
| 14 | 566-06-14360 | LENS | 1001- | |
| 15 | 08104-12420 | BULB, 25/10W | 1001- | |
| 16 | 421-06-23350 | LAMP ASS'Y,WORKING | 1693- | |
| 16 | 421-06-23320 | LENS | 1693- | |
| 16 | 421-06-23330 | BULB, 70W | 1693- | |
| 17 | 567-06-72132 | BRACKET | 1693- | |
| 18 | 01435-00825 | BOLT | 1001- | |
| 19 | 01580-10806 | NUT | 1001- | |
| 20 | 565-03-11270 | CUSHION | 1001- | |
| 21 | 01580-11008 | NUT | 1001- | |
| 22 | 01643-31032 | WASHER | 1001- | |
| 23 | 01435-00816 | BOLT | 1001- | |
| 24 | 01580-10806 | NUT | 1001- | |
| 25 | 08036-10810 | CLIP | 1001- | |
| 26 | 567-06-71180 | CABLE | 1693- | |
| 27 | 287-06-11350 | CABLE | 1275- | |
| 28 | 561-85-61450 | CABLE | 1601- | |
| 29 | 08164-C0000 | BUZZER | 1601- | |
| 30 | 01011-81000 | BOLT | 1602- | |
| 31 | 01643-31032 | WASHER | 1601- | |
| 32 | 567-06-72190 | PLATE | 1602- | |
| 33 | 01010-81020 | BOLT | 1602- | |
| 34 | 01643-31032 | WASHER | 1602- |
