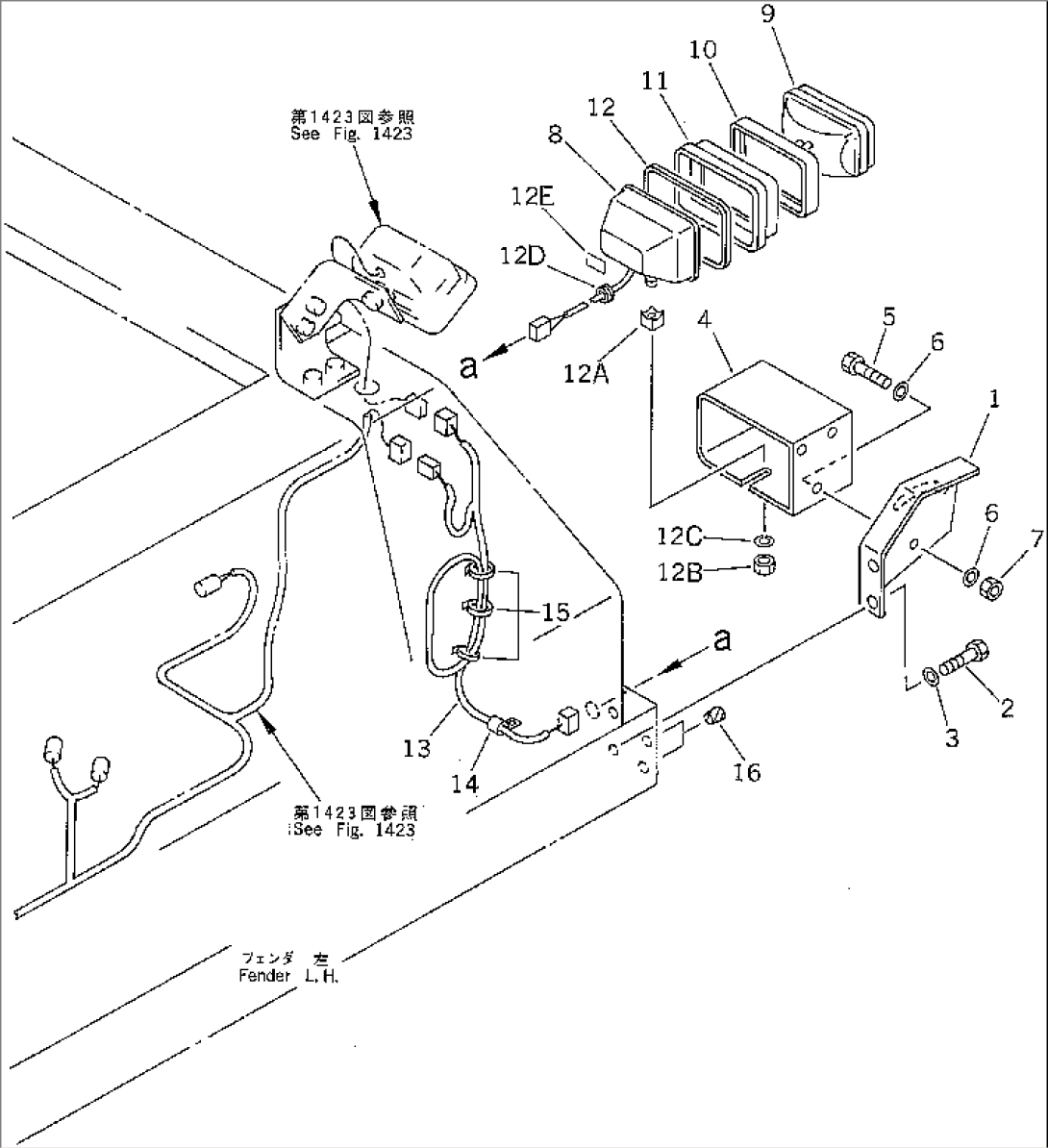

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\154-06-X2111) | REAR LAMP GROUP | 35483- | |
| G-1 | (\8\154-06-X2110) | REAR LAMP GROUP | 35001-35482 | |
| ==================== | ||||
| 1 | 154-06-41510 | BRACKET | 35001- | |
| 2 | 01010-51845 | BOLT | 35001- | |
| 3 | 01643-31845 | WASHER | 35001- | |
| 4 | 154-06-41480 | COVER | 35001- | |
| 5 | 01010-51240 | BOLT | 35001- | |
| 6 | 01643-31232 | WASHER | 35001- | |
| 7 | 01580-01210 | NUT | 35001- | |
| 23S-05-28210 | LAMP ASS'Y | 35483- | ||
| 22W-06-12381 | LAMP ASS'Y | 35001-35482 | ||
| 8 | 203-06-56160 | HOUSING | 35483- | |
| 22W-06-12280 | HOUSING | 35001-35482 | ||
| 9 | 22W-06-12170 | BULB | 35001- | |
| 10 | 203-06-56180 | RING | 35483- | |
| 22W-06-12120 | RING | 35001-35482 | ||
| 11 | 22W-06-12290 | CUSHION | 35001- | |
| 203-06-56190 | RING | 35483- | ||
| 12 | 22W-06-12130 | RING | 35001-35482 | |
| 12A | 22W-06-12160 | SEAT | 35483- | |
| 12B | 01582-11411 | NUT | 35483- | |
| 12C | 01602-21442 | WASHER,SPRING | 35483- | |
| 12D | 08037-01008 | GROMMET | 35483- | |
| 12E | 23S-05-28220 | PLATE¤ NAME | 35483- | |
| 13 | 154-06-41490 | WIRING HARNESS | 35001- | |
| 14 | 08036-11214 | CLIP | 35001- | |
| ==================== | ||||
| 15 | 08034-00519 | BAND | 35001- | |
| 16 | 07049-01822 | PLUG | 35001- |
