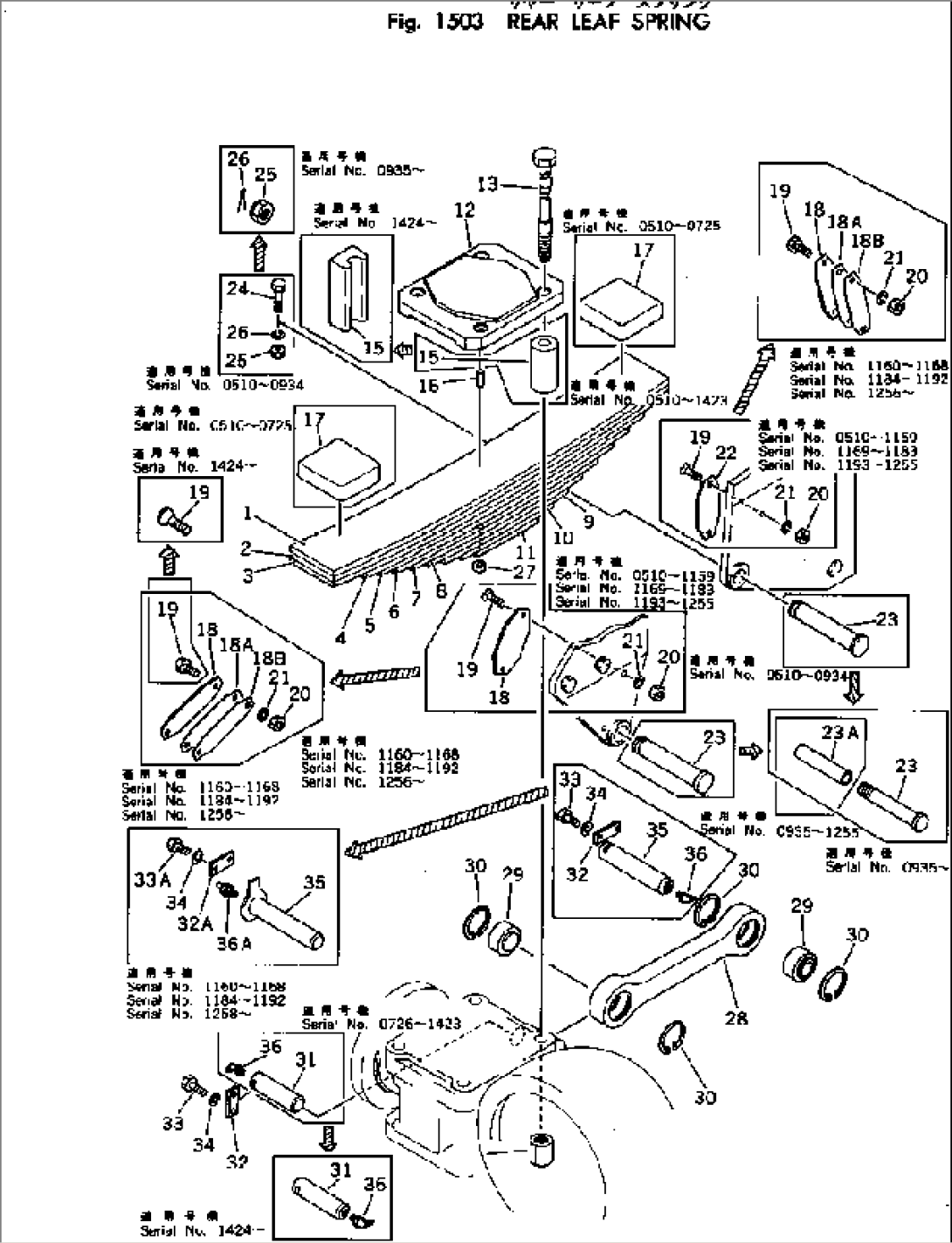

| Item | Part No. | Part Name | Qty | Serial No. |
| 565-50-72100 | SPRING ASS'Y | 510- | ||
| 1 | 565-50-72110 | LEAF,1ST | 510- | |
| 2 | 565-50-72120 | LEAF,2ND | 510- | |
| 3 | 565-50-72130 | LEAF,3RD | 510- | |
| 4 | 565-50-72140 | LEAF,4TH | 510- | |
| 5 | 565-50-72150 | LEAF,5TH | 510- | |
| 6 | 565-50-72160 | LEAF,6TH | 510- | |
| 7 | 565-50-72170 | LEAF,7TH | 510- | |
| 8 | 565-50-72180 | LEAF,8TH | 510- | |
| 9 | 565-50-72190 | LEAF,9TH | 510- | |
| 10 | 565-50-72210 | LEAF,10TH | 510- | |
| 11 | 565-50-72220 | LEAF,11TH | 510- | |
| 12 | 560-50-12123 | SEAT | 510-934 | |
| 565-50-12121 | BRACKET | 1256- | ||
| 565-50-12120 | BRACKET | 935-1255 | ||
| 13 | 565-50-52132 | BOLT | 510- | |
| 14 | 565-50-12140 | NUT | 947- | |
| 560-50-12142 | NUT | 510-946 | ||
| 15 | 565-50-12152 | COLLAR | 1424- | |
| \0\565-50-12151 | PIPE | 510-1423 | ||
| 16 | 560-50-12160 | PIN | 510- | |
| 17 | 560-50-12212 | SEAT (WELDED) | 510-725 | |
| 18 | 560-50-12351 | PLATE | 1424- | |
| \3\560-50-12350 | PLATE | 1256-1423 | ||
| (565-50-12351(1){565-50-12390(2))} | ||||
| \3\560-50-12350 | PLATE | 1184-1192 | ||
| (565-50-12351(1){565-50-12390(2))} | ||||
| 565-50-12331 | PLATE | 1169-1183 | ||
| \3\565-50-12350 | PLATE | 1160-1168 | ||
| (565-50-12351(1){565-50-12390(2))} | ||||
| 565-50-12331 | PLATE | 726-1159 | ||
| 565-50-12310 | PLATE | 510-725 | ||
| 18A | 565-50-12360 | SHIM | 1256-1423 | |
| 565-50-12360 | SHIM | 1184-1192 | ||
| 565-50-12360 | SHIM | 1160-1168 | ||
| 18B | 565-50-12370 | SHIM | 1424- | |
| 565-50-12370 | SHIM | 1256-1423 | ||
| 565-50-12370 | SHIM | 1184-1192 | ||
| 565-50-12370 | SHIM | 1160-1168 | ||
| 19 | 560-50-12390 | BOLT | 1424- | |
| 01010-31240 | BOLT | 1256-1423 | ||
| 560-50-12320 | BOLT | 1193-1255 | ||
| 01010-31240 | BOLT | 1184-1192 | ||
| 560-50-12320 | BOLT | 1169-1183 | ||
| 01010-31240 | BOLT | 1160-1168 | ||
| 560-50-12320 | BOLT | 510-1159 | ||
| 20 | 01582-01210 | NUT | 510- | |
| 21 | 01602-21236 | WASHER | 510- | |
| 22 | 560-50-12331 | PLATE | 1193-1255 | |
| \3\560-50-12350 | PLATE | 1184-1192 | ||
| (565-50-12351(1){565-50-12390(2))} | ||||
| 560-50-12331 | PLATE | 1169-1183 | ||
| \3\565-50-12331 | PLATE | 1160-1168 | ||
| (565-50-12351(1){565-50-12390(2))} | ||||
| 565-50-12331 | PLATE | 510-1159 | ||
| 23 | 565-50-12340 | PIN | 726-934 | |
| 560-50-12341 | PIN | 510-725 | ||
| 565-50-12170 | PIN | 935- | ||
| 23A | 565-50-12160 | PIPE | 935-1255 | |
| 24 | 01010-51275 | BOLT | 510-934 | |
| 25 | 01593-03018 | NUT | 935- | |
| 01580-01210 | NUT | 510-934 | ||
| 26 | 01602-01236 | WASHER | 510-934 | |
| 04050-06045 | PIN | 935- | ||
| 27 | 565-50-12290 | BOSS | 510- | |
| 28 | 565-50-11170 | ROD | 726- | |
| 29 | 567-50-11450 | BEARING | 726- | |
| 30 | 04065-08025 | RING | 726- | |
| 560-22-11730 | PIN | 726-1423 | ||
| 31 | 567-50-11510 | PIN | 1424- | |
| 32 | 560-50-11461 | PLATE | 1424- | |
| 560-50-11461 | PLATE | 1256-1423 | ||
| 560-50-11461 | PLATE | 1193-1255 | ||
| 560-50-11461 | PLATE | 1184-1192 | ||
| 560-50-11461 | PLATE | 1169-1183 | ||
| 560-50-11461 | PLATE | 1160-1168 | ||
| 565-50-11460 | PLATE | 726-1159 | ||
| 32A | 281-70-15290 | PLATE | 1256- | |
| 281-70-15290 | PLATE | 1184-1192 | ||
| 281-70-15290 | PLATE | 1160-1168 | ||
| 33 | 01010-31220 | BOLT | 1256- | |
| 01010-31220 | BOLT | 1193-1255 | ||
| 01010-31220 | BOLT | 1184-1192 | ||
| 01010-31220 | BOLT | 1169-1183 | ||
| 01010-31220 | BOLT | 1160-1168 | ||
| 01010-31220 | BOLT | 726-1159 | ||
| 33A | 01010-31225 | BOLT | 1256- | |
| 01010-31225 | BOLT | 1184-1192 | ||
| 01010-31225 | BOLT | 1160-1168 | ||
| 34 | 01602-01236 | WASHER | 726- | |
| 35 | 560-22-12380 | PIN | 1256- | |
| 560-22-11740 | PIN | 1193-1255 | ||
| 560-22-12380 | PIN | 1184-1192 | ||
| 565-50-11740 | PIN | 1169-1183 | ||
| 565-50-12380 | PIN | 1160-1168 | ||
| 565-50-11740 | PIN | 726-1159 | ||
| 36 | 07020-00900 | FITTING | 1256- | |
| 07020-00900 | FITTING | 1193-1255 | ||
| 07020-00900 | FITTING | 1184-1192 | ||
| 07020-00900 | FITTING | 1169-1183 | ||
| 07020-00900 | FITTING | 1160-1168 | ||
| 07020-00900 | FITTING | 726-1159 | ||
| 36A | 07020-00000 | FITTING | 1256- | |
| 07020-00000 | FITTING | 1184-1192 | ||
| 07020-00000 | FITTING | 1160-1168 |
