| Item | Part No. | Part Name | Qty | Serial No. |

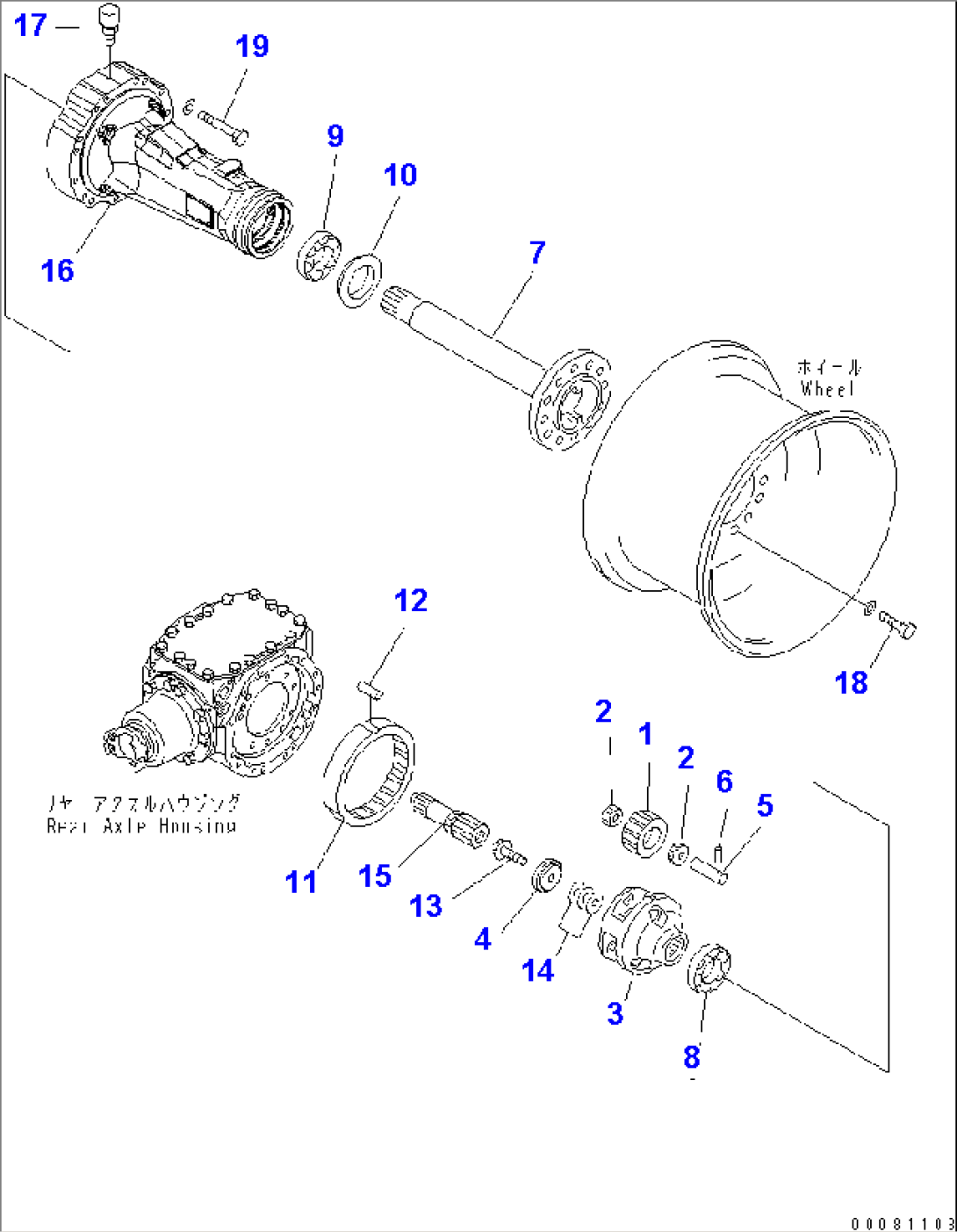

| AXLE ASS'Y,(SEE FIG. F4500-02A1) | A89001- | |||
| 418-23-32070 | FINAL ASS'Y,L.H. | A89001- | ||
| 1 | 418-22-22532 | GEAR | A89001- | |
| 2 | 417-22-22810 | BEARING,CONE | A89001- | |
| 3 | 418-23-32611 | CARRIER | A89001- | |
| 4 | 418-22-32810 | HOLDER | A89001- | |
| 5 | 419-22-12510 | SHAFT | A89001- | |
| 6 | 419-22-12570 | PIN | A89001- | |
| 7 | 418-23-32960 | SHAFT | A89001- | |
| 8 | 418-22-12840 | BEARING | A89001- | |
| 9 | 418-22-12850 | BEARING | A89001- | |
| 10 | 418-22-12460 | SEAL | A89001- | |
| 11 | 418-22-12541 | GEAR | A89001- | |
| 12 | 417-22-12580 | PIN | A89001- | |
| 13 | 01438-02000 | BOLT | A89001- | |
| 14 | 418-22-21460 | SHIM, 0.05MM | A89001- | |
| 418-22-21470 | SHIM, 0.2MM | A89001- | ||
| 418-22-21480 | SHIM, 0.5MM | A89001- | ||
| 15 | 418-22-32421 | SHAFT | A89001- | |
| 16 | 418-23-33810 | HOUSING,L.H. | A89001- | |
| 17 | 07030-01030 | BREATHER | A89001- | |
| 18 | BOLT,(SEE FIG. F4500-05A0) | A89001- | ||
| 19 | BOLT,(SEE FIG. F4500-04A0A) | A89001- |
