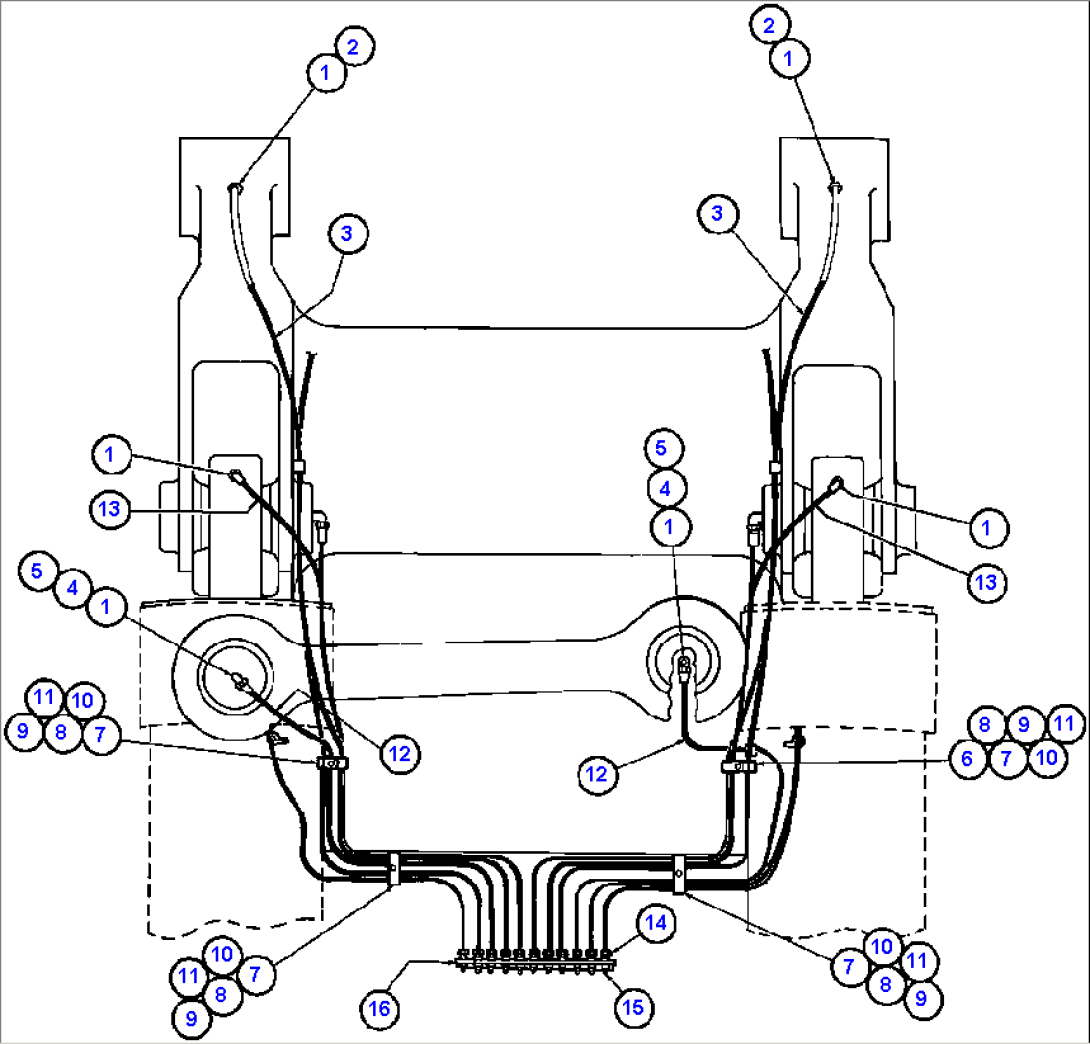

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WB0252 | FITTING, ELBOW - 90 DEG | ||
| 2 | HC1580 | BUSHING, PIPE (1/4" X 1/8") | ||
| 3 | VD4661 | HOSE | ||
| 4 | CD3705 | NIPPLE, LONG | ||
| 5 | C1231 | COUPLING | ||
| 6 | VN9907 | CLAMP | ||
| 7 | VC2195 | WELD STUD - 3/8" - 16NC X 1" | ||
| 8 | TR9441 | CLAMP | ||
| 9 | C1521 | NUT - 3/8" - 16NC | ||
| 10 | C0312 | LOCKWASHER - 3/8" | ||
| 11 | DF3042 | FLAT WASHER - 3/8" | ||
| 12 | HA1413 | HOSE | ||
| 13 | HA1416 | HOSE | ||
| 14 | WB0454 | ADAPTER, STRAIGHT | ||
| 15 | (SEE FIG 40702) | |||
| 16 | (SEE FIG 40702) | |||
| 16 | (SEE FOLLOWING PAGE FOR BALANCE OF PARTS.) |
