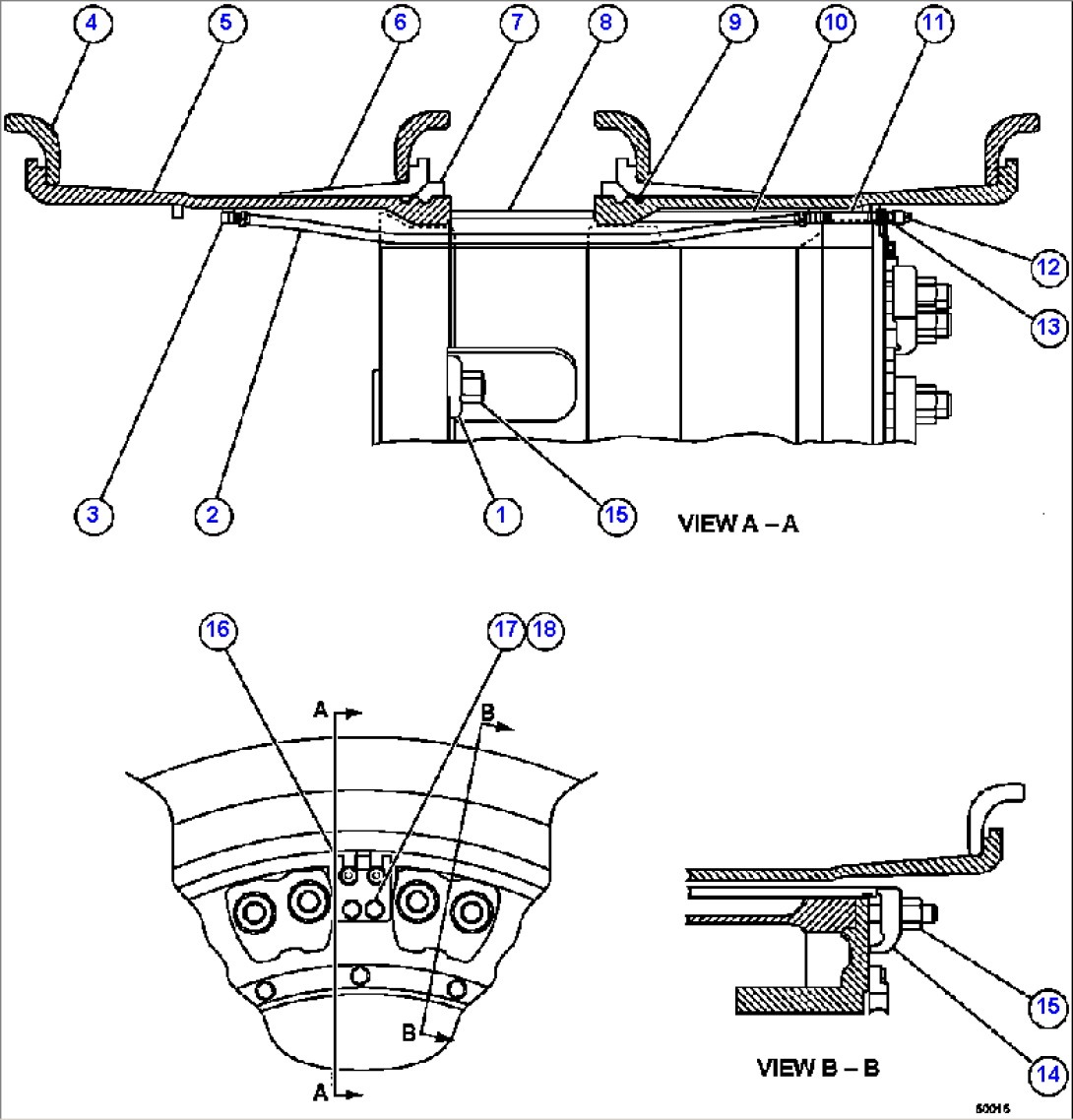

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-22-62830 | CLAMP | ||
| 2 | PB9874 | EXTENSION, HOSE | ||
| 3 | PB4443 | SPUD | ||
| 4 | AK7742 | RING, SIDE | ||
| 5 | EK8711 | BASE, RIM - 51 X 24 | ||
| 6 | AK8008 | BAND, BEAD SEAT | ||
| 7 | AK8012 | RING, LOCK | ||
| 8 | EF2247 | SPACER | ||
| 9 | TA2214 | O-RING | ||
| 10 | 562-30-32210 | RING | ||
| 11 | PB9927 | EXTENSION, HOSE | ||
| 12 | WA2670 | CAP, VALVE | ||
| 13 | VJ8012 | HOUSING, CORE | ||
| 14 | 561-22-62841 | CLAMP | ||
| 15 | 582-27-11291 | NUT - M30 X 3.00 | ||
| 16 | EG1600 | PLATE | ||
| 17 | 01010-81220 | CAPSCREW - M12 | ||
| 18 | 01643-31232 | FLAT WASHER - M12 | ||
| NS|19 | NOTE: NS = NOT SHOWN | |||
| NS|20 | PB8528 | CHOCK, WHEEL (1) | ||
| NS|21 | PB8529 | BRACKET, VEHICLE MOUNTING (1) | ||
| NS|22 | NOTE: (1) INCLUDED IN EC6889 WHEEL CHOCK | |||
| NS|23 | INSTALLATION OPTION. | |||
| NS|24 | (QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
