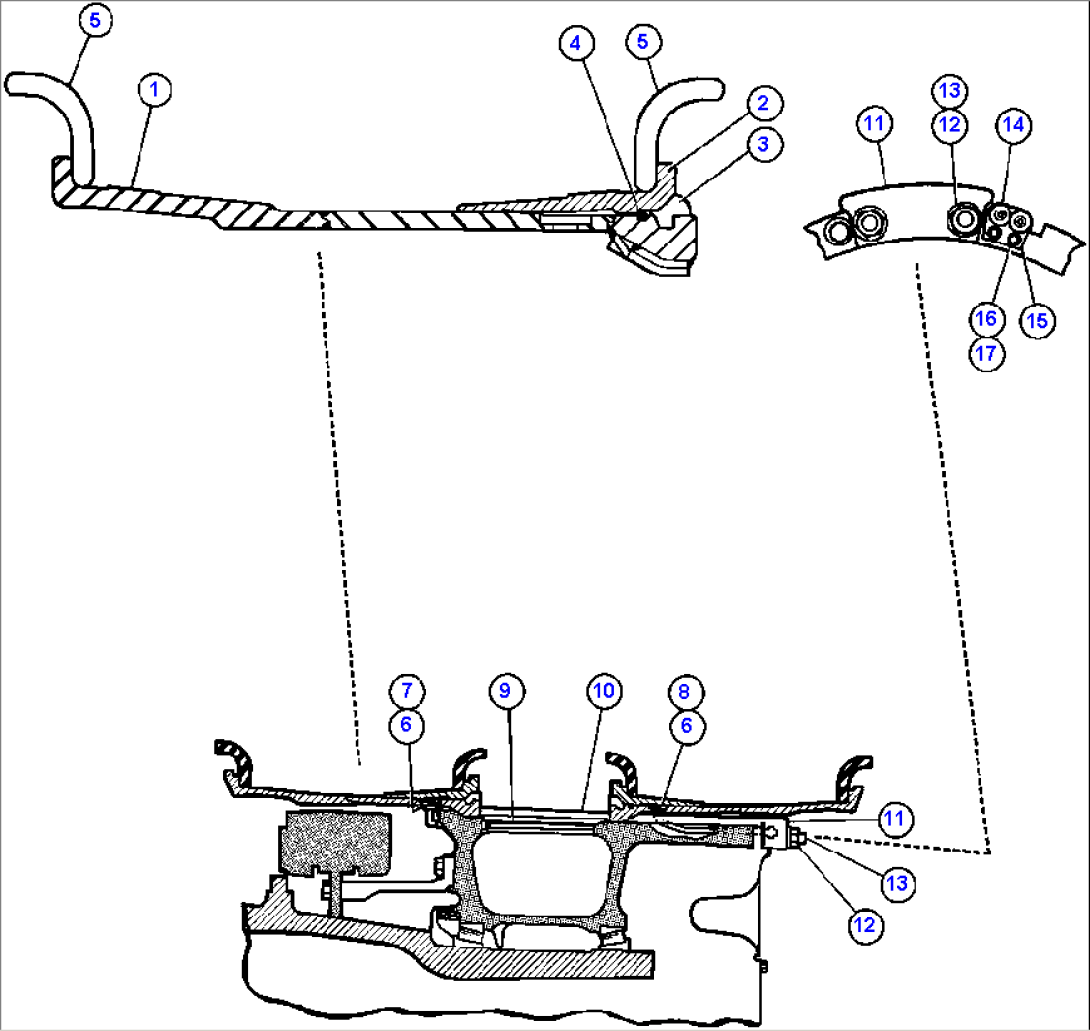

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PB6186 | RIM - 17" X 35" | ||
| 2 | VW3156 | RING, BEAD SEAT | ||
| 3 | VG9971 | LOCKRING | ||
| 4 | TL3769 | O-RING | ||
| 5 | VW1412 | RING, SIDE | ||
| 6 | WA0650 | SPUD | ||
| 7 | WA4634 | VALVE ASSM | ||
| 7 | SG3866 | CAP | ||
| 7 | SG3365 | CORE | ||
| 8 | PB6192 | VALVE ASSM | ||
| 8 | SG3866 | CAP | ||
| 8 | SG3365 | CORE | ||
| 9 | PB6191 | EXTENSION, VALVE | ||
| 10 | TX6556 | SPACER, RING | ||
| 11 | TX1236 | RETAINER | ||
| 12 | TW1745 | NUT, FLANGE - 7/8" - 14NF | ||
| 13 | TX4163 | STUD | ||
| 14 | SG0673 | GROMMET | ||
| 15 | TX4797 | PLATE | ||
| 16 | C1601 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 17 | C0312 | LOCKWASHER - 3/8" | ||
| NS|22 | NOTE: (QUANTITIES SHOWN ARE FOR ONE RIM ONLY) | |||
| NS|23 | (RIMS ARE NOT SOLD AS ASSEMBLIES. | |||
| NS|24 | ORDER COMPONENT PARTS.) |
