| Item | Part No. | Part Name | Qty | Serial No. |

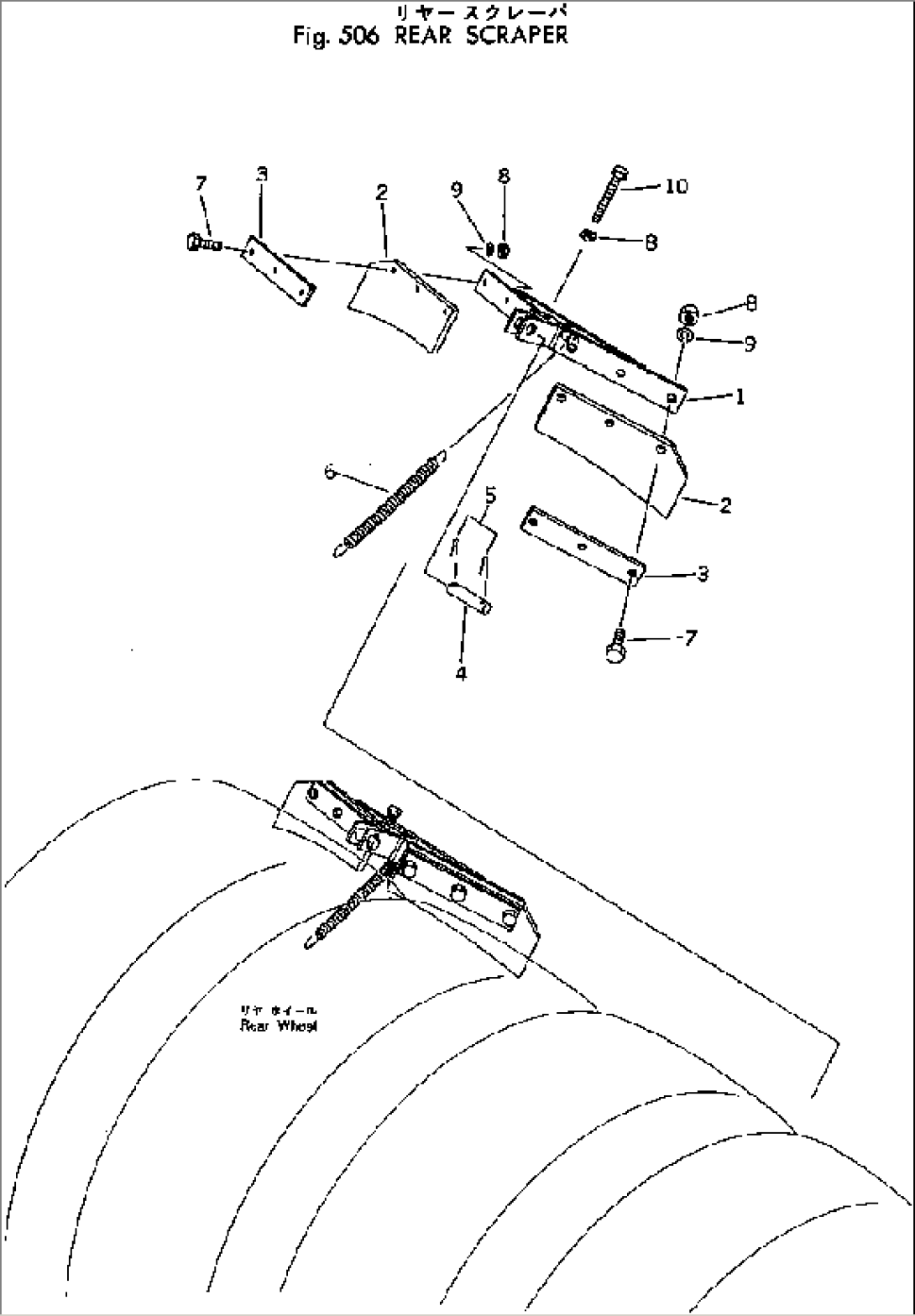

| 258-70-15000 | SCRAPER ASS'Y | 1001- | ||
| 1 | 258-70-15101 | BRACKET | 1516- | |
| 258-70-15100 | BRACKET | 1001-1515 | ||
| 2 | 258-70-15210 | SCRAPER | 1001- | |
| 3 | 258-70-15220 | PLATE | 1001- | |
| 4 | 258-70-15230 | PIN | 1001- | |
| 5 | 04050-14030 | PIN | 1001- | |
| 6 | 266-30-44110 | SPRING | 1001- | |
| 7 | 01010-31035 | BOLT | 1001- | |
| 8 | 01580-01008 | NUT | 1001- | |
| 9 | 01602-01030 | WASHER | 1001- | |
| 10 | 01016-31080 | BOLT | 1001- |
