| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-46-61781 | SUPPORT | 4001- | |
| 2 | 01010-82480 | BOLT | 4001- | |
| 3 | 01643-32460 | WASHER | 4001- | |
| 4 | 561-54-61390 | BRACKET | 4001- | |
| 5 | 01010-81460 | BOLT | 4001- | |
| 6 | 01643-31445 | WASHER | 4001- | |
| 7 | 07049-02734 | PLUG | 4001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 5 s/n 4001 up
- Main frame and related parts
- Rear support (1/2) (rops less)
Поиск по каталогу

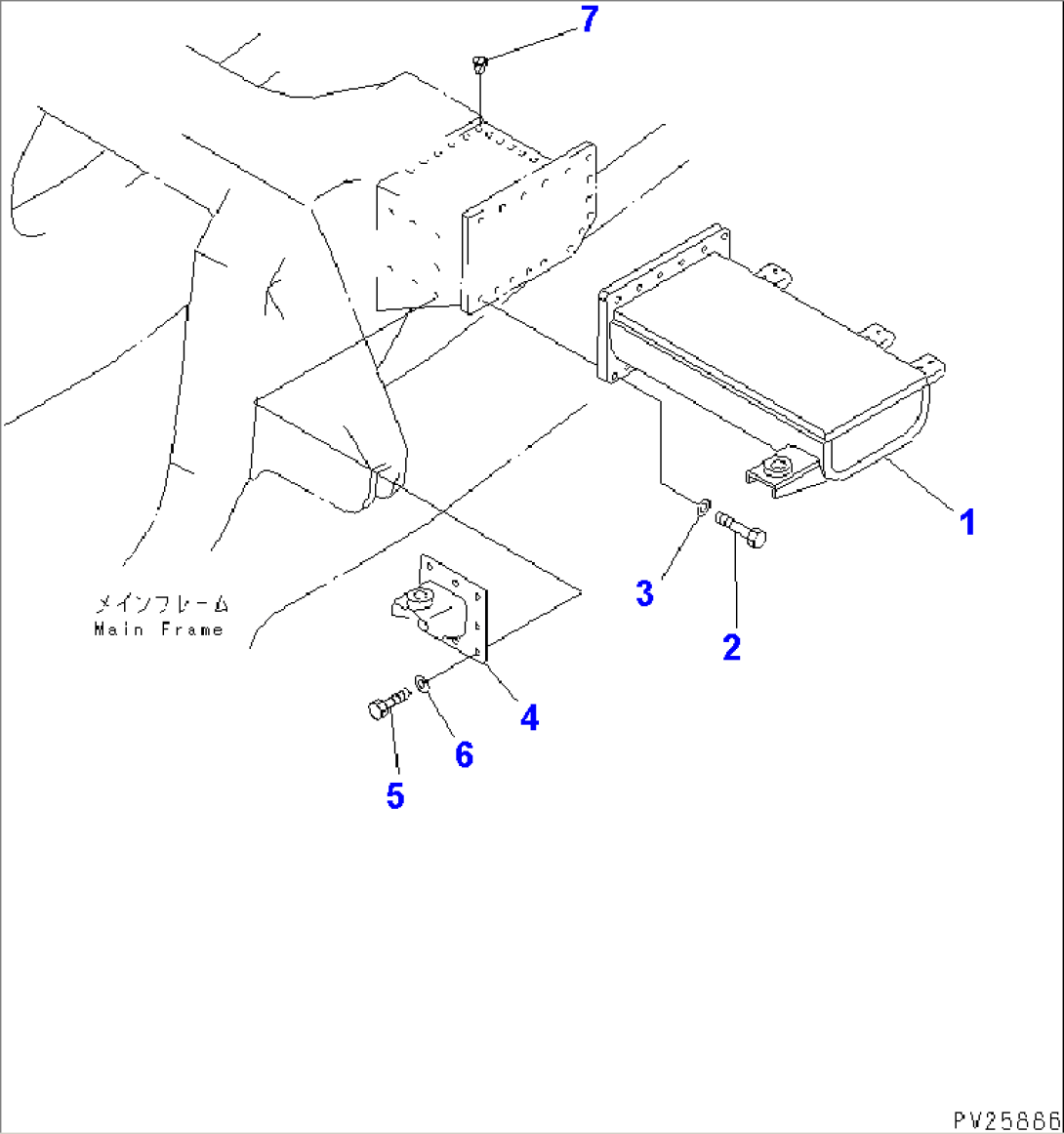

REAR SUPPORT (1/2) (ROPS LESS)
