| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-89-6A120 | SUPPORT | 1021- | |
| 2 | 01011-82400 | BOLT | 1021- | |
| 3 | 01643-32460 | WASHER | 1021- | |
| 4 | 561-54-61390 | BRACKET | 1021- | |
| 5 | 01010-81460 | BOLT | 1021- | |
| 6 | 01643-31445 | WASHER | 1021- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd985 5 s/n 1021 up
- Main frame and related parts
- Rear support (1/2) (with rops)
Поиск по каталогу

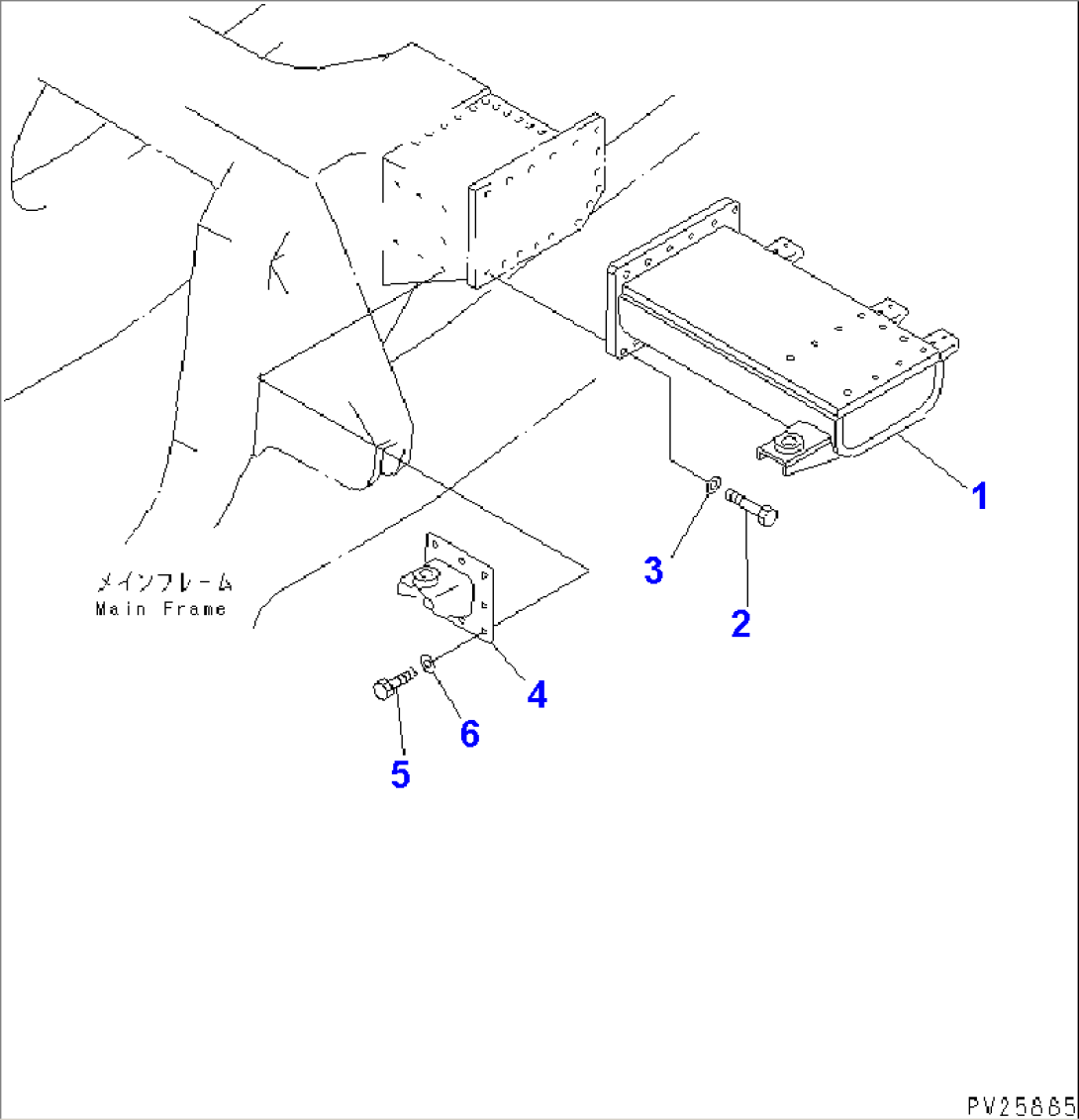

REAR SUPPORT (1/2) (WITH ROPS)
