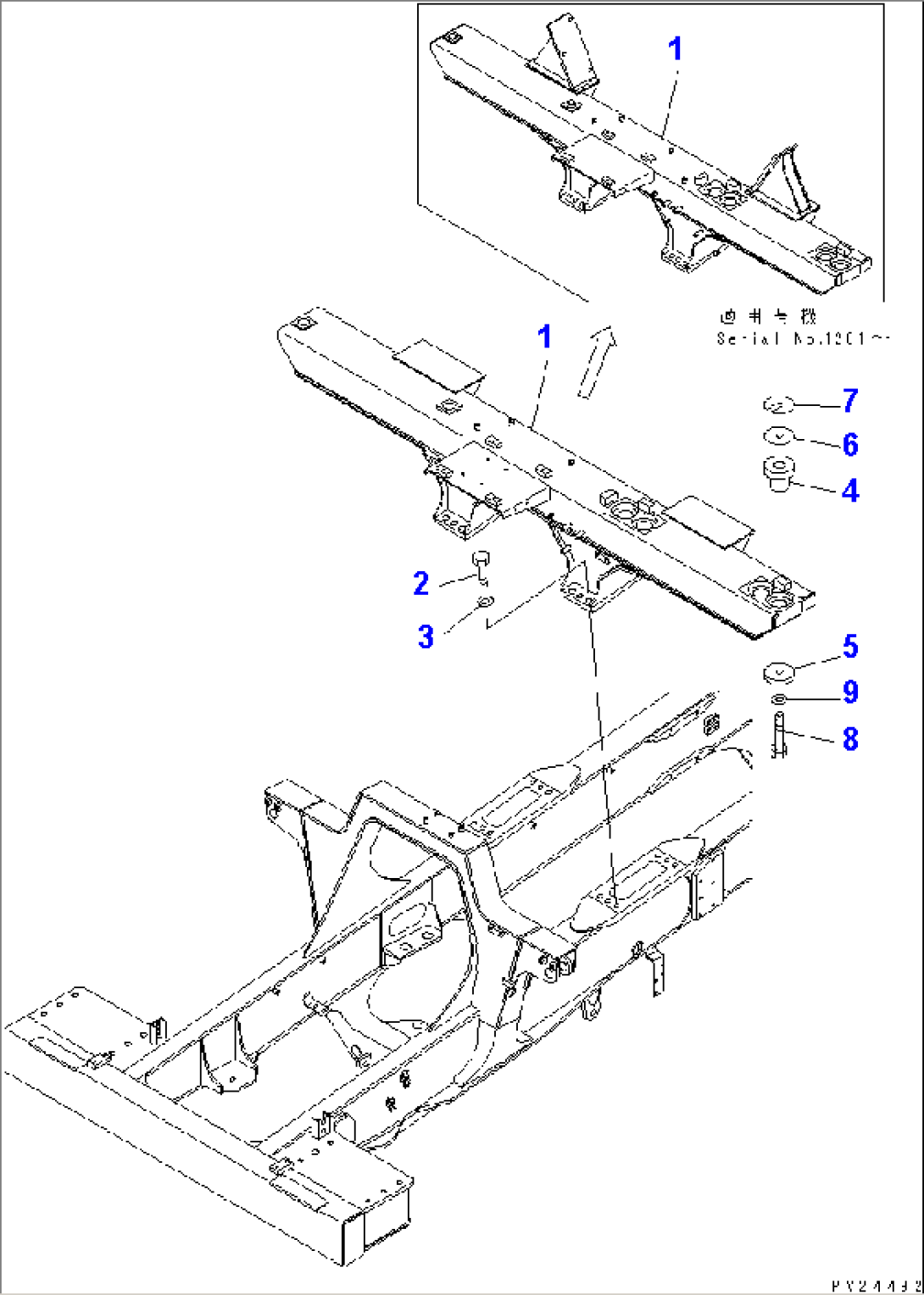

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-54-71402 | SUPPORT,REAR | 1601- | |
| 567-54-71401 | SUPPORT,REAR | 1201-1600 | ||
| 567-54-71451 | SUPPORT,REAR | 1001-1200 | ||
| 567-85-71131 | SUPPORT,REAR (FOR SIDE LAMP) | 1201-1600 | ||
| 567-85-71130 | SUPPORT,REAR (FOR SIDE LAMP) | 1001-1200 | ||
| 2 | 01010-82470 | BOLT | 1001- | |
| 3 | 20Y-09-11150 | SPACER | 1001- | |
| 4 | 287-01-18330 | CUSHION | 1001- | |
| 5 | 567-54-72830 | PLATE | 1001- | |
| 6 | 567-54-72840 | SHIM | 1001- | |
| 7 | 567-54-72850 | SHIM | 1001- | |
| 8 | 01011-82460 | BOLT | 1031- | |
| 01011-82450 | BOLT | 1001-1030 | ||
| 9 | 01643-32460 | WASHER | 1001- |
