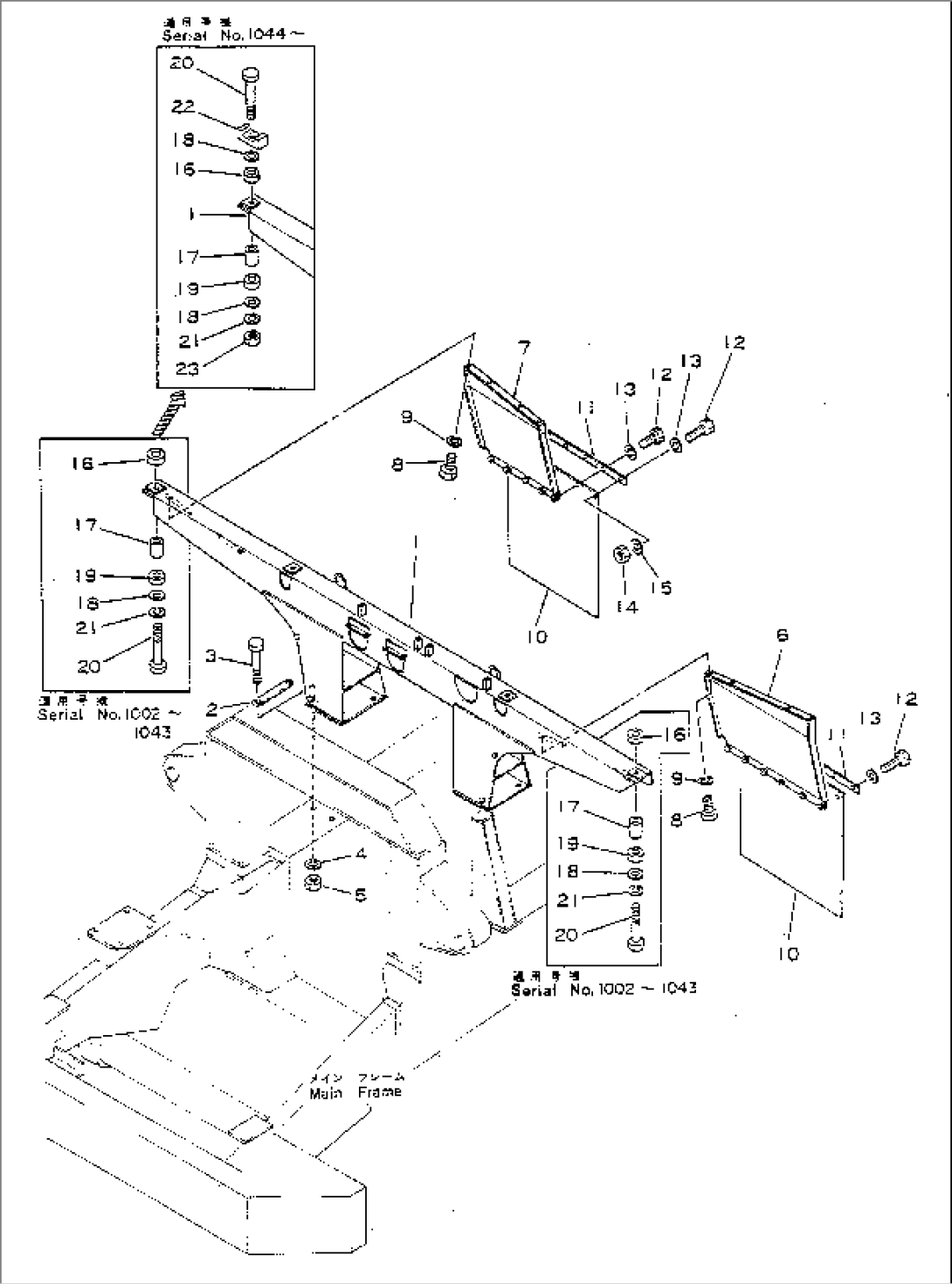

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-54-12152 | SUPPORT | 1044- | |
| 1 | 568-54-12151 | SUPPORT | 1002-1043 | |
| 2 | 568-54-12130 | SEAT | 1002- | |
| 3 | 01010-52490 | BOLT | 1002- | |
| 4 | 01602-22472 | WASHER | 1002- | |
| 5 | 01580-22419 | NUT | 1002- | |
| 6 | 568-54-12551 | GUARD | 1002- | |
| 7 | 568-54-12561 | GUARD | 1002- | |
| 8 | 01010-51230 | BOLT | 1002- | |
| 9 | 01602-21236 | WASHER | 1002- | |
| 10 | 565-74-12411 | GUARD | 1002- | |
| 11 | 565-74-12420 | PLATE | 1002- | |
| 12 | 01010-51030 | BOLT | 1002- | |
| 13 | 01602-21030 | WASHER | 1002- | |
| 14 | 01580-11008 | NUT | 1002- | |
| 15 | 01643-21032 | WASHER | 1002- | |
| 16 | 566-54-12211 | CUSHION | 1044- | |
| 16 | 565-54-12820 | CUSHION | 1002-1043 | |
| 17 | 566-54-21910 | BUSHING | 1044- | |
| 17 | 565-54-12830 | COLLAR | 1002-1043 | |
| 18 | 566-54-21920 | PLATE | 1044- | |
| 18 | 565-54-12840 | PLATE | 1002-1043 | |
| 19 | 566-54-12211 | CUSHION | 1044- | |
| 19 | 565-54-12810 | CUSHION | 1002-1043 | |
| 20 | 01011-82020 | BOLT | 1055- | |
| 20 | 01011-82030 | BOLT | 1044-1054 | |
| 20 | 01010-51695 | BOLT | 1002-1043 | |
| 21 | 01602-22060 | WASHER | 1044- | |
| 21 | 01602-21648 | WASHER | 1002-1043 | |
| 22 | 566-54-21930 | PLATE | 1044- | |
| 23 | 01580-12016 | NUT | 1044- |
