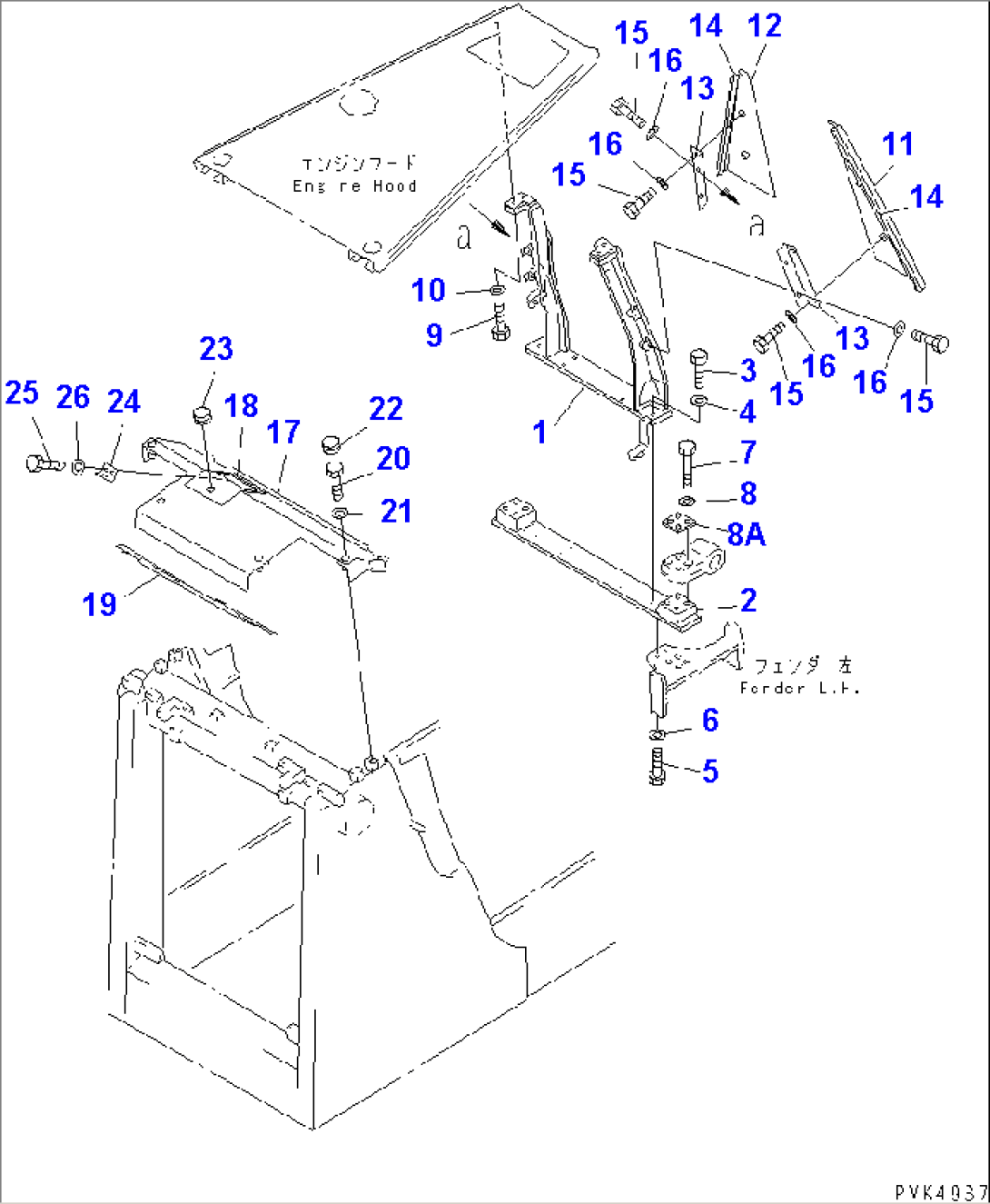

| Item | Part No. | Part Name | Qty | Serial No. |
| 14X-54-12161 | BRACKET ASS'Y | 3034-4000 | ||
| 1 | 14X-54-12183 | BRACKET | 3034-4000 | |
| 2 | 14X-54-12190 | PLATE | 3034-4000 | |
| 3 | 01010-81230 | BOLT | 3034-@ | |
| 4 | 01643-31232 | WASHER | 3034-@ | |
| 5 | 01010-81250 | BOLT | 3034-4000 | |
| 6 | 01643-31232 | WASHER | 3034-@ | |
| 7 | 01011-82040 | BOLT | 3034-4000 | |
| 8 | 01643-32060 | WASHER | 3034-@ | |
| 8A | 14X-54-17160 | PLATE | 3034-@ | |
| 9 | 01010-81255 | BOLT | 3034-@ | |
| 10 | 01643-31232 | WASHER | 3034-@ | |
| 11 | 14X-54-12223 | COVER,L.H. | 3034-@ | |
| 12 | 14X-54-12233 | COVER,R.H. | 3034-@ | |
| 13 | 14X-54-12252 | PLATE | 3102-@ | |
| 13 | \0\14X-54-12251 | PLATE | 3034-3101 | |
| 14 | 14X-54-12940 | SEAL | 3034-@ | |
| 15 | 01010-81220 | BOLT | 3034-@ | |
| 16 | 01643-31232 | WASHER | 3034-@ | |
| 17 | 14X-54-12143 | COVER | 3034-@ | |
| 18 | 14X-54-12910 | LOCK (WELDED) | 3034-@ | |
| 19 | 14X-54-12680 | BAFFLE (WELDED) | 3034-@ | |
| 20 | 01010-81245 | BOLT | 3034-@ | |
| 21 | 01643-31232 | WASHER | 3034-@ | |
| 22 | 09415-02512 | CAP | 3034-@ | |
| 23 | 09415-00506 | CAP | 3034-@ | |
| 24 | 14X-54-12150 | PLATE | 3034-@ | |
| 25 | 01010-81020 | BOLT | 3034-@ | |
| 26 | 01643-31032 | WASHER | 3034-@ |
